GE Monogram ZGU375NS Installation Instructions Manual
36" stainless steel gas cooktops natural and lp gas model
Hide thumbs
Also See for Monogram ZGU375NS:
- Technical service manual (32 pages) ,
- Owner's manual (20 pages) ,
- Installation instructions manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for GE Monogram ZGU375NS
Summary of Contents for GE Monogram ZGU375NS
-
Page 1: Gas Cooktops

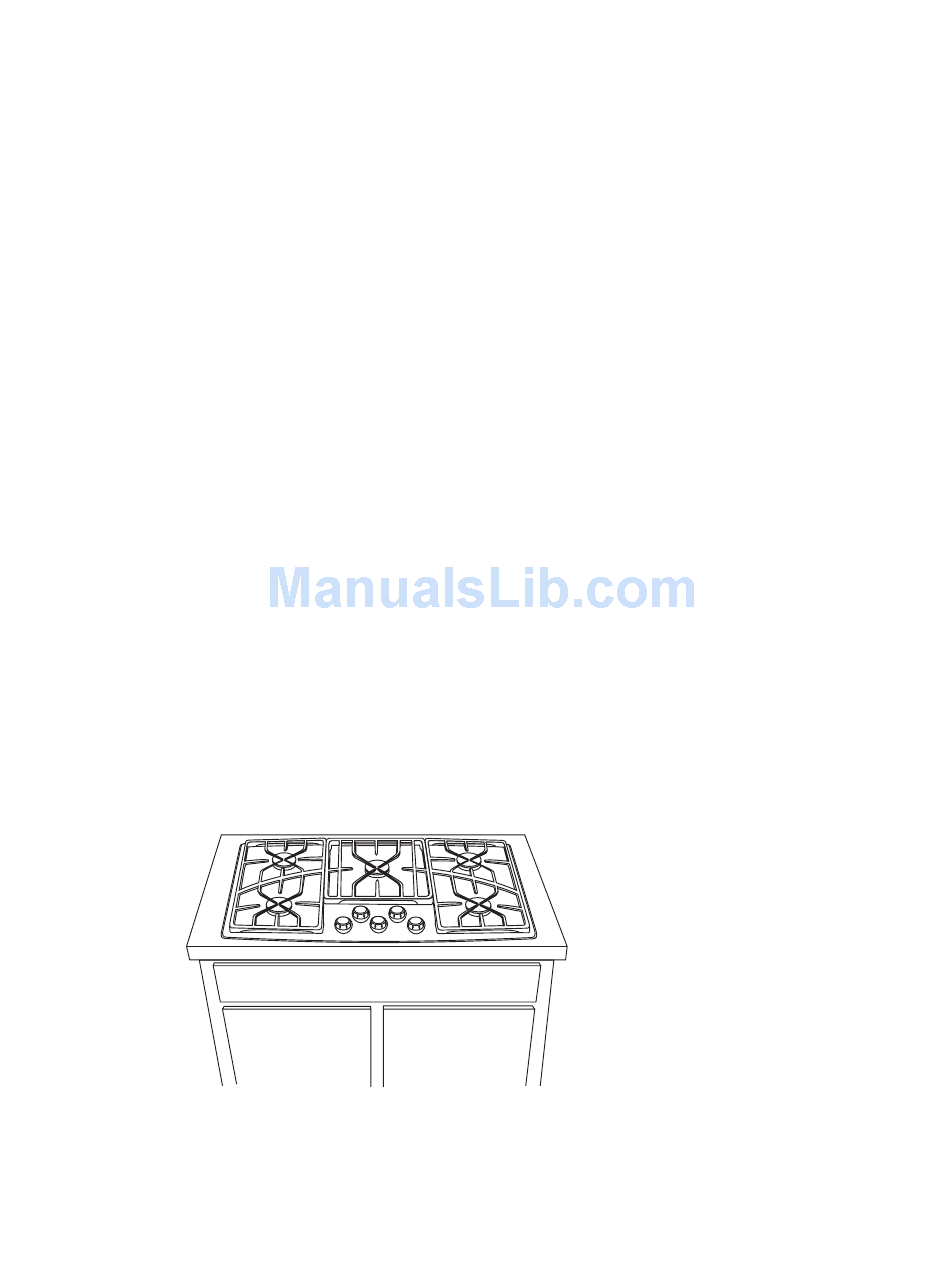

® GE Monogram Installation Instructions 36" Stainless Steel Gas Cooktops Natural Gas Model ZGU375NS LP Gas Model ZGU375LS... -
Page 2: Table Of Contents
ATTENTION électrique >> à la page 6. If you have a question concerning the installa- Proper installation is the responsibility of the tion of this product, call the GE Answer installer. Product failure due to improper ® Center Consumer Information Service at installation is not covered under the GE 800.626.2000, 24 hours a day, 7 days a week. -
Page 3: Design Information
Design Information Stainless Steel G a s Cooktop ZGU375NS 36" natural gas cooktop ZGU375LS 36" LP gas cooktop For those who prefer gas heat for cooking, the Monogram built-in gas stainless steel cooktop offers the cooking method of choice. These models are factory set for either natural gas or LP gas operation. -
Page 4: Advance Planning Installation Options
Design Information Stainless Steel G a s Cooktop Cooktop and ZVB36 Downdraft Vent Cooktop and ZTD910 Warming Drawer Advance Combination Installation. See page 9. Combination Installation. See page 10. planning These cooktops may be installed with a 36" These cooktops may be installed over a Monogram Downdraft Vent, models ZVB36. -
Page 5: Installation Preparation
Installation Preparation Stainless Steel G a s Cooktop Cut the 7-9/16" Min. Opening Cutout 7-9/16" Min. To Side to Side Wall Wall 35-5/16" 3-3/8" Min. 18-7/8" to Rear Vertical Combustibles 2-3/4" Min. From Note: Cutout Front of dimensions have a Countertop tolerance of plus or minus 1/8";... -
Page 6: Power Supply Locations
Installation Preparation Stainless Steel G a s Cooktop Gas supply: Power supply These cooktops are designed to operate on locations natural gas at 4" of water column pressure or 16" on LP gas at 10" of water column pressure. 7" –These cooktops are shipped from the factory set for either natural gas or LP gas. -
Page 7: Installation
Installation Stainless Steel G a s Cooktop Cooktop • Remove packaging from the cooktop. Step Countertop • Position the cooktop over the opening, making sure that the power cord is dropped 1" Min. into the cabinet. Install • Lower the cooktop into the cutout, pressing Note: Countertop gently and evenly to seat. -
Page 8: Connect Electrical
Installation Stainless Steel G a s Cooktop • Check to be sure the receptacle is properly wired by checking for proper polarity and Step grounding. • Plug in power cord. Connect electrical • Remove tape on burners. • Check for proper ignition: Step •... -
Page 9: Installation Option
Installation Options Installation With Downdraft Vent Stainless Steel G a s Cooktop Cooktop Installation with a 36" Monogram Countertop Requirements: Downdraft Vent, models ZVB36. The countertop must have a deep flat surface The installation of the downdraft vent with to accommodate the cooktop and vent. this cooktop requires careful consideration. -
Page 10: Installation With Warming Drawer
Installation Options Installation With Warming Drawer Stainless Steel G a s Cooktop Cooktop Installation Over a 30" Monogram –Allow 2" clearance between the cooktop Warming Drawer, models ZTD910. bottom and the top of the cutout, or 7-1/2" These cooktops may be installed over a 30" from the top of the countertop as illustrated. -
Page 11: Installation With Single Oven
Installation Options Installation With Single Oven Stainless Steel G a s Cooktop Cooktop Installation Over a 30" Monogram Power Supply: Single Oven, models ZET837. The oven requires a separate, properly These cooktops may be installed over the grounded 30 Amp, 3-wire 120/208 or ZET837 single oven. - Page 12 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. To obtain specific information concerning any ® Monogram product or service, call GE Answer Center consumer information service at 800.626.2000—any time, day or night. For Monogram local service in your area, call 1-800-444-1845.
