Compex READYLINK SDS1224 Quick Install Manual

Quick Install Guide
Kurzinstallationsanleitung
Руководство по установке
Compex 24-Port
Fast Ethernet Switch
SDS1224
Ordering Information: SDS1224 1a
Bestellinformationen: SDS1224 1a
Информация для заказа: SDS1224 1a
Version 1.1
English
1.

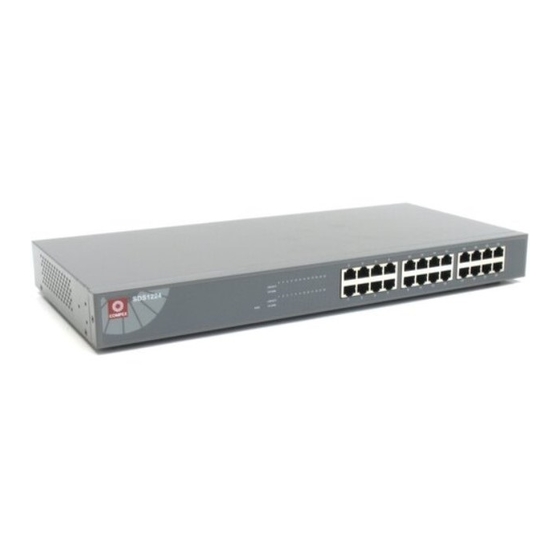

Figure 1 Compex SDS1224
Compex SDS1224 is a 24-port 10/100 Base-TX switch used for high-
performance switched workgroup networks. This switch is a store-and-
forward device that offers low latency for high speed networking. This
feature allows the switch to auto-learn and store address on its 4K-entry MAC
address table.
Compex SDS1224 is suitable for SME ( small, medium enterprise ) business
workgroup, department or backbone computing environments.
2. Packaging Content
The Compex SDS1224 retail package contains the following items to start
you off:
• 1 x Compex SDS1224
• 4 x Rubber Foot
• 1 x Power Cord
• Rack Mount Kit ( which contains 2 brackets and 8 screws )
• Quick Install Guide with Registration Warranty Card
3. Network Application
Only a few simple steps are required to set up the Compex SDS1224 to
illustrate how the switch is used for small workgroup and enterprise networks.
Example A: Small Workgroup Application
Example B: Department Bridge Application
Figure 2 Setting up Compex SDS1224
Introduction
