Vertical placement/positioning
• Patch codes must appear at least 0.25 inches
(6 mm) from the right, left, and leading edges of
the document.
• Patch codes must appear no more than 3.75
inches (94 mm) from the leading edge of the
document [1.6 inches (40 mm) on the 5XYZ and
7XYZ Scanners].
Refer to Figure B.
A
B
Patch Area

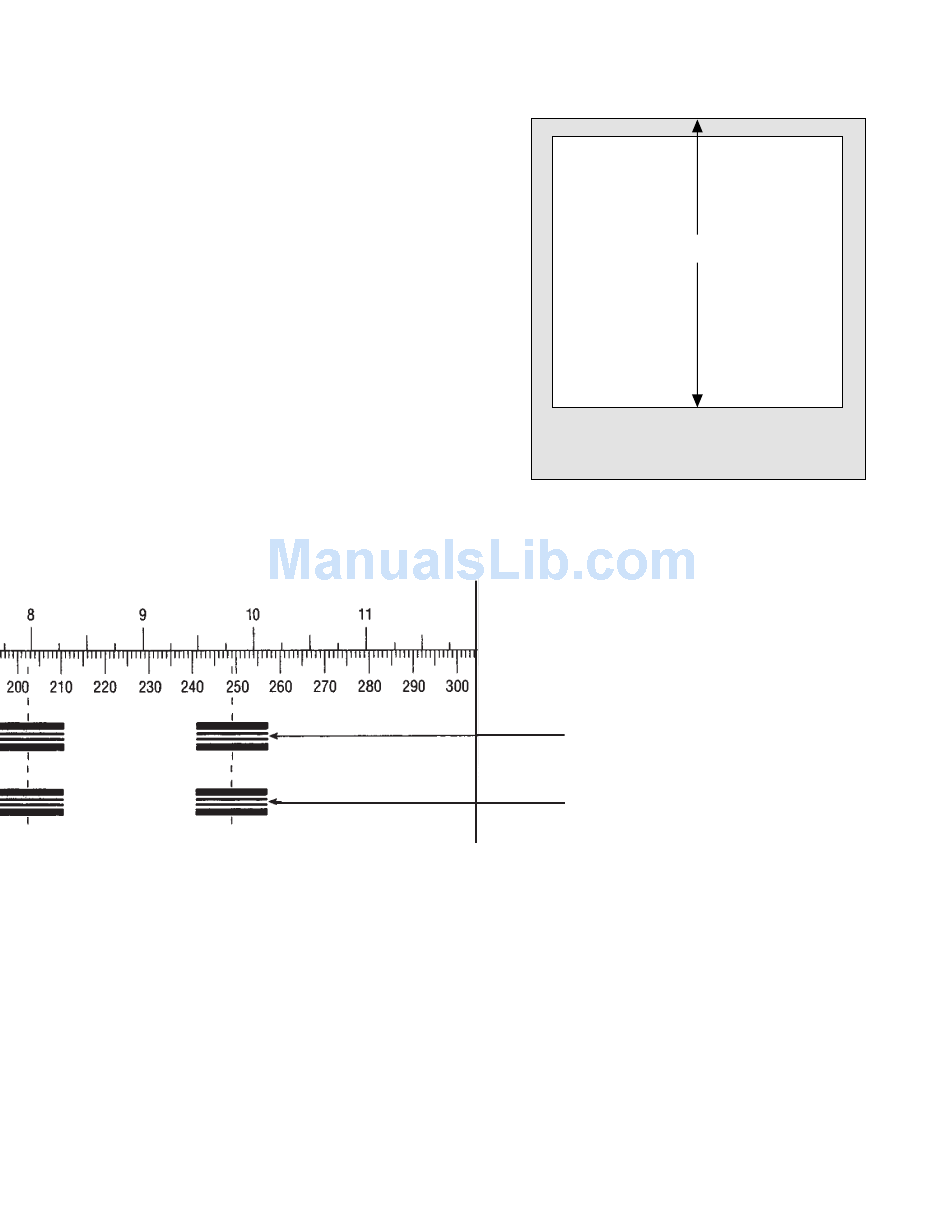

Figure B
Patch Reader Positions
for 9XYZ, 5XYZ, 7XYZ,
i800 Series Scanners
and 70 Microimager
Patch Reader Positions
for i1800 Series Scanners
(with image addressing)
Leading Edge of Document
(fed into transport first)
3.75 inches (94 mm)
A, B, and C = 0.25 inches (6 mm)
C
