7.

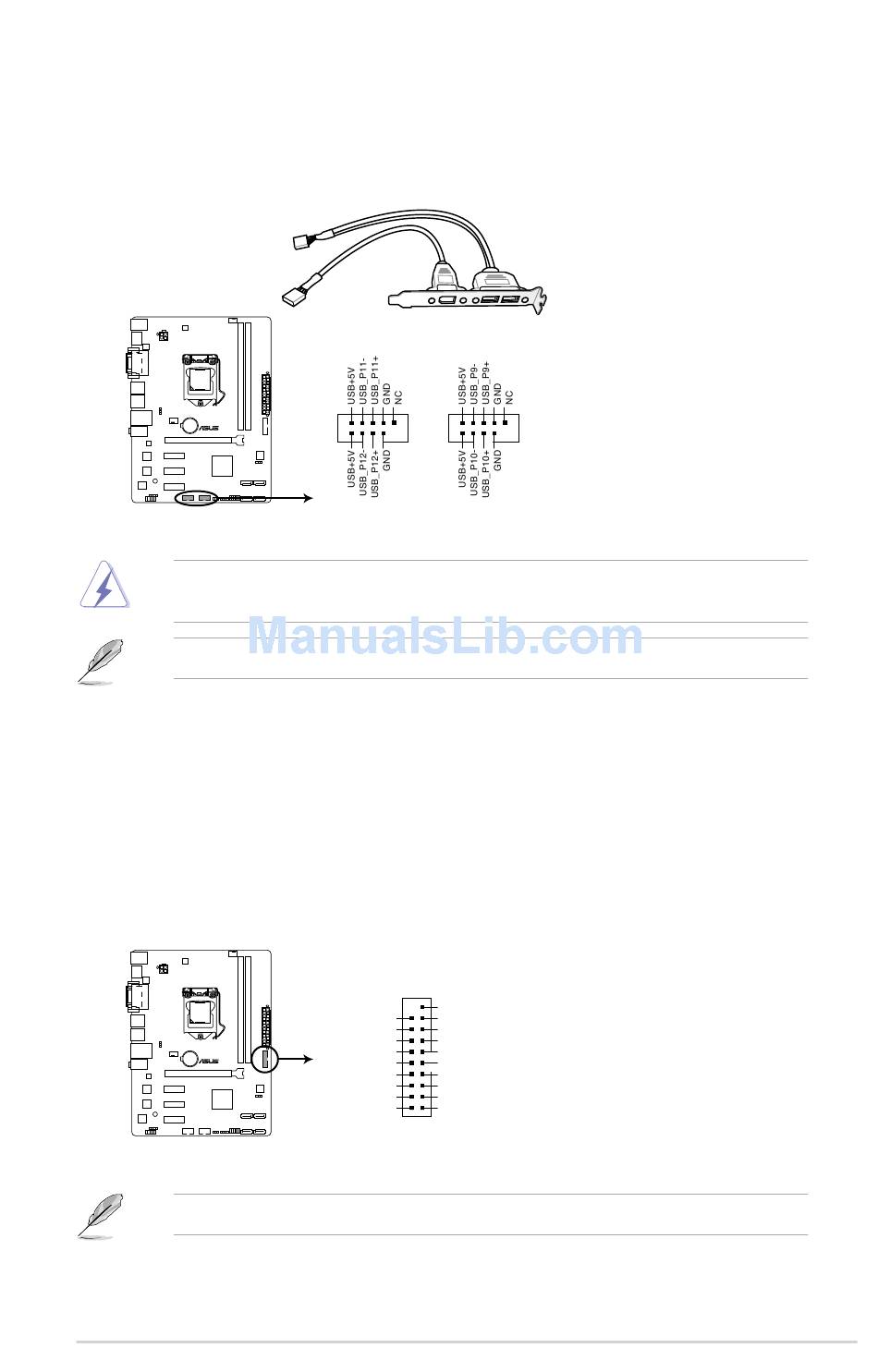

USB 2.0 connectors (10-1 pin USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specifications and supports up to
480Mbps connection speed.
H81M-PLUS
H81M-PLUS USB2.0 connectors
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
8.
USB 3.0 connector (20-1 pin USB3_12)
This connector allows you to connect a USB 3.0 module for additional USB 3.0 front
or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of
USB 3.0 including faster data transfer speeds of up to 5Gbps, faster charging time for
USB-chargeable devices, optimized power efficiency, and backward compatibility with
USB 2.0.
H81M-PLUS
H81M-PLUS USB3.0 Front panel connector
The USB 3.0 module is purchased separately.
ASUS H81M-PLUS
USB1112
USB910
PIN 1
PIN 1
USB3_12
PIN 1
USB3+5V
USB3+5v
IntA_P1_SSRX-
IntA_P2_SSRX-
IntA_P1_SSRX+
IntA_P2_SSRX+
GND
GND
IntA_P1_SSTX-
IntA_P2_SSTX-
IntA_P1_SSTX+
IntA_P2_SSTX+
GND
GND
IntA_P1_D-
IntA_P2_D-
IntA_P1_D+
IntA_P2_D+
GND
1-17
