5.
Intel
H81 Serial ATA 3.0Gb/s connector (7-pin SATA3G_1~2)
®
This connector connects to Serial ATA 3.0 Gb/s hard disk drives via Serial ATA 3.0 Gb/s
signal cables.

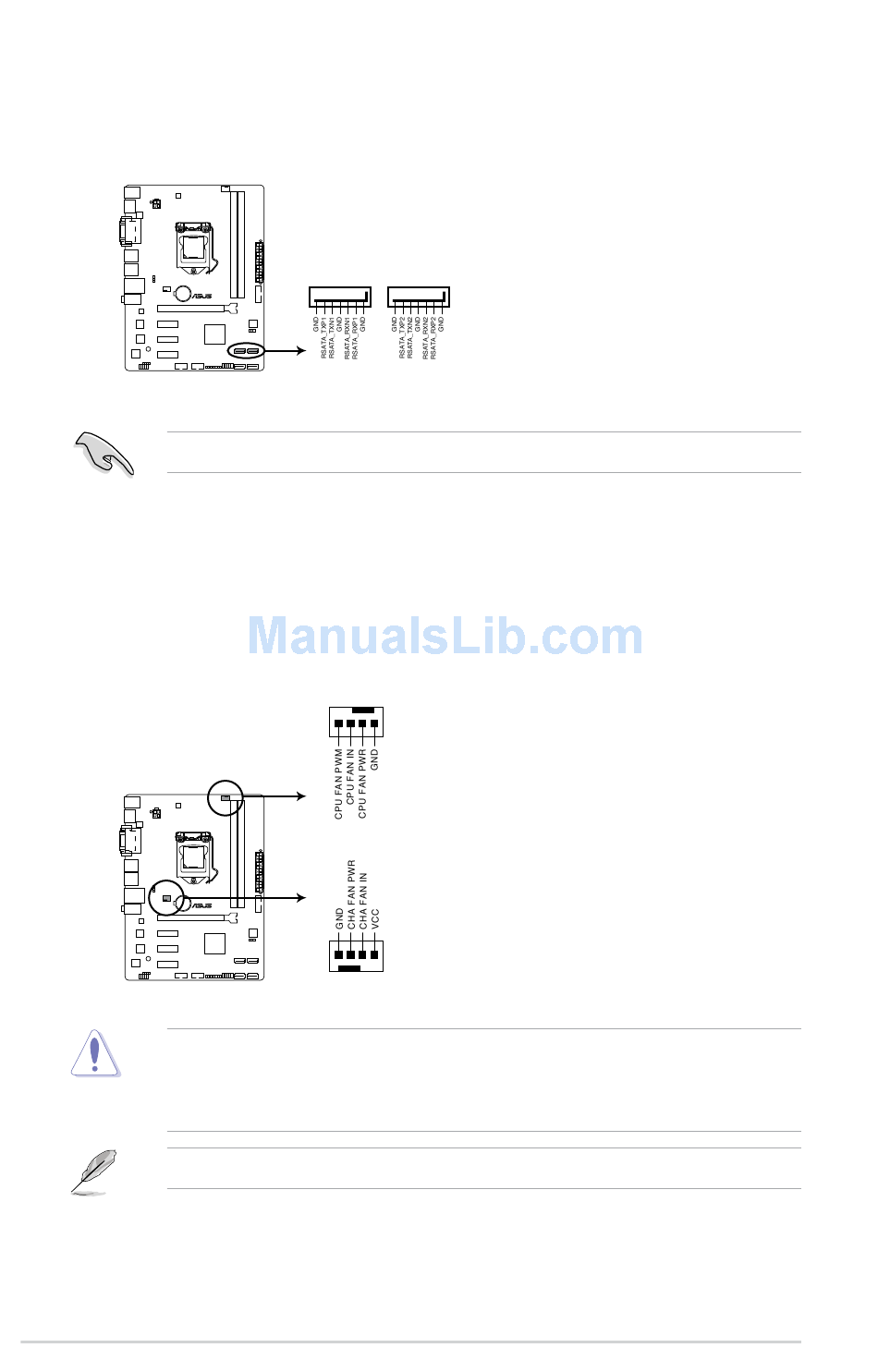

H81M-PLUS SATA 3.0Gb/s connectors
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
6.
CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
H81M-PLUS Fan connectors
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside
the system may damage the motherboard components. These are not jumpers! Do not
place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of
maximum 1A (12 W) fan power.
Only the 4-pin CPU fan support the ASUS Fan Xpert feature.
1-16
SATA3G_1
H81M-PLUS
CPU_FAN
CHA_FAN
H81M-PLUS
SATA3G_2
Chapter 1: Product introduction
