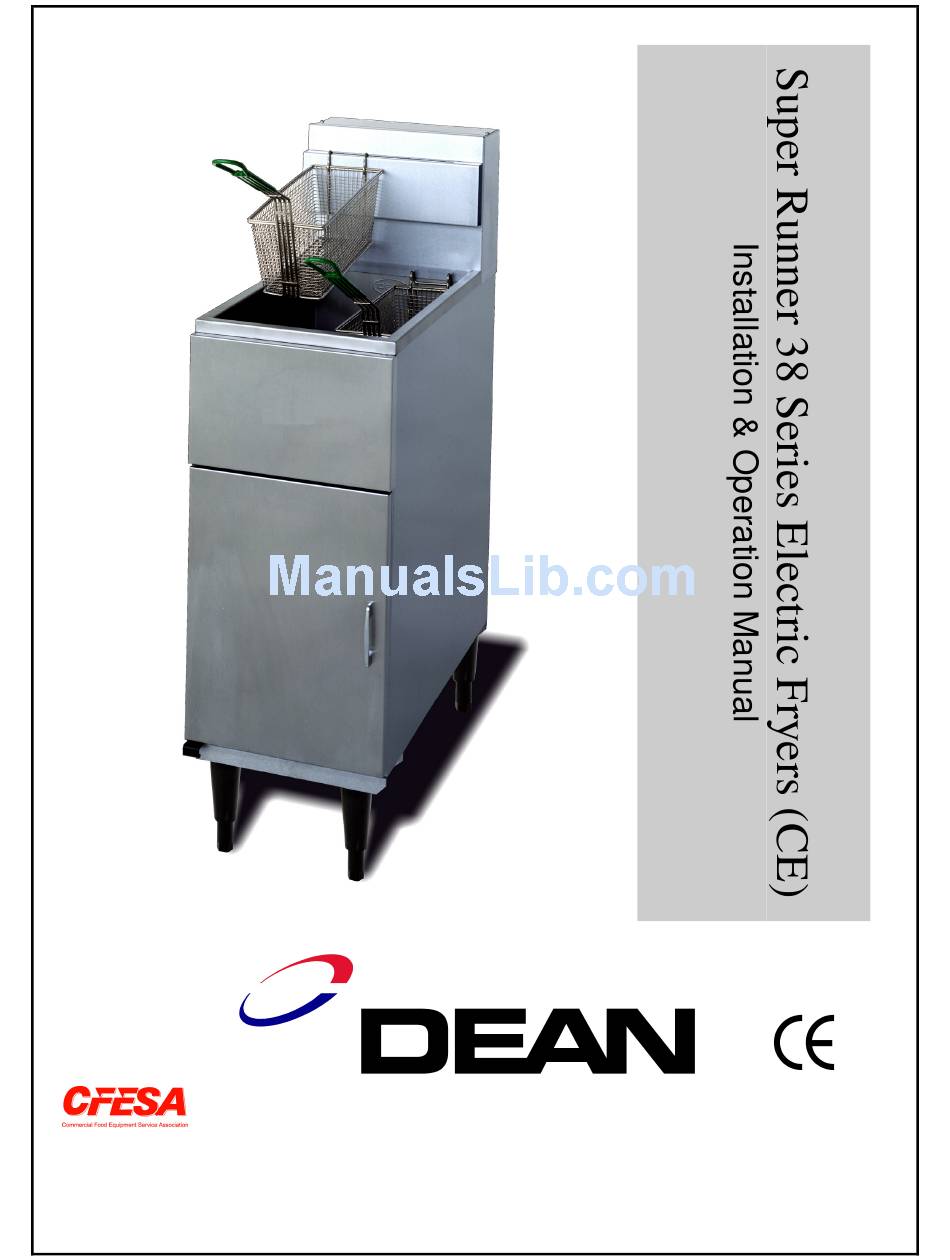

- Page 1 CE ONLY Dean, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. Price: $6.00 24-Hour Service Hotline 1-800-551-8633 819-5709 04-99...
- Page 2 PLEASE READ ALL SECTIONS OF THIS MANUAL AND RETAIN FOR THIS PRODUCT HAS BEEN CERTIFIED AS COMMERCIAL COOKING EQUIPMENT AND MUST BE INSTALLED BY PROFESSIONAL PERSONNEL AS SPECIFIED. WE SUGGEST INSTALLATION, MAINTENANCE AND REPAIRS SHOULD BE PERFORMED BY YOUR LOCAL DEAN FACTORY AUTHORIZED SERVICE AGENCY.
-
Page 3: Table Of Contents

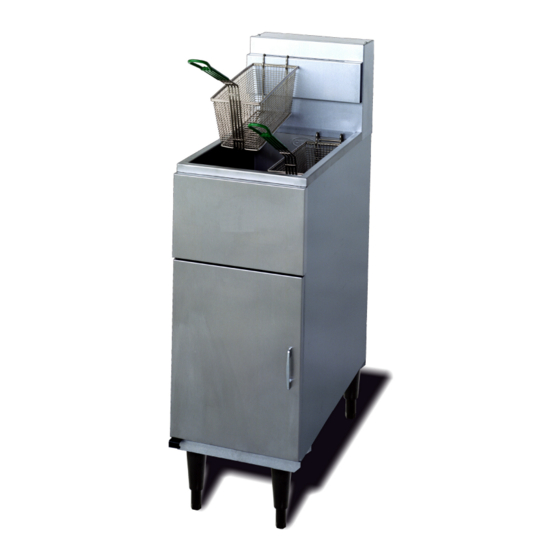

SUPER RUNNER 38 ELECTRIC FRYER INSTALLATION, OPERATION, SERVICE & PARTS MANUAL PARTS ORDERING/SERVICE INFORMATION IMPORTANT INFORMATION INSTALLATION DAILY OPERATION CLEANING AND MAINTENANCE TROUBLESHOOTING WIRING DIAGRAM PARTS LIST PORTABLE FILTER OPERATIONS 1. PARTS ORDERING AND SERVICE INFORMATION 1.1 ORDERING PARTS: Customers may order parts directly from their local Authorized Parts Distributor. -
Page 4: Important Information
AUTOMATIC SAFETY FEATURE: High temperature detection to shut-off electric heater elements should the controlling thermostat fail. application THE FRYER MUST BE CONNECTED ONLY TO THE TYPE OF ELECTRICAL SERVICE IDENTIFIED ON THE ATTACHED RATING PLATE. 2.3 PRE-INSTALLATION: Drain... - Page 5 European Community standards. 2.4 AIR SUPPLY & VENTILATION: a. The area around the fryer must be kept clear to prevent any obstruction to ventilation air flow as well as for service and maintenance. Never use the interior of the fryer’ s cabinet for storage.
-
Page 6: Installation
3.2 LEG AND CASTER INSTALLATION: a. General: 1. Install legs and casters (optional) near where the fryer is to be used, as neither are secure for long transit. Unit cannot be curb mounted and must be equipped with the legs (or legs and optional rigid casters) provided. - Page 7 THE OPERATOR. 3.3 LEVELING: a. Place a carpenter’ s spirit level across the top of the fryer and level the unit both front-to-back and side-to-side. If the fryer is not level, the unit may not function efficiently, the oil may not...
- Page 8 Do not rely on adjustments. e. If the fryer is moved, re-level the fryer following the instructions given in Steps 3.3.a-c. f. This fryer must be restrained to prevent tipping when installed in order to avoid the splashing of hot liquid.
- Page 9 This is unsafe, inefficient, and dangerous. c. When the fryer vessel is filled and the d. Before starting operation, turn the Power Switch 4. When the water starts to boil, turn the dial to below 99°C/210°F.
-
Page 10: Daily Operation
WARNING! FRYER DAMAGE (350°F) is recommended for most cooking operations, set the fryer at the lowest possible temperature which produces a high quality end product while ensuring maximum life of frying compound. THIS product, frying... - Page 11 When the fryer is not in use, the thermostat should be set lower than that used during cooking. 4.3 TURN ON PROCEDURES: a. If fryer is empty, pour enough frying compound into the vessel to fill the vessel to the "oil level” line scribed on the rear wall.
-
Page 12: Cleaning And Maintenance
Any piece of equipment works better and lasts longer when maintained properly and kept clean. Cooking equipment is no exception. The fryer must be kept clean during the working day and thoroughly cleaned at the end of each day. 5.2 DAILY: Wash all removable parts. - Page 13 5.6 STAINLESS STEEL: steel fryer body parts should be wiped regularly with hot, soapy water during the day and with a liquid cleaner designed for this material at the end of each day.
-
Page 14: Troubleshooting Guide
3. Wait at least 30 minutes for the oil temperature to stabilize. 4. If temperature is not within +/- 5°C (10°F) of the dial setting, call service for a new operating thermostat/temperature controller. High Limit Reset Switch Drain Sensing Bulb in Valve Fryer Vessel Figure 6-2... -
Page 15: Wiring Diagram
7. WIRING DIAGRAM Wiring Diagram SR38E Fryer Electric Fryer 230/400V 24V Contactors P/N 12-0403 March 10, 1999... - Page 16 8. SUPER RUNNER 38 ELECTRIC (CE) PARTS LIST ITEM PART NUMBER 2698 2686 44-1363 12183-2 12-0308-2 12-0097 1503 1039-2 9002949 12220 12-0309-2 1501 1501-1 DESCRIPTION LEG, BLACK, ADJUSTABLE WITH MOUNTING PLATE, 6" CASTER RIGID NIPPLE, DRAIN EXT. 1-1/4” DOOR ASSY SS SR38 DOOR PANEL SS SR38 DOOR PIN MAGNETIC DOOR CATCH...
- Page 17 ITEM PART NUMBER 12-0379 LOWER HINGE BRACKET 12-0373 FRT & REAR CHANNEL SR38 (NEW STYLE) 8101202 40 AMP 3 POLE CONTACTOR (CE Only) 12-0311 CNTRL PANEL BACK SR38 12-0380-1 SIDE PANEL PP/GREY LH,SR38-650mm (CE) 12-0380-2 SIDE PANEL PP/GREY RH,SR38-650mm (CE) 2557 THERMOSTAT, SUNNE #TC125-004 1205...
-
Page 18: Portable Filter Operations
When completing a filter cycle, always close the return valve(s) at the fryer(s) to avoid siphoning oil out of the fryer into the filter and open the valve at the filter to promote draining of the return lines into the filter pan. - Page 19 Filter operations always start with making sure the unit is properly plugged in, then rolling the filter to the fryer to be filtered. The filter works directly under the fryer's drain valve.
- Page 20 Return all oil to the fryer. c. Open the hold-down ring locking latches and lift the ring out of the filter tank. Your unit will be equipped with one of the types shown in figure 9-3.
- Page 21 9.5.1 Portable Filter Pump Fails to Pump Oil? Filter Pump fails to pump oil. Does your filter have a heater? Turn heater "ON" and run heater for 15 minutes. Insert flexible oil return hose into the filter pan holster. Turn pump motor "ON".
- Page 22 9.5.2 Rate of Oil Return Slowing? Rate of oil return to the fryer is slowing. Is this the first fryer to be filtered during this filtering session? Check the filter paper in the filter pan. Is the filter paper properly secured...
-
Page 23: Troubleshooting
9.5.3 Blockage between Filter Pan and Flex Hose Valve? Heater Troubleshooting Check wall circuit breaker. If wall circuit breaker has tripped, turn heater "OFF". Reset wall circuit breaker. Turn heater "ON". If the suction line fails to warm, the heater is faulty. Contact your local Factory Authorized Service Center! - Page 24 ENTER FROM PAGE 22 HERE Plug is in the bottom of the filter pan or in the line from the filter to the pump. Disconnect the tubing from the filter pan to the motor. Make sure the pipe is cool. Try blowing air through it.
- Page 25 Dean , 8700 Line Avenue, Shreveport, Louisiana 71135 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135 SERVICE HOTLINE Price: $6.00 PRINTED IN THE UNITED STATES 1-800-551-8633 819-5709 04-99...
