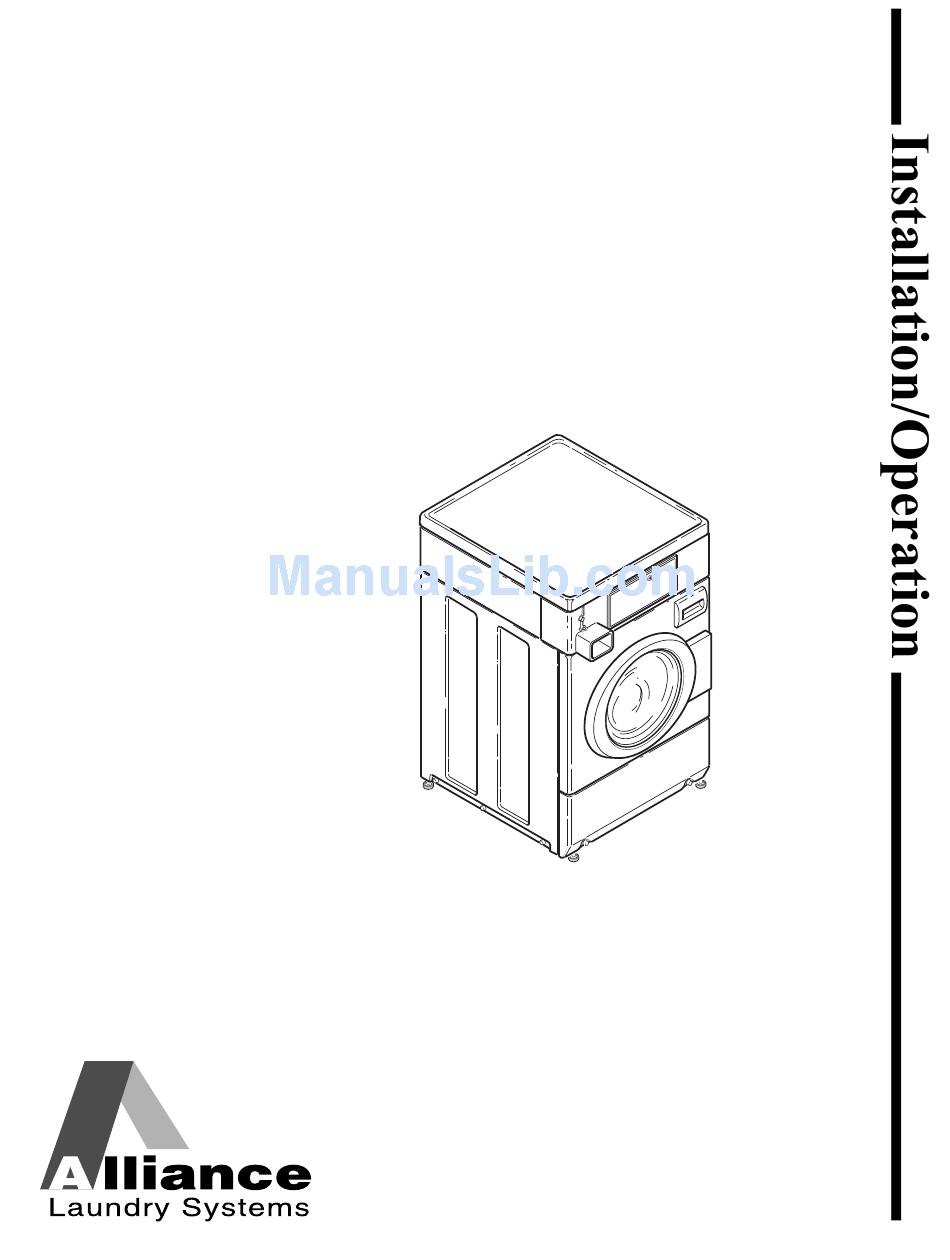

- Page 1 Frontload Washers Metered Commercial Para bajar una copia de estas instrucciones FLW1525C en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 802733R4 www.comlaundry.com October 2011...
- Page 3 These factors MUST BE supplied by the person(s) installing, maintaining, or operating the washer. Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand. 802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... - Page 5 Vacations and Extended Non-Use ........... 25 Reinstallation of Shipping Materials ..........26 Cleaning Foreign Object Trap ............26 Troubleshooting .................. 27 Contact Information................29 Installer Checklist..............Back Cover 802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 6: Safety Information
6. To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electrical power source. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... - Page 7 15. Be sure water connections have a shut-off valve and that fill hose connections are tight. CLOSE the shut-off valves at the end of each wash day. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733...
-
Page 8: Installation
(10.67 cm) 1.5 in. 26.875 in. (68.3 cm) (3.8 cm) MODELS WITH GRAVITY DRAIN FLW2200N 1.5 in. (3.81 cm) Inside Diameter 1.86 in. (4.72 cm) Outside Diameter © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 9: Before You Start
NOTA: Some moisture in the wash drum is normal. Water is used during testing at the manufacturer. D074I Wrench Screwdriver Pliers Socket Wrench Level Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 10: Installing The Washer
Tighten the locknuts securely against the washer base using the 7/8 in. wrench. If the locknuts are not H054I tight, washer will move out of position during Figure 2 operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 11: Step 3: Connect Fill Hoses
NOTA: Water pressure under 20 pounds per square inch (138 kPa) will cause an extended fill time in the washer and may not properly flush out the detergent dispenser. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 12: Connecting Hoses
No. 20617 Fill Hose (8 feet) (2.44 m) No. 20618 Fill Hose (10 feet) (3.05 m) TLW1976N Faucet Fill Hoses Plain Rubber Washer Filter Screens Figure 4 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 13: Step 4: (Non-Gravity Drain Models Only) Connect Drain Hose To Drain Receptacle
1-3/8 inch (3.5 cm) outside diameter drain hose. W005I W005I Risers (Air Cushions) Water Supply Faucets Figure 6 FLW1963N Shipping Tape Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 14: Step 5: (Gravity Drain Models Only) Connect Drain Outlet To Drain System
(61 TO 91.44 cm) RECOMMENDED HEIGHT Flw1964N FLW1964N Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm) Figure 8 Flw1935N FLW1935N Drain Trough Drain Outlet Hose Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 15: Step 6: Remove The Shock Sleeves And Shipping Brace
FLW2124N factory. Shock Sleeves Motor Mount 5. Refer to supply injection system instructions for Hooked End of Shipping Brace details on operation. Bolts and Lockwashers Figure 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 16: Control Function Test
Supply Dispenser Pump Outlet they are correct for the washer. 2. Open manual shut-off valves to the washer. Figure 12 3. Apply power to the washer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 17: Step 9: Plug In The Washer
110/120 Volts AC (alternating current) 15 Amps. Refer to Figure 14 to determine correct polarity of the wall receptacle. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 18: Step 10: Check Installation
NOTA: Have a qualified electrician check the polarity of the wall receptacle. If a voltage reading is measured other than that in Figure 14, the qualified electrician should correct the problem. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 19: Operation
When washing bulky items such as blankets and comforters, use the DELICATES COLD cycle. The cycle includes agitation and final spin speeds that maintain the load’s balance and minimize wear to the articles. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 20: Step 3: Add Laundry Supplies
Figure 18 FLW2117N FLW2117N Detergent Bleach Fabric Softener Figure 17 CAUTION Dispenser drawer requires a special tool for removal. Contact a service person if removal is necessary. W236 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 21: Step 5: Insert Coin(S) Or Card
Insert coin(s) in coin slot. Check pricing as seen on WASHER. digital display. W387I FLW1923N FLW1923N Figure 19 Figure 21 To Insert Card Insert card into opening. DRY1927N Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 22: Indicator Lights
WARNING To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all moving parts have stopped. W092 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 23: Operation Instructions For Netmaster Washers
When washing bulky items such as blankets and comforters, use the DELICATES cycle. The cycle includes agitation and final spin speeds that maintain the load’s balance and minimize wear to the articles. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 24: Step 3: Add Laundry Supplies
COLD Fabric Softener Figure 24 CAUTION Dispenser drawer requires a special tool for removal. Contact a service person if H206I removal is necessary. H206I W236 Figure 26 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 25: Step 6: Insert Coin(S) Or Card
SPIN is lit for all spin cycles. DOOR LOCKED M343I DOOR LOCKED is lit whenever the door is locked. Figure 28 The door cannot be opened when this light is on. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... - Page 26 Have a qualified service person refer to the wiring diagram (located inside of washer control cabinet) and check for broken, loose or incorrect wiring. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733...
-
Page 27: Maintenance
Usually a mild soap solution will work. If there is an extreme build-up of minerals from a hard water supply, the surfaces may need to be cleaned with a lime removal chemical. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 28: Reinstallation Of Shipping Materials
Shock Sleeves Motor Mount Hooked End of Shipping Brace Bolts and Lockwashers Figure 30 Refer to Installation section, step 6 for proper procedures whenever the washer is moved. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 29: Troubleshooting
If using non-HE detergent, use only 1/2 of the detergent manufacturer’s recommended amount. • Laundry load may be overloaded. Make sure you are using proper load sizes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... - Page 30 “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indi- cated with “C” on the valve bracket). • Make sure laundry room water heater is adjusted properly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733...
-
Page 31: Contact Information
If replacement parts are required, contact the source from where you purchased your washer or call (920) 748-3950 for the name and address of the nearest authorized parts distributor. FLW2123N FLW2123N Nameplate Figure 31 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802733... -
Page 34: Installer Checklist
• Connect • Connect Drain Hose External Supplies to Drain Receptacle. to Washer. Flw1964N FLW1964N CHECK FLW2116N CHECK FLW2116N • Plug In the Washer. CHECK D254IE0A D254IE0A © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
