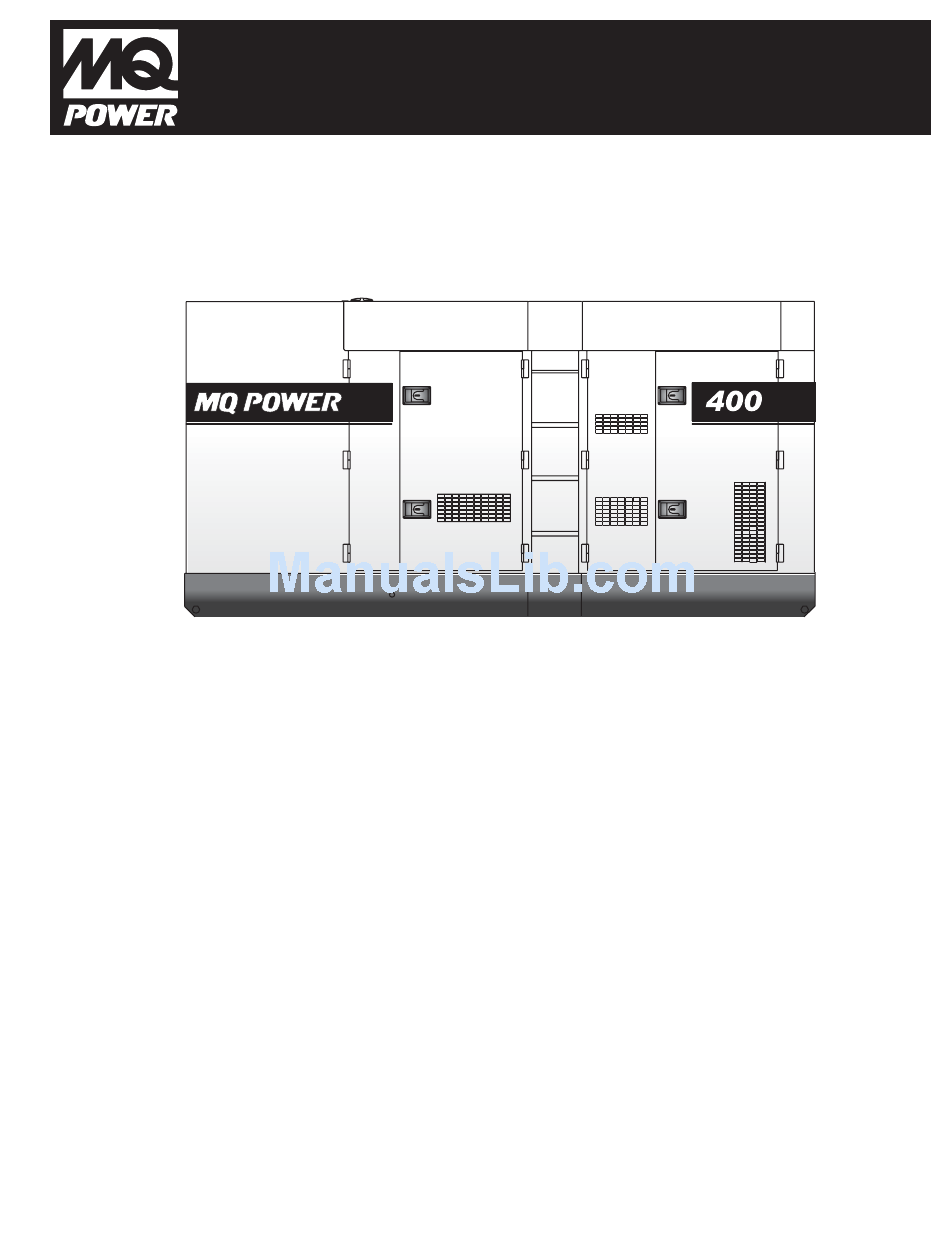

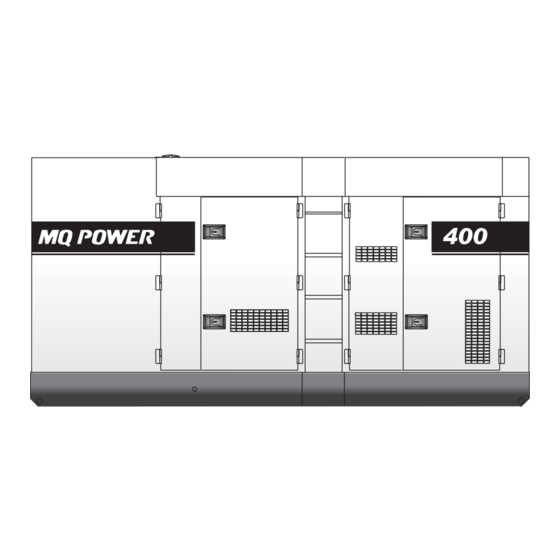

MULTIQUIP WhisperWatt 400 DCA400SSI Features And Specifications

WhisperWatt
Prime Rating: 320 kW (400 kVA)
Standby Rating: 352 kW (440 kVA)
60 Hertz

Standard Features

■ Heavy duty, turbocharged, direct injection, air to air
intercooled diesel engine provides maximum reliability.
■ Brushless alternator reduces service and maintenance
requirements and meets temperature rise standards for
Class F insulation systems.
■ Open delta alternator design provides virtually unlimited
excitation for maximum motor starting capability.
■ Automatic voltage regulator (AVR) provides precise
regulation.
■ Electronic governor system maintains frequency to
±0.25%.
■ Full load acceptance of standby nameplate rating in one
step (NFPA 110, para 5-13.2.6).
■ Sound attenuated, weather resistant, steel housing
provides operation at 74 dB(A) at 23 feet. Fully lockable
enclosure allows safe unattended operation.
■ Internal fuel tank with direct reading fuel gauges are
standard.
■ Fuel / water separator removes condensation from fuel for
extended engine life.
■ E-Coat primer with polyurethane enamel finish coat.
■ Simultaneous single and three phase power.
■ EPA emissions certified. - Tier 3 emissons compliant.
WhisperWatt
400
TM
■ Complete engine analog instrumentation includes DC
ammeter, oil pressure gauge, water temp. gauge, fuel level
gauge, tachometer/hour meter, preheat indicator, manual
engine speed control, emergency shutdown monitors, and
emergency stop button.
■ Complete generator analog instrumentation includes
voltage regulator control, ammeter phase selector switch,
voltmeter phase selector switch, AC voltmeter, AC ammeter,
frequency meter, panel light, and circuit breaker.
■ Automatic safety shutdown system monitors the water
temperature, engine oil pressure, overspeed, and overcrank.
Warning lights indicate abnormal conditions.
■ Low coolant level shutdown system provides protection
from critically low coolant levels. Includes control panel
warning light.
■ Auto start/stop control allows generator to start
automatically in the event of a commercial power failure.
■ Complete power panel. Fully covered; three-phase
terminals and single phase receptacles allow fast and
convenient hookup for most applications including temporary
power boxes, tools and lighting equipment. All are NEMA
standard.
■ Emergency stop switch.
■ Battery switch.
■ Voltage change over board allows easy to change voltages
as your applications require. 240/480 Buss Bar.
DCA400SSI
TM
Generator
DCA400SSI Rev 2
