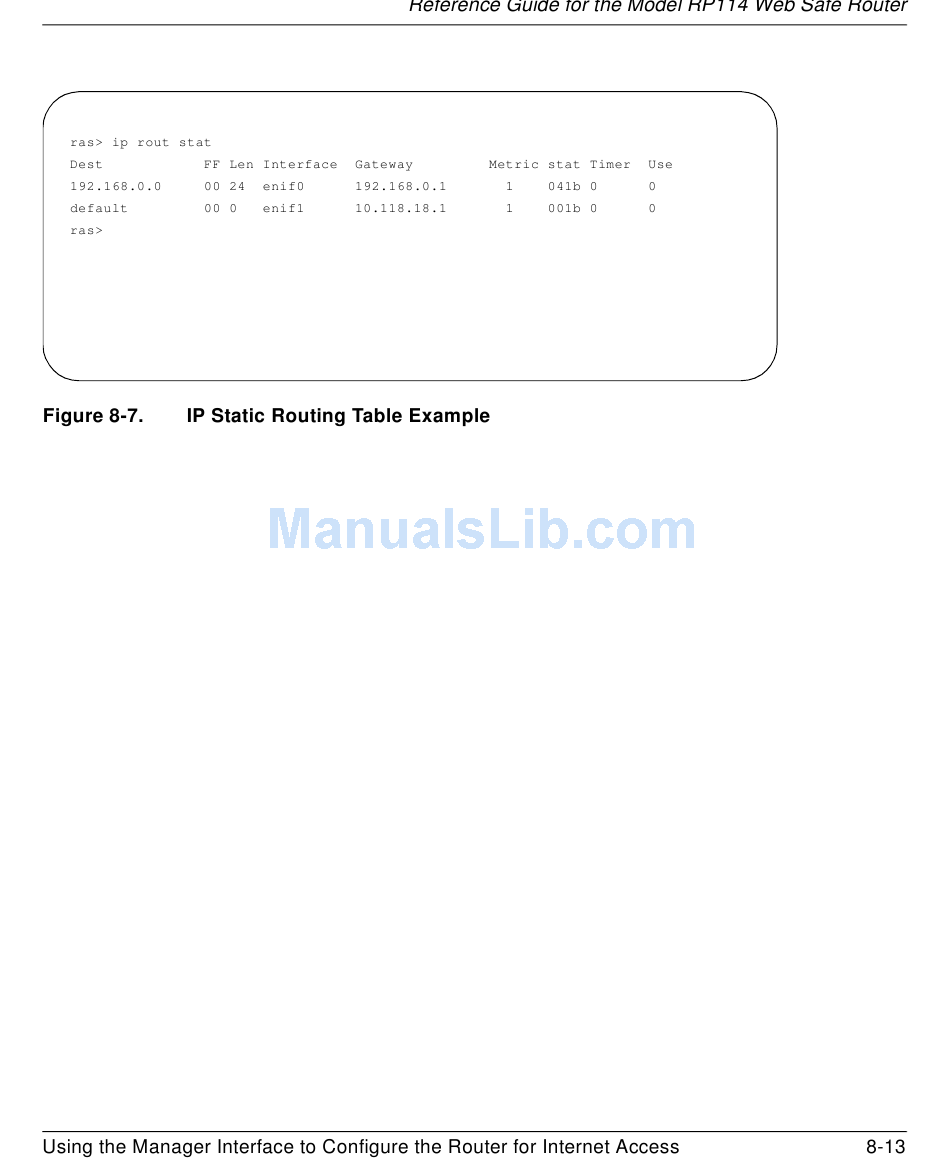

In this example, the first route shown is the local Ethernet subnet connected to the LAN
interface (enif0). The second route is the default route, through the WAN interface (enif1). All
traffic from the LAN to a destination outside the LAN will be sent to the default route and will
be handled by the ISP.
After viewing the table, type "exit" to return to the menus.
5.
To create additional static routes for IP:
In the Manager interface, open Menu 12 - IP Static Route Setup.
1.
Select an unused number from the menu and press [Enter].
2.
Menu 12.1 - Edit IP Static Route opens as shown in
Figure
8-8.
