When implementing these filter sets, you can link up to four of the filter sets to screen the data
packet. Therefore, with each filter set having up to six rules, you can have a maximum of 24 rules
active for a single filtering application.
To configure a filter set:

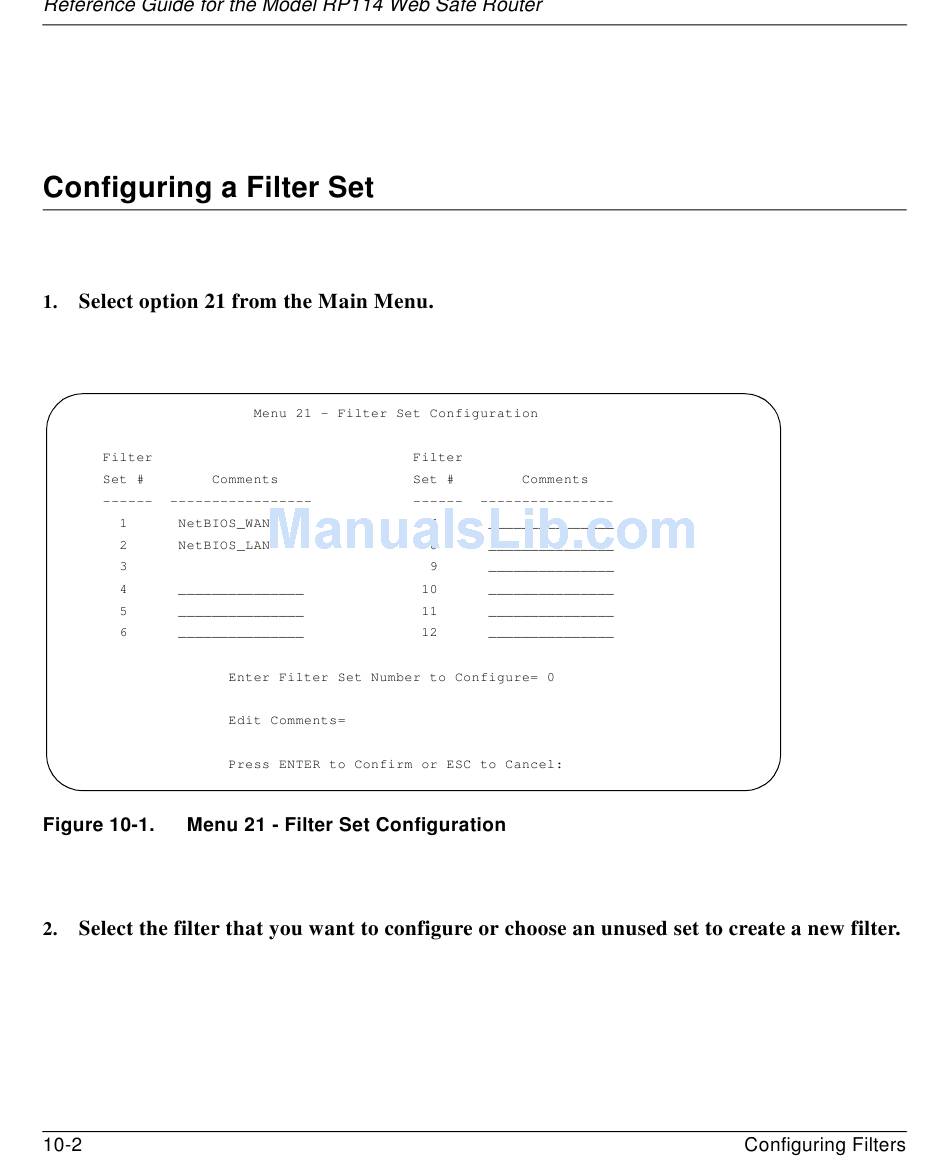

The Menu 21 - Filter Set Configuration
From this menu, you can choose from 12 filter sets.
In order to distinguish between the 12 filter sets, each filter set should have a name or
description. When you select a set for editing, you are prompted to provide descriptive text to
be displayed in the comment field of Menu 21 next to the filter number.
(Figure
10-1) opens.
