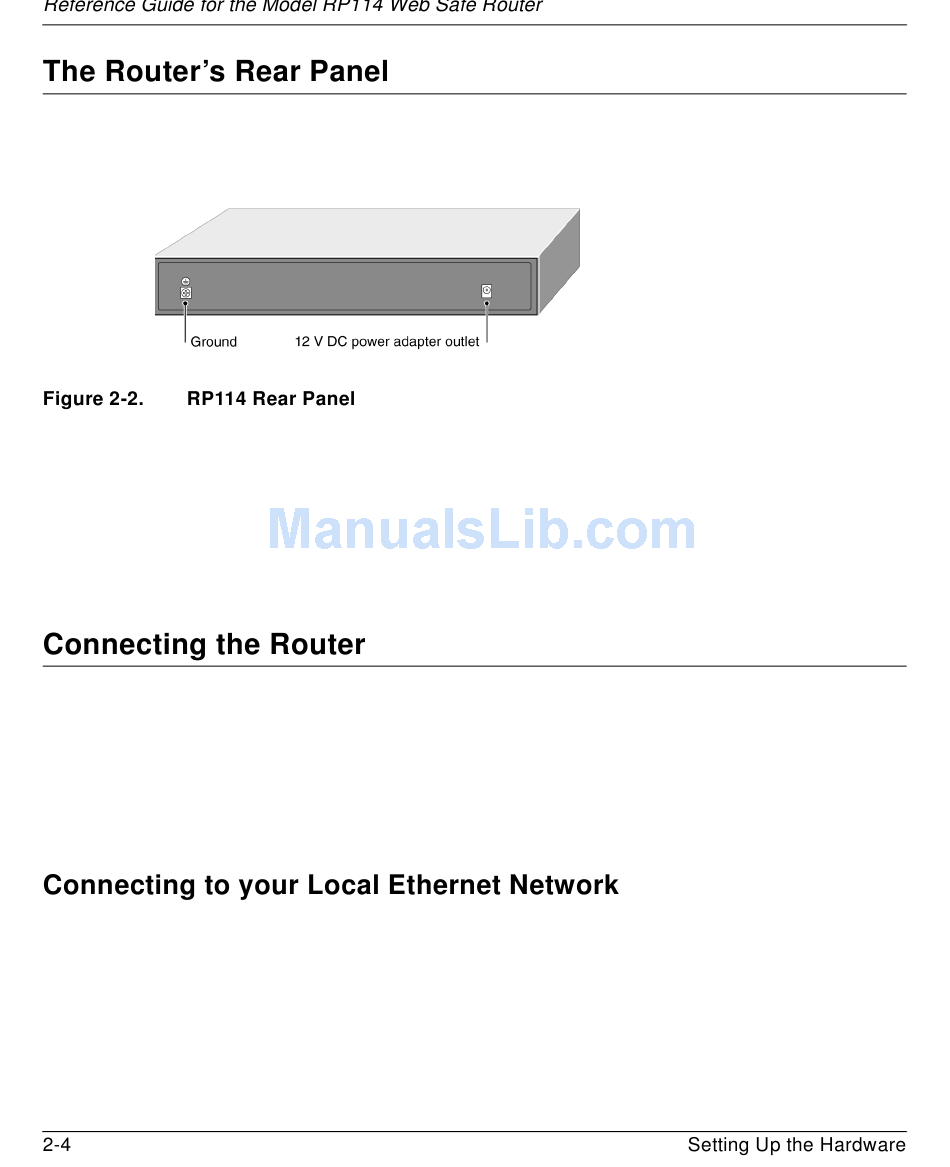

The rear panel of the Model RP114 router is shown in
The rear panel contains the following features:
•
12 VDC power adapter outlet
•
Factory Default Reset pushbutton
•
Ground lug
Before using your router, you need to do the following:
•
Connect your local Ethernet network to the LAN port(s) of the router (described next).
•
Connect your cable or DSL modem to the WAN port of the router (see
•
Connect the power adapter (see
Your local network will attach to the router port or ports marked LAN. The LAN ports are capable
of operation at either 10 Mbps (10BASE-T) or 100 Mbps (100BASE-Tx), depending on the
Ethernet interface of the attached PC, hub, or switch. For any connection which will operate at 100
Mbps, you must use a Category 5 (CAT5) rated cable, such as the white Ethernet cable included
with the router.
Figure
page
2-5).
2-2.
page
2-5).
