In this case you must define a static route, telling your router that 134.177.0.0 should be accessed
through the ISDN router at 192.168.100. The static route would look like
In this example:
•
The Destination IP Address and IP Subnet Mask fields specify that this static route applies to
all 134.177.x.x addresses.
•
The Gateway IP Address fields specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.0.100.
•
A Metric value of either 1 or 2 will work.
•
Private is selected only as a precautionary security measure in case RIP is activated.

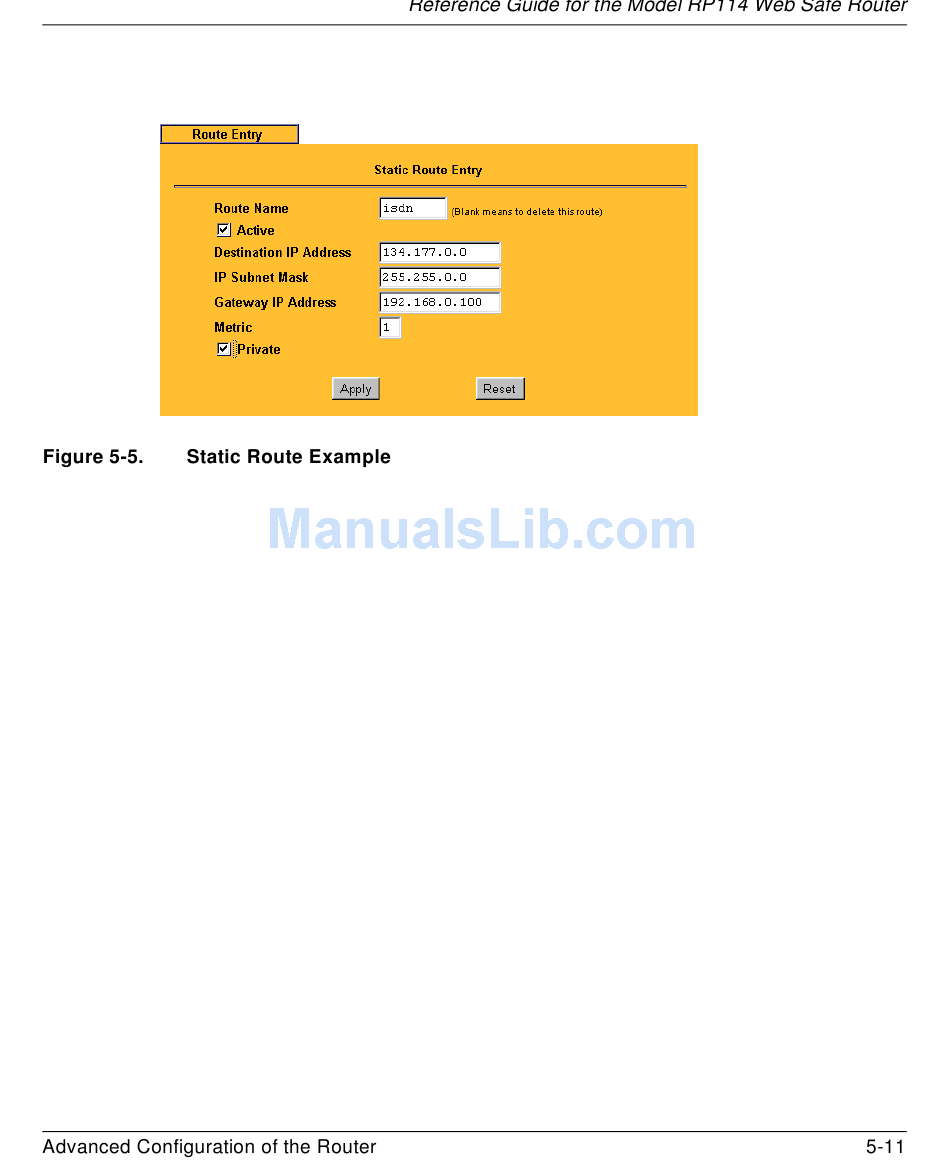

Figure
5-5.
