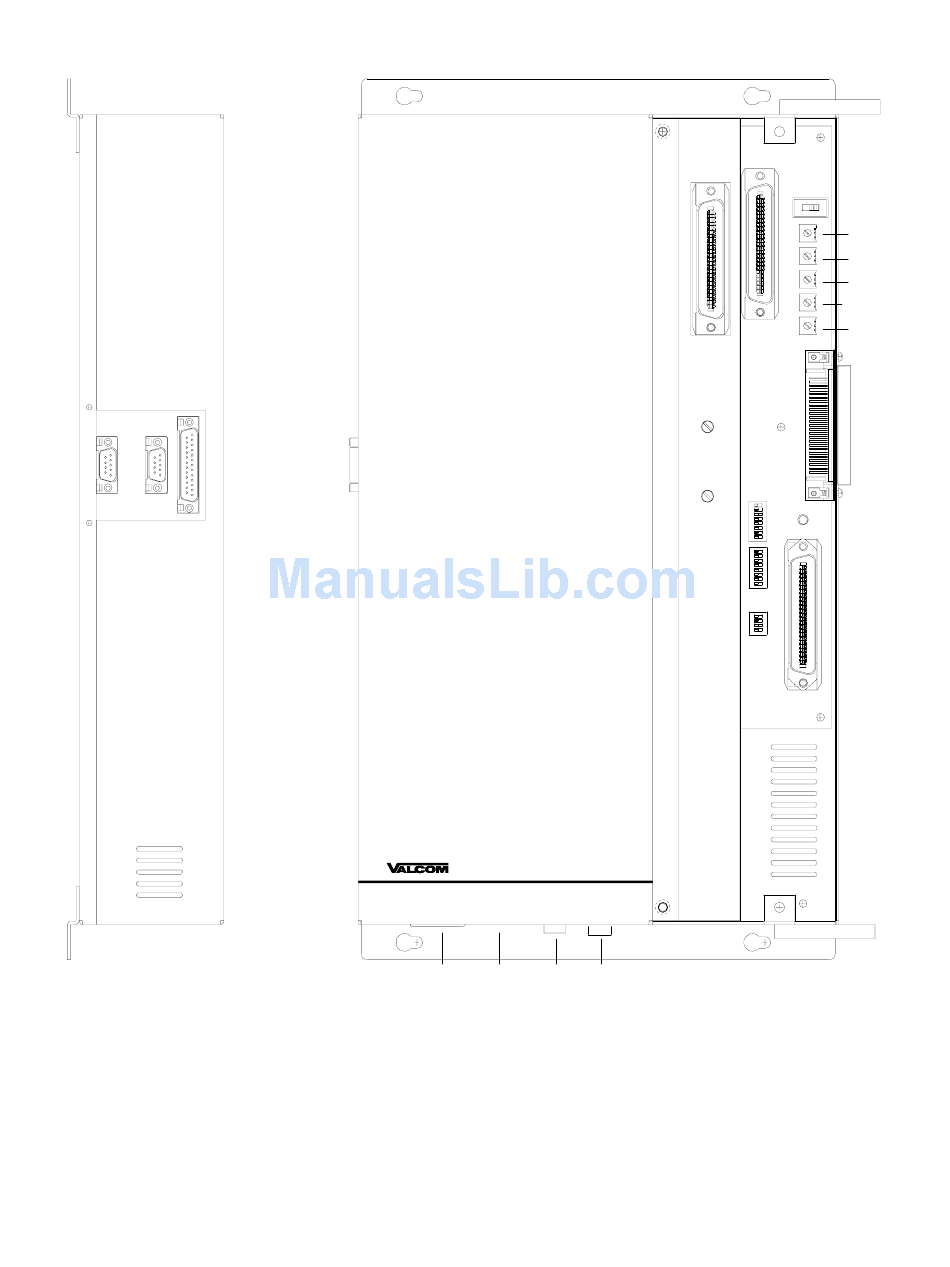

FIGURE 1 - 2924A CONTROL AND CONNECTOR LOCATIONS
Side View
P10
Switches:
SW1 - BGM Group Select Dip Switch (See Table 1)
SW2, SW3 - Option Dip Switch (See Table 1)
SW4 - Battery Feed Switch (Priority Port)
Connectors:
P3 - 45 ohm Speakers (See Figure 2)
P6 - Call-In Switch Inputs (See Figure 2)
P7 - System Connections (See Figure 2)
P8 - Expansion Unit Connector
P10 - RS232 Serial Port for SMDR (DB9 Connector)
P10
V-2924A
AC 115/230
Power Switch
5
Top View
Fuse Battery Backup
Connector
Volume Controls:
R11 - Handsfree Speaker to Phone Level
R16 - Handsfree Phone to Speaker Level
R79 - Background Music Level
R80 - External Tone Source Level
R81 - All Call Adjust Volume/Attendant Level
R82 - Override Port Page Level
R115 - Internal Tone Source Level
P7
P3
SW4
R79
R80
R82
R115
R81
P8
R16
R11
SW2
SW3
SW1
P6
