MPR 211 – Condenser Microphone
14

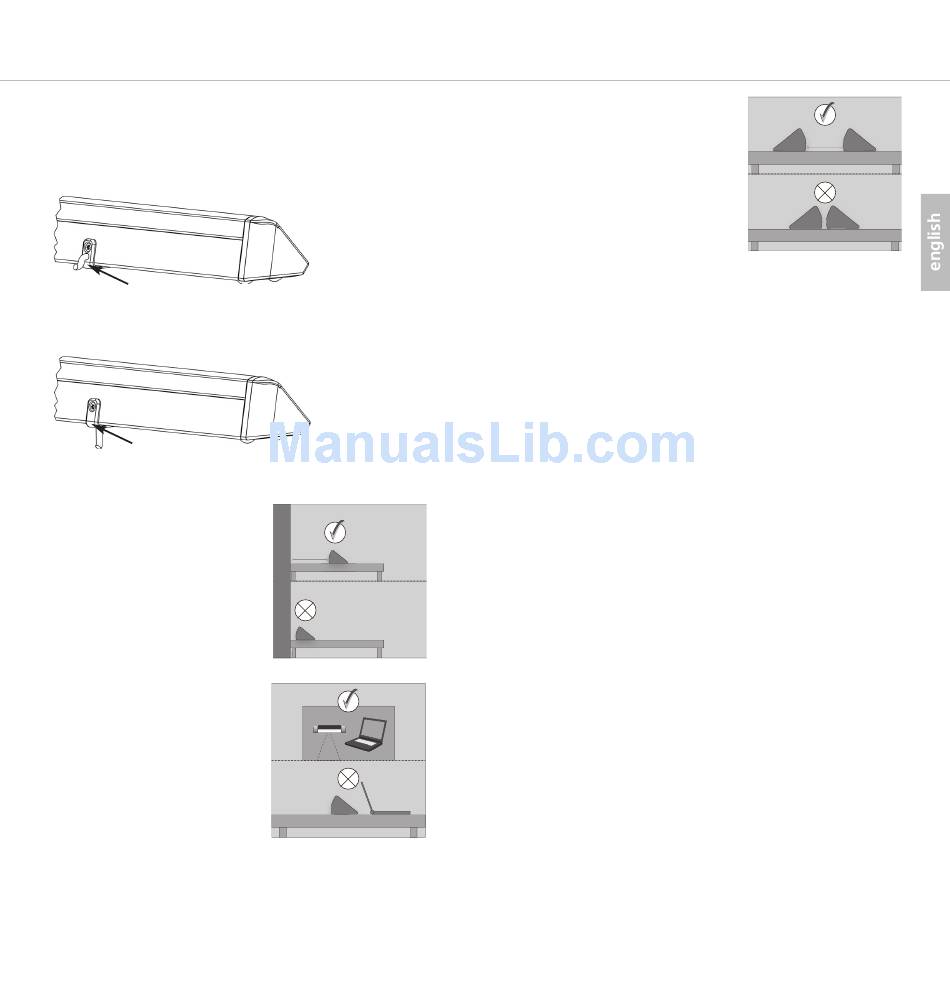

The connecting cable can be guided to the rear or to the bottom.
For this you can remove the two small screws, turn the cable duct
appropriately and tighten the screws. The standard cable exit is on the
rear.
Cable guided to the rear.
cable duct
Cable guided to the bottom.
cable duct
6. Microphone Positioning
Each speaker should have his or her
own microphone.
The MPR 211 must not directly be
placed with its back in front of a wall.
The minimum distance to the wall
should be 15 to 20 cm. An acoustic
shadow due to obstructions, such as
books, newspapers or conference
papers, compromises performance
greatly.
When notebooks are being used, it is
also necessary to consider the micro-
phones. Notebooks should always be
positioned to the side of the micro-
phones. Otherwise, when opened, the
LCD screen would obstruct the sound.
This also applies to free-standing
monitors. Sufficient distance is the key
to the directional effect and good
feedback suppression. Moreover,
notebooks often have fans at the
back. The noise of the fan would then
be fully picked up by the microphone.
15 - 20 cm
MPR 211 – Condenser Microphone
Two MPR 211 should not be directly
placed back to back, because the
acoustical corridor effect does not
work in this case. As shown in the
previous example the minimum
distance should be 15 to 20 cm.
For more information about application examples, please refer to the
beyerdynamic "Revoluto Design Guide".
7.

Installation

For permanent installation on a table, the MPR 211 provides screw
sockets on the left and right hand side at the bottom of the housing.
Warning:
We recommend that the threaded sleeve is screwed into the micro-
phone approx. 1/5" (5 mm). Refer also to the drilling template.
8.

Maintenance

Use a soft, damp cloth for cleaning the MPR 211 microphone. If
necessary, you can use a gentle cleansing agent (such as washing-up
liquid). Make sure not to allow any water to enter the transducer
element and never use any solvent cleansers.
9. Service
Servicing must be carried out by qualified service personnel only.
Dismantling the microphone yourself will invalidate the guarantee.
10. Version
MPR 211 Microphone with
Revoluto technology,
corridor polar pattern . . . . . . . . . . . . Order # 488.429
15
15 - 20 cm
15 cm
