Page 1: Operating Instructions

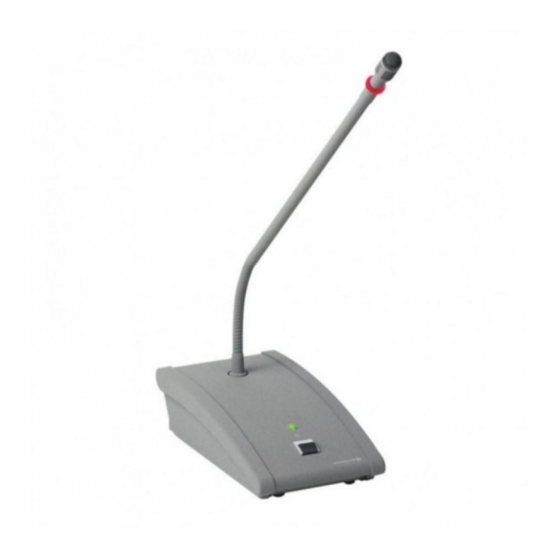

BEDIENUNGS- ANLEITUNG OPERATING INSTRUCTIONS NOTICE D’UTILISATION MTS 67 Tischsprechstelle Desktop Microphone Unit Poste d’appel... - Page 2 90 Hz bass roll off or 150 Hz bass roll off. The MTS 67 is switched on and off with the microphone button. An LED indicator in the casing and an illuminated ring of the gooseneck microphone show the ready-to-talk status.
-
Page 3: Operation
MTS 67/5 The MTS 67/5 microphone unit is also powered with phantom power (24 to 48 volts). Depending on the application this microphone unit can be connected to a control desk if the microphone unit is operated by an external control contact or to a mixing amplifier if external devices are controlled. - Page 4 Example: If you connect the MTS 67/5 to the E 3300 mixing amplifier, the current programme (e.g. music) can be faded out and the microphone switched on for an announcement by pressing the microphone button.
-
Page 5: Technical Specifications
Supply voltage ... . 24 - 52 V, phantom Power consumption ..8.5 mA Connection MTS 67/3 ..3-pin male XLR Pin 1 = Shield... - Page 6 Frequenzgang / Frequency Response Curve / Courbe de fréquence Schaltbilder / Wiring Diagrams / Diagrammes de câblage...
- Page 7 Richtdiagramm / Polar Pattern / Directivité...
-
Page 8: Notizen • Notes
NOTIZEN • NOTES...
