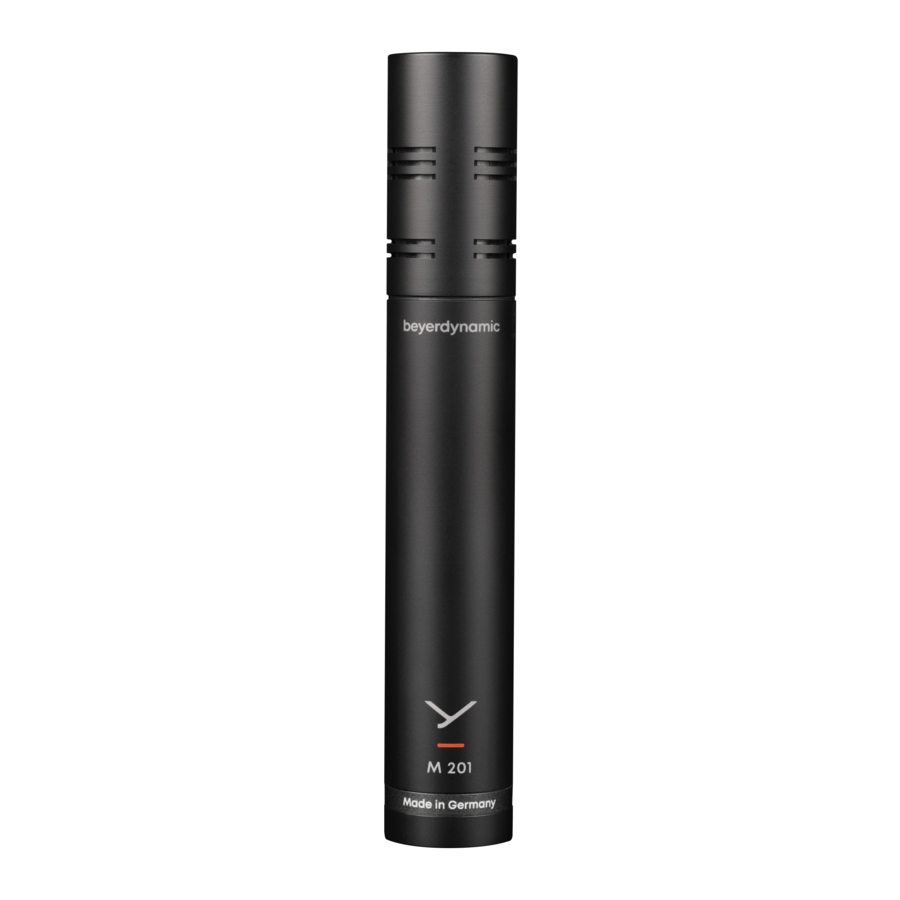

Beyerdynamic M 201 - Dynamic Moving-coil Microphone Manual

BOX CONTENTS

• 1 x M 201 microphone
• 1 x MA-CL 25 microphone clamp
• Storage case
• Individual measurement chart
• "M Series Guide" info sheet
• Technical specifications on the M series

OPTIONAL ACCESSORIES

FEATURES

• Flexible application options
• Outstanding clear and detailed sound
• High speech intelligibility
• Defined hypercardioid polar pattern
• Hum-bucking coil to eliminate background noise
• Handcrafted in Germany

APPLICATION

Whether in the studio or on stage, the precise sound and linear frequency response of the M 201 result in a signal that consistently stands out in the mix and leaves all post-processing options open. The M 201's slim design also makes it easy to position the microphone, giving the users the best possible support in their search for the perfect sound.

Due to its hypercardioid polar pattern and the hum-bucking coil, the M 201 is ideal to successfully avoid noise and feedback. In addition to this, crosstalk is reduced as best as possible. This is another reason why this microphone is a popular companion for drums.
The M 201 is appreciated for the use with acoustic guitars because of its clear and detailed sound reproduction. The M 201 can also be used for vocals or speech.

TECHNICAL SPECIFICATIONS

FREQUENCY RESPONSE & POLAR PATTERN

This polar pattern and frequency response curve correspond to a typical production sample for this microphone.

WIRING DIAGRAM

INSTALLATION AND OPERATION

Connection

• The M 201 is equipped with a 3-pin XLR connector. You can connect it to any microphone input using a suitable microphone cable.
•
  Carelessly laid cables are a trip hazard. People can be injured and the microphone can be damaged.

Operation

• The M 201 features a hypercardioid polar pattern and a high gain before feedback.
• In order to avoid feedback and other disturbing noise as best as possible, you should position the microphone so that monitor speakers and other sound sources radiate laterally from behind (angle approx. 120°) onto the microphone.
• The M 201 is supplied with the MA-CL 25 microphone clamp for tripods with 3/8" thread. For tripods with a 5/8" thread, you can unscrew the threaded insert.
•
  A tripod with an insecure stand can fall over and damage a microphone mounted on it. Make sure the tripod stands stable.

MAINTENANCE

• Use a soft cloth moistened with water to clean the microphone shaft and grille.
• Make sure that no water enters the microphone.
• Do not use cleaning agents containing solvents.

TROUBLESHOOTING AND SERVICE

• Should you have technical problems when using the microphone or should you need more instructions, please visit our FAQ website at https://support.beyerdynamic.com
• In case of service, please contact authorised service personnel. Never open the microphone yourself, as this could invalidate all warranty claims. Please visit our website https://www.beyerdynamic.com for service and replacement parts.

FURTHER INFORMATION

• If you need further information, please visit our website. On our product detail page https://www.beyerdynamic.com/m-201.html you will also find sound samples.
• If you would like to learn more about beyerdynamic microphones for various applications, please visit https://www.beyerdynamic.com/microphones-made-in-germany

SAFETY INSTRUCTIONS

• Read this user manual and the safety instructions carefully before using the product.
• Do not use the product if it is damaged.
• Lay cables in such a way that no one can trip over the cables and that the device cannot be damaged.
• Repairs may only be carried out by authorised specialists. Never open the microphone yourself. For devices that have been opened by the customer the warranty will invalidate.
• Do not expose the product to rain, snow, liquids or moisture.
• Use the device only under the conditions specified in the technical specifications.
• Only use accessories and spare parts approved by the manufacturer.
•
  Reduce the volume on the connected playback devices to prevent hearing damage, acoustic feedback and damage to the loudspeakers.

Intended use

Do not use the product in any way other than as described in this product manual. beyerdynamic accepts no liability for improper use of the product or its accessories.

Liability

beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons due to careless, improper or incorrect use, that is not in accordance with the purpose stated by the manufacturer.
