The next manoeuvre is displayed as an ar-
row, with the distance to the next ma-
noeuvre point indicated underneath it. If
two driving manoeuvres are to be per-
formed in succession within a short time,
another smaller arrow indicating the sec-
ond driving manoeuvre is displayed above
the first arrow.
Information on the TMC status is dis-
played in the bottom line. There are three
possible TMC statuses:
If the first icon is displayed, TMC is oper-
ating correctly.
If the second icon is displayed, there is a
hold-up on the route.
If the third icon is displayed, TMC recep-
tion is disrupted and no TMC messages
can be received.

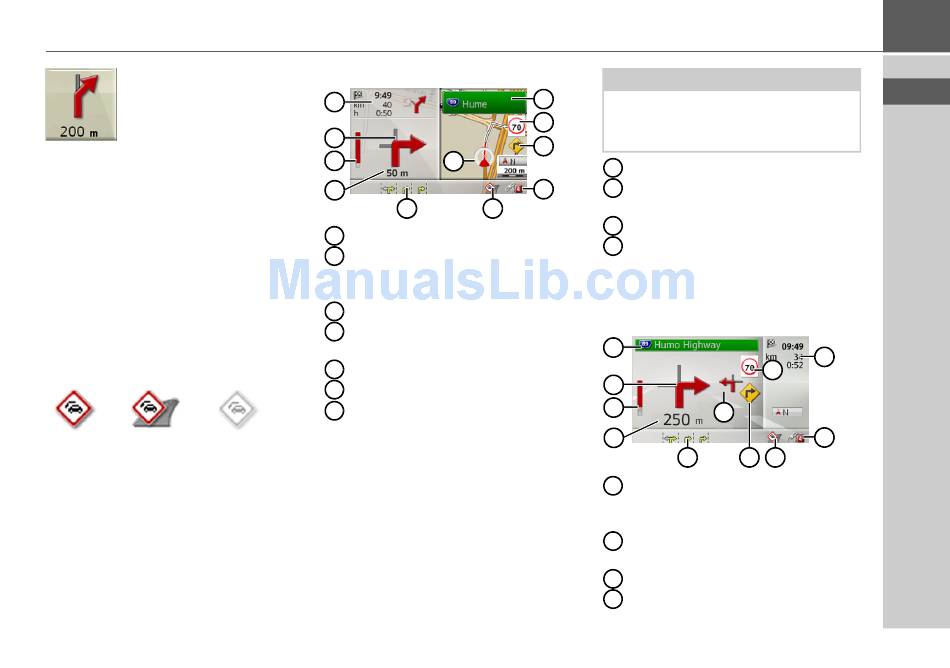

Split screen with route guidance

11
10
9
6
8 8
7 5
Road signs, which you should follow
1
Speed limit on the road currently be-
2
ing driven on (display not available
for all roads)
Driver alerts
3
Number of satellites currently being
4
received
Display of TMC status
5
Vehicle position
6
Current road
7
or
Traffic lane recommendation (only
appears on some multi-lane roads;
green arrows = recommended lanes)
NAVIGATION MODE
Note:
1
Following the traffic lane recommenda-
tions allows you to perform the next driv-
2
ing manoeuvre without changing lanes.
3
Distance to next driving manoeuvre
8
Progress bar to illustrate the distance
4 9
to the next driving manoeuvre
Next driving manoeuvre
10
Estimated time of arrival, remaining
11
journey time and remaining distance
to destination

Route guidance with arrow display

11
10
9
8 8
7
Estimated time of arrival, remaining
1
journey time and remaining distance
to destination
Number of satellites currently being
2
received
Display of TMC status
3
Driver alerts
4
>>>
> EN
1
5
6
2
4 3
