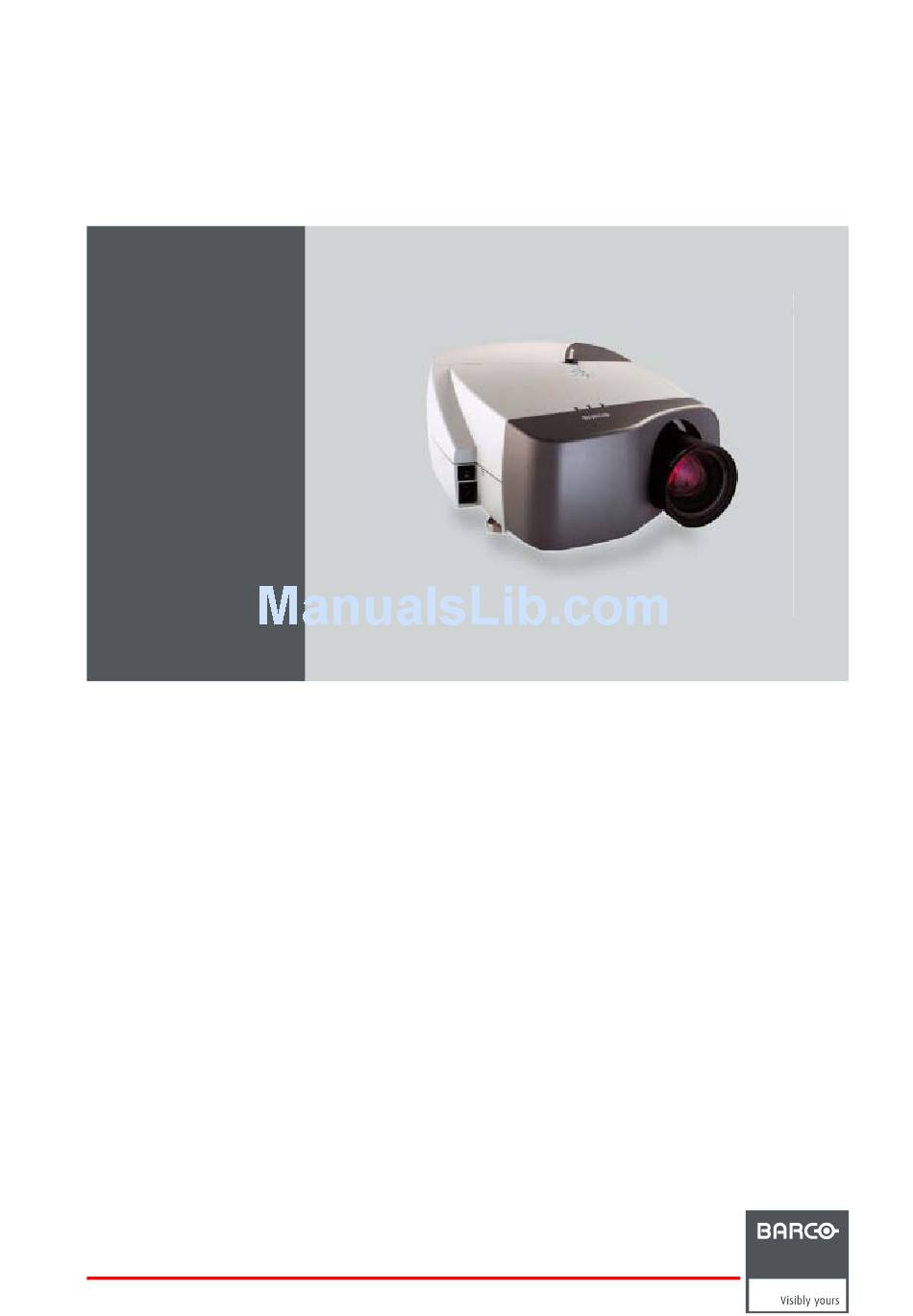

R5976837/02
21/09/2006
Barco iD R600/R600+
Owners Manual
R9010340
R9010341

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iD R600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco iD R600

Summary of Contents for Barco iD R600

  • Page 1 Barco iD R600/R600+ Owners Manual R9010340 R9010341 R5976837/02 21/09/2006...
  • Page 2 Product revision Software version: V1.30 Barco nv Presentations Noordlaan 5, 8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.35.86.51 E-mail: presentations.bid@barco.com Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Noise reduction ......................49 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 6 Cleaning ........................122 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 7: Packaging

    Save the original shipping carton and packing material, they will be necessary if you ever have to transport the lens. AUTION Never transport the projector with the lens mounted on it ! Always remove the lens before transporting the projector. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 8 Image 1-2 Save the original shipping carton and packing material, they will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 9: Installation Guidelines

    It is advised to clean the dustfilters on a regular basis and to replace them at any lamp change. Barco reserves itself the right to refuse warranty replacement of consumables if they have been used in a projector with dirty airfilters.

  • Page 10: What About Ambient Light

    Image size The projector is designed for projecting an image size with a screenwidth from 1.00m (3.3ft) to 6.00m (19.7ft) with an aspect ratio of 4 to 3. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 11: Installation

    Positioning the projector • Connections Dimensions overview Dimensions are given in mm (1 inch = 25.4 mm) Length with different lenses : see table Cold air IN Cold air IN 487 (length without Cable Basket) Image 3-1 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 12: Battery Installation In The Rcu

    4. Lift up the battery at the same time. 5. Repeat for the second battery. 6. Insert the batteries as indicated in the RCU (battery type AA or LR6 or equivalent). 7. Put the battery cover on its place. (image 3-2) Image 3-2 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 13: Lens Installation

    2. Remove the lens out of its housing Image 3-5 location of the lens handle Image 3-4 AUTION Never transport the projector with the lens mounted on it ! Always remove the lens before transporting the projector. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 14: Lens Range

    = 4.32 X SW - 0.01 = 4.32 X SW - 0.39 Projector configuration The different configurations Depending on the installation the projector can be mounted in different ways, the 4 different configurations are: Rear/Ceiling Rear/Table Front/Ceiling Front/Table R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 15: Positioning The Projector

    The position of the projector with reference to the screen may also be different depending on the installation. Basically the projector can be positioned in an On-Axis or Off-Axis configuration. Several parameters can be calculated determining the position in any installation. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 16 3. Installation front plate CD=SH/2+B-A Image 3-7 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 17 A 100% Off-Axis position means that the position of the centre of the lens is shifted by half the screen height. Never use a short throw lens in an Off-Axis installation. Shifting the lens will not guarantee optimal image quality. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 18: Connections

    The optional features are also explained in this manual, they are always mentioned with “(optional)” overview • 5–cable input • composite video • component video (PR/Y/PB) • S-Video • Digital Visual Input (DVI) • Computer • Serial Digital Input (Optional) • Audio input/output (Optional) R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 19: 5-Cable Input

    Cable basket : the white arrow shows the cables leaving the projector Front view Back view 3.5.2.3 5-Cable input Input specifications The 5-cable input section is made of 5 BNC input terminals. 0.7 Vpp ± 3dB 75 Ω terminated R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 20: Composite Video Input

    Note: Another way for selecting this input is via Source on the local keypad or via the Menu 3.5.2.4 Composite Video Input Input specifications The Composite video input section is made of 1BNC input terminal. 1.0 Vpp ± 3dB 75 Ω terminated No loop through 1. data or video R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 21: S-Video Input

    Standard S-Video (S-VHS) with separate Y(luma) and C (chroma) signals. How to select the S-Video input ? 1. Press 4 on the RCU Note: Another way for selecting this input is via Source on the local keypad or via the Menu. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 22: Digital Visual Interface (Dvi) Input

    Note: Another way for selecting this input is via the Menu. 3.5.2.7 Computer input Input specification TTL sync input : U = 2.0 V RGB input = 0.7 V ± 3dB Image 3-15 What can be connected ? • RGBHV • R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 23: Serial Digital Interface (Optional)

    The SDI is located on Layer3 which is an optional Layer. 3.5.2.9 Audio input/Output (Optional) Input specification Typical = 200 mV Max = 4V Mono/Stereo Output specification +20dB / -∞ dB Max = 4 V R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 24: Communications Connections

    • wide range of control possibilities Data communication: sending data to the projector or copying the data from the projector to the computer To set up the baudrate of the projector, see the Installation menu R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 25: Setup

    The projector can be controlled by the local keypad or by the remote control unit. Location of the local keypad ? The local keypad is located on the topside of the projector. For key overview: "Terminology overview", page 22 Image 4-1 Local keypad layout R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 26: Terminology Overview

    Pro version : shows when projector is in hardware error standby and server is active. LED3 IR acknowledgement continue : standby flickers : Security = ON Terminology overview Overview The following table gives an overview of the keys. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 27 Lens control use these buttons to obtain the desired ZOOM, SHIFT, FOCUS. use this button to obtain the desired sound level (audio = optional) Picture controls use these buttons to obtain the desired picture analog level. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 28: Switching On

    It may take about 60 seconds before image projection, i.e. no projection until the completion of several oper- ations (software initialization,...). If the Security mode is enabled, a textbox will be displayed for PIN code entry, see Security setting in the Installation menu R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 29: Setting Up The Rcu Address

    “0” or “1” (by default “0”). In other words, an RCU set to address “0” will always control a projector regardless of its projector address (since it uses the common address). R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 30: Projector Address

    How to change the common RC5 address ? 1. Press MENU to activate the Tool bar 2. Press → to select the Installation 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Projector address R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 31: Orientation

    All these lens parameters can be adjusted using the RCU, the local keypad or in the Installation menu of the projector’s OSD. • Zoom (only for motorized lenses) • Focus (only for motorized lenses) • Vertical Shift R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 32 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Lens adjustments... (image 4-11) 5. Press ENTER A textbox appears on the screen, follow the instructions. (image 4-12, image 4-13) Image 4-11 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 33: Preferences

    5. Press → to pull down the menu 6. Use ↓ or ↑ to select the desired language (image 4-14) 7. Press ENTER The language is adapted and a black bullet shows the active configuration. Image 4-14 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 34: Quick Access Keys

    The automatic startup allows to bypass the standby state i.e. start up without going in standby state after switching on the projector. This means that the automatic startup allows immediate restart of the projector after a power failure (breakdown), i.e. without passing through the standby state, by recovering the previous settings (previous source,...). R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 35 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Automatic startup 5. Press → to pull down the menu 6. Use ↓ or ↑ to enable/disable the automatic startup (image 4-17) 7. Press ENTER Image 4-17 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 36 4. Setup R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 37: Getting Started

    3. Follow the instruction wizard (size, position, order) 4. Repeat the previous steps to add the RGB source 5. Save the PiP layout in the PiP layout/Save as menu by typing a new name See image 5-5. Image 5-2 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 38 Video/Data PiP layout The added source(s) should be displayed with the right settings thanks to AutoImage. If it’s not the case (in case of some non standard source specifications) see Image files in the Advanced chapter. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 39: Adjusting The Image

    PH A SE T I N T C O L O R M EN U B A C K B R I G H T N C O N T R Image 5-6 Image 5-7 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 40 5. Getting started R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 41: Advanced

    In some cases an alphanumeric value (file name, ...) has to be entered. Use ↑ or ↓ to scroll through the char- acter values once the input field is activated. Following characters can be browsed in this particular order: Decimal scroll list: 0123456789 Signed decimal scroll list: 0123456789- ASCII scrolllist:ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789+-*/&@#.;.abcdefghijklmnopqrstuvwxyz R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 42: Source Selection

    3. Use ↑ or ↓ to select one of the different sources ( Press → to Pull down if the item has a submenu) 4. Press ENTER to confirm your choice On the screen appears now the selected source. Image 6-3 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 43: Composite Video

    6. Advanced Image 6-4 The Barco logo on the menu indicates the presence of a signal, the digit indicates the shortcut key on the RCU. The 3 first sources (Data on BNC’s, Component Video & RG(s)B) refer to the 5-cable input, the position of the indication “1”...

  • Page 44: S-Video

    If the extended mode is disabled, the submenu contains only 1 selection (2 selections if the Audio & Video option is installed). 6. Press ENTER to confirm your choice A white bullet indicates the selected video source which now appears on the screen. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 45: General Menu

    3. Press ↓ to Pull down the General menu 4. Use ↑ or ↓ to select Pause (image 6-7) 5. Press ENTER to activate the Pause function A brief sound indicates that the shutter has been activated. Image 6-7 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 46: Freeze

    7. Use ↑ or ↓ to browse to the input field 8. Use ←or→ , the numeric keys on the remote or the keypad to change the countdown setting 9. Press MENU or BACK to exit or to go back to the previous menu R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 47: Audio (Optional)

    A dialog box is displayed (image 6-12) LED is red : audio input is mute LED is green : input is active (linked image source is selected) LED is orange : image source is not selected Image 6-11 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 48: Audio Settings

    6. Use the arrow keys to select and change the settings Note: The default value for the volume is 43, this corresponds to a gain factor of 1 (volume in = volume out). Image 6-13 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 49: Identification

    On the screen appears a text box. In this case the projector is an iDR500 (image 6-16) 6. Press MENU or BACK to exit or to go back to the previous menu Image 6-15 Image 6-16 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 50: Image Menu

    Correct image settings are important for a good image reproduction. The image settings are made through a dialog box with a scroll bar. Minimal, maximal and actual values are indicated. These settings can also be done directly via the RCU’s dedicated buttons, except for the sharpness. Image 6-17 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 51: Contrast

    6. Use ↓ or ↑ to select Brightness 7. Press ENTER On the screen appears now a sliderbox (image 6-20) 8. Use ←or → , the numeric keys on the remote, or the keypad to change the Brightness R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 52: Color

    2. Press → to select the Image item 3. Press ↓ to Pull down the Image menu 4. Use ↑ or ↓ to select settings 5. Press → to pull down the menu 6. Use ↓ or ↑ to select sharpness R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 53: Gamma

    4. Use ↑ or ↓ to select settings 5. Press → to pull down the menu 6. Use ↓ or ↑ to select Noise reduction 7. Press ENTER On the screen appears now a sliderbox R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 54: Aspect Ratio

    The aspect ratio setting forces the projector to project an image using a defined aspect ratio : • • 16:9 • • Auto The settings do not refer to the aspect ratio of the source ! R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 55 3. Press ↓ to Pull down the Image menu (image 6-26) 4. Use ↑ or ↓ to select Aspect ratio 5. Use → open the Aspect ratio menu 6. Use ↑ or ↓ to select the desired ratio 7. Press ENTER to confirm R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 56: Show Native Resolution

    The aim here is to always show the resolution of the source independently of the resolution of the LCD panels. This way better image reproduction is obtained since no up or down scaling is done on the source. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 57 The default mode shows always the native ratio and forces the native resolution of the panels (part of the image blanked where needed) When show native resolution is ON and the resolution of the source is higher than the panel resolution , use the arrow keys to scroll through the image (pan). R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 58: Keystone

    Use ← or →, the numeric keys on the remote, or the keypad to adjust the keystone. The Top and bottom adjustments affect the image differently. (image 6-31, image 6-32) Image 6-29 Image 6-30 Image 6-31 Top adjustment of the keystone Image 6-32 Bottom adjustment of the keystone R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 59: Color Temperature

    Follow the instructions on the wizard textbox. (image 6-34) Image 6-33 Image 6-34 6.4.6 Filmmode detection (video only) What can be done ? Some sources like common DVD material are derived from cinema 24 Hz sources (2/2 or 3/2 pull down method). R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 60 3. Press ↓ to Pull down the Image menu 4. Use ↑ or ↓ to select Filmmode detection 5. Press → to pull down the menu 6. Use ↓ or ↑ to enable or disable the Filmmode detection (image 6-37) 7. Press ENTER R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 61: White Peaking

    3. Press ↓ to Pull down the Image menu 4. Use ↑ or ↓ to select White peaking (image 6-38) 5. Press ENTER A slider box is displayed (image 6-39) 6. Adjust the white peaking to the desired value Image 6-38 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 62: Dynacolor

    The projector color gamut is defined by the triangle formed by the x, y coordinates of Red Green and Blue Due to the tolerance on optical components the x, y values of this color gamut of each projector will differ. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 63 Common Color Gamut The Common Color Gamut In a basic setup with 2 projectors, the perimeter of the Common Color Gamut is described by the 6 points of intersection of the 2 separate color gamuts. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 64 3. Push the ↓ key to pull down the Image menu. 4. Push the cursor key ↑ or ↓ to highlight Dynacolor and press ENTER to select. (image 6-45) The Dynacolor dialog box will be displayed. (image 6-46) R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 65 6. Advanced 5. Push the cursor key ← or → select enable/diasable and then ENTER. Image 6-45 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 66 The dialogbox shown here are as displayed in the iD R600 and iD Pro R600 (with the field White ).The dialogbox displayed in the iD R600+ and iD Pro R600+ contain the field White+ instead of White.
  • Page 67 The color bar of the adjusted coordinate will no longer be displayed in case the coordinate is not present within the gamut of the adjusted projector e.g. with the desired values for red set to x=660 and y= 318. (image 6-50) R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 68 Select a coordinate that is present in the common gamut e.g. with the desired values for red set to x=633 and y= 328. (im- age 6-51) 7. Repeat step 5 to 6 for all coordinates on both projectors. Both projectors will now operate within the same color gamut. Image 6-47 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 69 6. Advanced Image 6-48 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 70 6. Advanced Image 6-49 Red coordinates for both projectors Image 6-50 Coordinate is not present within the gamut of the adjusted projector R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 71: Blanking

    Image 6-51 Select a coordinate that is present in the common gamut Another way to determine the new coordinates is to use the DynacolorTool (software tool running on a laptop or PC), contact Barco for more information. 6.4.9 Blanking Blanking in the Image menu The blanking in general allows to blank unwanted video information (noise in the top or bottom of the image).
  • Page 72 Black balance : In the projector, we will set the brightness for each color until we get a 0% light output picture when projecting a 100% black image (image B). The changeover from min to max is indicated by the apparition of bright spots also called “digital noise” R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 73: Black Balance

    11. Adjust the Blue black level until bright spots appear on the black part of the image 12.Adjust the Red black level until bright spots appear on the black part of the image The projected image should know be noisy full black Image 6-56 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 74 11. Adjust the Blue white level (gain) until bright spots appear on the white part of the image 12.Adjust the Red white level (gain) until bright spots appear on the white part of the image The projected image should now be noisy neutral grey. Image 6-58 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 75: Agc On Video

    4. Use ↑ or ↓ to select AGC on Video 5. Press → to pull down the menu 6. Use ↓ or ↑ to enable or disable the AGC 7. Press ENTER A white bullet shows the active setting (image 6-60) R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 76: Manual Gain Control

    A scroll bar is displayed (image 6-62) 6. Use ← or →, the numeric keys on the remote, or the keypad to change the gain so as to obtain homogene white parts in the image. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 77: Tools

    Image settings : contrast, brightness, tint, color,... • Vertical and horizontal shift of each window all over the screen • Resizing of the window • Digital Zoom • Linking of (an) audio input(s) to a single or multiple windows R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 78 PiP: this button allows to browse through the different configurations, it has the same function as PiP select in the Tools menu. Since there is only one decoder (second decoder is optional), when in 2by2 configuration, Video1 and Video2 are derived from the same video source. 2. fixed layout 3. factory layouts R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 79: Pip Select

    4. Use ↑ or ↓ to select PiP add window 5. Press ENTER The source selection menu is displayed (image 6-66) In the lower part of the screen appears a wizard in 4 steps (image 6-67) R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 80: Pip Remove Window

    When a new layout is saved it is added to the PiP select menu. A fixed layout can be edited (re-sizing, re-positioning,...) but it can not be saved under its original name. How to save a layout ? 1. Press MENU to activate the Tool bar R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 81: Pip Rename Layout

    8. Use ↑ or ↓ to select the layout to be renamed 9. Press ENTER A dialog box is displayed (image 6-72) Use ← or →, the numeric keys on the remote, or the keypad to enter the name and exit with BACK or MENU. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 82: Pip Delete Layout

    7. Press ENTER A dialog box is displayed (image 6-73) 8. Use ↑ or ↓ to select the layout to be renamed 9. Press ENTER The layout is deleted and disappears from the dialog box Image 6-73 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 83: Pip Adjust

    Principle of color keying Take e.g. two image. One taken on a full color background and the other a normal image. The full color background will be replaced by the second image via the principle of color keying. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 84: Diagnostics

    5. Press → to pull down the menu 6. Use ↑ or ↓ to select the desired switching mode (image 6-78) 7. Press ENTER A white bullet shows the active effect. The next source switching will be done using the selected effect R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 85: Background

    3. Press ↓ to Pull down the Signal menu 4. Use ↑ or ↓ to select Background 5. Press → to pull down the menu 6. Use ↑ or ↓ to select the desired background (image 6-79) 7. Press ENTER Image 6-79 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 86: Lamp Management

    3. Press ↓ to Pull down the Lamp menu 4. Use ↑ or ↓ to select Runtimes (image 6-80) 5. Press ENTER A textbox is displayed (image 6-81) Image 6-80 Image 6-81 6.7.2 Mode What are the different lamp modes ? Single mode R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 87 4. Use ↑ or ↓ to select Mode 5. Press → to pull down the menu 6. Use ↑ or ↓ to select the desired background (image 6-83) 7. Press ENTER A bullet shows the active mode. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 88: History

    2. Press → to select the Lamp item 3. Press ↓ to Pull down the Lamp menu 4. Use ↑ or ↓ to select History (image 6-84) 5. Press ENTER A textbox is displayed (image 6-85) Image 6-84 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 89: Reset Runtime

    The lamp runtime should only be reset when placing a new lamp. ARNING Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician. How to reset the lamp runtime in the iQ/iD ? 1.

  • Page 90: Runtime Warning

    6. Advanced Image 6-87 ARNING Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician. How to reset the lamp runtime in the SIM5Plus? 1. Press MENU to activate the Tool bar 2.

  • Page 91: Image Files Menu

    6. Use ←or →, the numeric keys on the remote, or the keypad to change the runtime warning setting. Image 6-89 Image 6-90 ARNING Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician. Image files menu Overview •...

  • Page 92: Auto Image

    What can be done ? Auto Image creates the best suited image file for the connected source. It calculates/measures several source parameters : • Total pixels per line • Start pixel • Phase • Contrast/Brightness levels R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 93 The Auto Image setup in the Display setup menu affect only Auto Image if it is launched via the RCU key or at automatic file creation. Launching AutoImage via the menu involves complete checking of all parameters. Auto Image can also be launched via the RCU with the dedicated AutoImage key. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 94: Edit File

    A dialog box is displayed (image 6-97) 9. Use ←or →, the numeric keys on the remote, or the keypad to edit and change the values, confirm with ENTER Note: greyed out fields can not be updated (total pixels) Image 6-95 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 95: Which Items Can Be Adjusted

    • Horizontal start in pixels • Horizontal period in ns • Active vertical lines • Vertical start in lines Advanced video settings Image 6-98 The advanced button enables the advanced settings for a video source. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 96: Advanced Data Settings

    The input format settings are used to "tell more" about the signals connected on the BNC’s, it completes the information in the source selection menu. - RGB is selected by default and means that an RGB signal is connected to the BNC’s - PR/Y/PB must be selected whenever: R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 97: Rename File

    A text box is displayed (image 6-104) Use ←or →, ↓ or ↑ the numeric keys on the remote, or the keypad to edit and change the values, confirm with ENTER. Image 6-102 Image 6-104 Image 6-103 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 98: Copy

    2. Press → to select the Image files item 3. Press ↓ to Pull down the Image files menu 4. Use ↑ or ↓ to select delete (image 6-108) 5. Press ENTER A dialog box is displayed (image 6-109) R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 99: Forced File Load

    5. Press → to open the menu (image 6-110) 6. Use ↑ or ↓ to select the desired layer 7. Press ENTER Forced file load is activated for this layer (this is shown with a bullet) R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 100: Display Setup

    The full screen representation will not guarantee the best image quality, therefore the Show native resolution has to be selected. The show native resolution function on the other hand forces to use the native resolution of the source. The Full screen representation function overrules the show native resolution function. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 101: Startup Screen

    A screenshot can be taken from an active projected image. This screenshot is then saved in a 4 MB RAM and can be used as background. Each new screenshot erases the previous logo therefore a warning message is displayed asking the user to confirm. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 102: Menu Bar Position

    2. Press → to select the Display setup item 3. Press ↓ to Pull down the Display setup menu 4. Use ↑ or ↓ to select Status bar position 5. Press ENTER 6. Use ↑ or ↓ to position the status bar R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 103: Sliderbox Position

    4. Use ↑ or ↓ to select AutoImage setup 5. Press ENTER A dialog box is displayed. (image 6-116) 6. Use the arrow keys to select the desired item and press ENTER to activate or disactivate the item. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 104: Blanking

    Note that here the blanking is only done on the display i.e. the setting is not saved in the image file. in other words only one type of blanking (setting) can be done independently of the source. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 105: Soft Edge

    Black level of the images 6.9.10.1 Introduction Why Soft Edge? When working in a multichannel setup the projector and its Soft Edge possibilities allow an image blending that gives the appearance of a single view. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 106 Adjustable overlapping area Light output per image 100% image 1 image 2 Total composite light output 100% image 1 image 2 Image 6-120 Light modulation in Soft Edge R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 107: Soft Edge Overlap Zone (Horizontal Soft Edge)

    What can be done with the Soft Edge border menu? Within this menu the width of the blending zone is set up. How to select a border? 1. Press MENU to activate the menu bar. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 108: Adjusting With The Arrow Keys

    The border line will move in the desired direction and the light output in the overlap area will be adapted to. (image 6-123) Set first the width of the first projector and repeat for the second one. (image 6-124, image 6-125) R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 109 6. Advanced Image 6-123 Width selections Image 6-124 Width set up for projector 1 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 110: Black Level Of The Images

    Use the up or down arrow key to select the adjustment (All, Red, Green or Blue) Use the left or right arrow key to select the adjustment direction and speed. Press ENTER to increment or decrement the value. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 111: Installation

    How to Zoom/focus or shift ? 1. Press MENU to activate the Toolbar 2. Press → to select the Installation 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Lens adjustment (image 6-128) R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 112: Security

    8. Use the arrow keys to select YES and press ENTER to confirm A dialog box is displayed Enter your name, company name,... (this information is displayed in the identification menu) (image 6-133) 9. Press ACCEPT R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 113 6. Advanced A dialog box is displayed. Enter the PIN code, and confirm it. (image 6-134) An informative text box is then displayed. Press ENTER or BACK to escape. (image 6-135) Image 6-131 Image 6-132 R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 114: Change Password

    A dialog box is displayed. (image 6-137) 6. Use ← or → , the numeric keys on the remote , or the keypad to enter and confirm the new password. Each character is displayed as an asterisk. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 115 6. Advanced Image 6-136 Image 6-137 The new password is accepted if the new password and the confirmed password coincide. If the password is forgotten contact a Barco authorized technician. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 116 6. Advanced R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 117: A.1 Table Overview

    8. Fpix MHz: pixel frequency 9. Ptot : total pixels on one horizontal line. 10. Pact: active pixels on one horizontal line. 11. Ltot: total lines in one field 12. Lact: active lines in one field. R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 118 PAM800 1120x375i 44,936 36,443 50,000 1372 1120 PC98_2 1120x375i 39,994 32,835 47,840 1457 1120 PC98_3 1120x750 60,000 50,000 78,569 1571 1120 S1152_66 1152x900 66,004 61,846 94,500 1528 1152 S1152_76 1152x900 76,637 71,809 108,000 1504 1152 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 119 1280 1069 1024 SXGA_75 1280x1024 79,974 134,997 1688 1280 1066 1024 SXGA_76 1280x1024 81,103 134,955 1664 1280 1066 1024 SXGA_85 1280x1024 91,149 157,506 1728 1280 1072 1024 SXGA_L 1280x1024 62,500 84,000 1344 1280 1041 1024 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 120 1024 XGA_43 1024x384 35,500 44,872 1264 1024 XGA_60 1024x768 60,000 48,360 64,996 1344 1024 XGA_70_1 1024x768 70,000 56,475 74,999 1328 1024 XGA_70_2 1024x768 70,000 57,052 78,047 1368 1024 XGA_72 1024x768 71,955 58,140 80,000 1376 1024 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 121 1344 1024 XGA75_GS 1024x768 74,534 59,701 79,284 1328 1024 SXGA_60 1280x1024 63,980 107.997 1688 1280 1066 1024 SXGA+_60_2 1400x1050 65,574 122,230 1864 1400 1089 1050 SXGA+_60_3 1400x1050 65,104 122,396 1880 1400 1085 1050 Table A-1 R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 122 A. Standard Image Files R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 123: B.1 Using The Osd

    3. Press ↓ to Pull down the Tools menu 4. Use ↑ or ↓ to select Diagnostics 5. Press → to pull down the menu 6. Press ENTER to select Lamps and power supply (image B-2) A text box is displayed (image B-3) R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 124 B. Troubleshoot Image B-2 Image B-3 For Barco certified service technicians only: For more information on possible hardware failures refer to the Service Manual. R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 125: C.1 Cleaning The Lens

    • Dustfilters • Cleaning C.2.1 Dustfilters Location of the filters There are 4 filters located at different positions Filter1: Lamp 1 Filter2 : Lamp 2 Filter 3 : X-Cube filter Filter 4 : Input filter R5976837 BARCO ID R600/R600+ 21/09/2006...

  • Page 126: Cleaning

    5. Re-insert the dust filter by sliding it back in the filter housing. Image C-2 Location of the x-cube filter and its handle Image C-4 lamp & X-Cube filters removed Image C-3 Lamp filter removal R5976837 BARCO ID R600/R600+ 21/09/2006...
  • Page 127 At that time it is strongly recommended to replace or clean the dustfilter under the X-cube. Failing to do so, will strongly reduce the lifetime of the LCD’s and the analyzers. The manufacturer reserves itself the right to refuse warranty repair if the projector was working with dirty dustfilters. R5976837 BARCO ID R600/R600+ 21/09/2006...

This manual is also suitable for:

Id r600+

Table of Contents
