  • Page 1 I600 User guide ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com Registered office: Barco (Wuxi) Technology Co., Ltd. No. 38, Chunhui Middle Road, XiShan District, 214101 Wuxi CHINA 注册办事处: 巴可（无锡）科技有限公司 中国无锡市锡山区春晖中路38号，邮编214101...

  • Page 3: Guarantee And Compensation

    Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 5: Table Of Contents

    HD for fully enclosed projection systems...........................18 HD in function of modifying optics ............................20 HD calculation of multi-projector stacks..........................20 Compliance ......................................21 Download Product Manual ................................21 2 I600 introduction.....................................23 Projector orientation ..................................24 Projector components ..................................24 Projector airflow ....................................24 Projector status ....................................25 Pulse Prospector.....................................26 3 Local keypad......................................27...
  • Page 6 Pulse SFP input ....................................53 8 Projector maintenance ..................................55 Software update....................................56 Cleaning the lens ....................................57 Cleaning the exterior of the projector...........................58 A Specifications ......................................59 I600-4K8 specifications ................................60 I600-4K10 specifications ................................61 I600-4K15 specifications ................................63 Specifications SDI inputs................................65 Specifications HDMI inputs ...............................66 Specifications HDBaseT inputs...............................67 Specifications DisplayPort 1.2 inputs ..........................68...
  • Page 7 R5917789 /02 I600...
  • Page 8 R5917789 /02 I600...

  • Page 9: Safety

    Read this document attentively. It contains important information to prevent personal injury while installing and using the I600 product. Furthermore, it includes several cautions to prevent damage to the unit. Ensure that all safety guidelines, safety instructions and warnings mentioned in this chapter are understood and followed before installing the I600 product.

  • Page 10: General Considerations

    • All warnings on the unit and in its documentation manuals must be adhered to. • Installation and preliminary adjustments must be performed by qualified Barco personnel or by authorized Barco service dealers. • This product contains no user serviceable parts. Attempts to modify/replace mechanics or electronics inside the housing or compartments will violate any warranties and may be hazardous.

  • Page 11: Important Safety Instructions

    • If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. R5917789 /02 I600...

  • Page 12: To Prevent Personal Injury

    Do not place flammable or combustible materials near the projector! • Barco projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.

  • Page 13: To Prevent Battery Explosion

    Never use water on an electrical fire. Always have service performed on this projector by qualified service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 14 Operation • Only use Barco projection lenses that are supported for the I600. Using other lenses will damage the internal optics. For suitable lenses contact Barco or see Barco website. •...

  • Page 15: Product Safety Labels

    Safety Data Sheets for Hazardous Chemicals For safe handling information on chemical products, consult the Safety Data Sheet (SDS). SDSs are available upon request via safetydatasheets@barco.com. 1.3 Product safety labels Light beam related safety labels Safety labels explanation and location:...

  • Page 16: High Brightness Precautions: Hazard Distance

    3.0 meter to prevent potential exposure, for example by an individual sitting on another individual's shoulders, within the HD. These values are minimum values and are based on the guidance provided in IEC 62471-5:2015 section 6.6.3.5. R5917789 /02 I600...
  • Page 17 (RZ) in the venue must be established. This can be done by using physical barrier, like a red rope as illustrated in Image 1–2. The restricted area sticker can be replaced by a sticker with only the symbol. Image 1–2 R5917789 /02 I600...

  • Page 18: Hd For Fully Enclosed Projection Systems

    The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.

  • Page 19: Restricted Area

    The light emitted from the screen within the observation shall never exceed the RG2 exposure limit, determined at 10 cm. The HD can be neglected if the measured light at the screen surface is below 5000 diffuse cd/m² or 15000 LUX. R5917789 /02 I600...

  • Page 20: Hd In Function Of Modifying Optics

    Safety 1.6 HD in function of modifying optics Hazard distance I600 4K15 I600 4K10 I600 4K8 Throw Ra�o (TR) Image 1–4 Hazard Distance Throw Ratio No hazard distance measures applicable when the hazard distance is shorter than 1 meter. Like with any bright light source, do not stare into the beam and prevent close exposure to children.

  • Page 21: Compliance

    1.9 Download Product Manual Download product manual Product manuals and other related documentation are available online at https://www.barco.com. Search or browse to the product support page or scan the QR code on the product ID-label or on the box label. To see all service documentation (e.
  • Page 22 Safety R5917789 /02 I600...

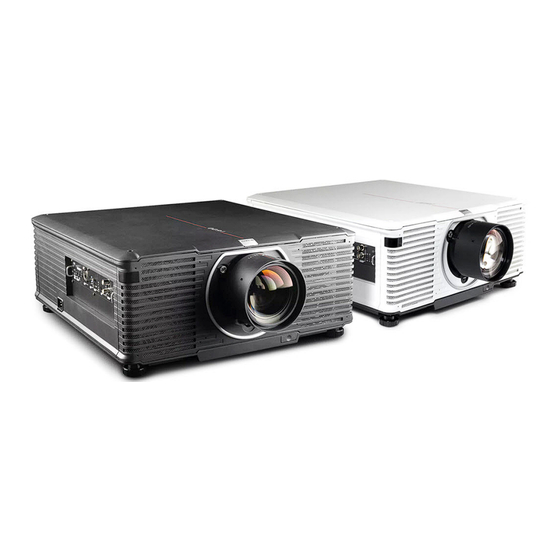

  • Page 23: I600 Introduction

    Pulse Prospector ..........................26 About this chapter This chapter and by extension this whole document, the I600 user guide, is intended for the user who want’s to get familiar with the projector hardware parts. It describes the input and communication boards, the remote control unit, local keypad, how to power up the projector, the different power states, product specifications and much more.

  • Page 24: Projector Orientation

    I600 introduction 2.1 Projector orientation Orientation convention This manual refers to the left side of the projector as the side at your left hand when standing behind the projector and looking at the projection screen in front of the projector.

  • Page 25: Projector Status

    I600 introduction Image 2–4 CAUTION: Never block the air inlets or outlets of the projector. Always ensure that clean cool air, compliant with the specified ambient temperature, can freely enter the air inlets of the projector. 2.4 Projector status Projector status indicator LEDs The Control &...

  • Page 26: Pulse Prospector

    The Pulse software has regular new releases due to continuous improvements. Hence, the Pulse Prospector user guide is subject to updates. Download the latest version of the user guide from the Barco website using following link: https://www.barco.com/support.

  • Page 27: Local Keypad

    Local keypad Local keypad functions........................28 Local keypad backlight........................28 LCD touch panel...........................29 R5917789 /02 I600...

  • Page 28: Local Keypad Functions

    Refer to the Pulse OSD user guide for detailed guidance on all software features of the projector. The Pulse software has regular new releases due to continuous improvements. Hence, the Pulse OSD user guide is subject to updates. Download the latest version of the user guide from the Barco website using following link: https://www.barco.com/support.

  • Page 29: Lcd Touch Panel

    Select and drag sliders to adjust slider value. The LCD menus can occasionally be slightly different in layout compared with the OSD menu, due to a more optimal layout regarding to the touch functionality of the LCD. R5917789 /02 I600...
  • Page 30 Local keypad R5917789 /02 I600...

  • Page 31: Basic Remote Control Unit

    About the basic remote The I600 projector is standard delivered with a basic remote control unit (without batteries). While this remote control unit has a more limited amount of available features compared with the optional Pulse RCU, it will be able to help you out with basic controls.

  • Page 32: Basic Remote Functions

    The basic remote control is powered by two (2) standard AAA batteries. The needed batteries are not included in the packaging. The battery compartment is on the back side of the basic remote control. The following image illustrates how to open the battery compartment. R5917789 /02 I600...
  • Page 33 Make sure the polarities match the + and - marks, as depicted on the inside of the battery compartment. There is a risk of explosion if the batteries are installed incorrectly. R5917789 /02 I600...
  • Page 34 Basic Remote Control Unit R5917789 /02 I600...

  • Page 35: Pulse Remote Control Unit

    Pulse RCU “button pressed indicator” ....................38 Pulse RCU “RGB filter” button .......................38 Pulse RCU “Projector OSD on/off” button ..................39 Using the XLR connector of the RCU .....................39 Using the mini-jack connector of the RCU..................39 Pulse RCU silicone protection sleeve (optional) ................40 R5917789 /02 I600...

  • Page 36: Pulse Rcu Functions

    Install the batteries before using the Pulse RCU. CAUTION: Replace with the correct battery type. Use two AA size batteries. There is a risk of explosion if the battery is replaced with an incorrect type. Required parts AA size alkaline battery (two pieces) R5917789 /02 I600...

  • Page 37: How To Install

    The Pulse remote control unit has at the front side an on/off button (reference 1 Image 5–6). Switching off the remote control prevents that unwanted commands are send due to an accidental key press. Furthermore, switching the RCU off will extend the battery lifetime of the remote control. R5917789 /02 I600...

  • Page 38: Pulse Rcu "Button Pressed Indicator

    • Green only • Blue only • Red + Green • Green + Blue • Red + Blue • Red + Green + Blue • After powering up, the colors will always revert back to full RGB. R5917789 /02 I600...

  • Page 39: Pulse Rcu "Projector Osd On/Off" Button

    Connecting a cable with the mini-jack connector will reset the broadcast address of the RCU to its default value '0'. How to use the mini-jack connector Connect a cable with the mini-jack connector (reference 2, Image 5–9) of the RCU. R5917789 /02 I600...

  • Page 40: Pulse Rcu Silicone Protection Sleeve (Optional)

    5.9 Pulse RCU silicone protection sleeve (optional) Introduction Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non-slip and soft to the touch. All buttons and openings remain accessible. The only thing that needs to be removed is the XLR cover.
  • Page 41 Pulse Remote Control Unit Image 5–12 R5917789 /02 I600...
  • Page 42 Pulse Remote Control Unit R5917789 /02 I600...

  • Page 43: Powering On / Off

    Powering on / off Power modes ..........................44 Power On the projector .........................44 Power Off the projector .........................45 Power mode transitions.........................46 R5917789 /02 I600...

  • Page 44: Power Modes

    Powering on / off 6.1 Power modes Overview The I600 has 4 different power modes: Description Mode ECO STANDBY Light source is switched off and projector electronics are powered down. STANDBY Light source is switched off and Control & Communication module is active.

  • Page 45: Power Off The Projector

    CAUTION: Never switch off the projector by means of unplugging mains cord or by cut down of mains power. Barco advises to keep the projector always powered and use the ECO STANDBY mode for low power consumption. How to unplug the projector Follow the previous power off procedure to switch off the projector.

  • Page 46: Power Mode Transitions

    1. Send WOL. 2. Wait for connection to façade/prospector (the unit does provide feedback when it’s ready). 3. Wait for ready state. 4. Sleep 5 seconds. 5. Send JSON “power on” command (to switch in ON mode). R5917789 /02 I600...
  • Page 47 This implies that all peripherals (switchers, routers...) in the network path must support WOL and configured correctly to support WOL. R5917789 /02 I600...
  • Page 48 Powering on / off R5917789 /02 I600...

  • Page 49: Inputs & Communication

    Inputs & Communication Control & Communication module....................50 Pulse HDBaseT input module ......................51 Pulse Quad Combo input Mk III .....................51 Pulse Quad DP 1.2 input .......................53 Pulse SFP input..........................53 R5917789 /02 I600...

  • Page 50: Control & Communication Module

    SYNC I/O BNC sync port in/out for projector control. This is mainly used in multiple projector installations with requirement of synchronization between the units. Status LEDs Projector status LEDs (see chapter “Projector status”, page 25). Infra Red receiver. R5917789 /02 I600...

  • Page 51: Led Behavior

    The SDI port D functions as a loop-through output for any signal placed on port B. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. R5917789 /02 I600...

  • Page 52: Dmx Interface

    Non-conformity issues can be caused by older or low quality cables unable to handle the requested resolution, or connected signal converters manipulating the signal out of the supported video standards. For specifications about the supported inputs for SDI, HDMI, HDBaseT and DisplayPort 1.2 see chapter “Specifications”, page R5917789 /02 I600...

  • Page 53: Pulse Quad Dp 1.2 Input

    “Specifications”, page 7.5 Pulse SFP input The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output Board. However, it is possible that the SFP Input board can also work with other third-party devices that support 12G over fiber.

  • Page 54: Use Cases

    4. Loop-through mode See projector installation manual for detailed instructions on how to install/configure the SFP input. WARNING: Only by Barco trained and qualified technicians are allowed to install the SFP input. Optical Tranceiver to comply with Laser Class 1, IEC60825–1: 2014...

  • Page 55: Projector Maintenance

    Projector maintenance Software update ...........................56 Cleaning the lens..........................57 Cleaning the exterior of the projector ....................58 R5917789 /02 I600...

  • Page 56: Software Update

    CAUTION: Do not power off or unplug the projector while the software update is ongoing. Similarly, do not remove the USB flash drive while the software update is ongoing. Prerequisites First download the latest projector software package from the Barco's website, using the following link: https:// www.barco.com/support.

  • Page 57: Cleaning The Lens

    Always contact Barco if you want to make sure a downgrade will not hurt your device.

  • Page 58: How To Clean The Lens

    Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Pressurized air cans are not efficient if there is too much dust on the surface, the pressure is too low R5917789 /02 I600...

  • Page 59: A Specifications

    Specifications I600-4K8 specifications .........................60 I600-4K10 specifications .......................61 I600-4K15 specifications .......................63 Specifications SDI inputs.......................65 Specifications HDMI inputs......................66 Specifications HDBaseT inputs ......................67 Specifications DisplayPort 1.2 inputs....................68 Specifications SFP inputs......................69 R5917789 /02 I600...

  • Page 60: I600-4K8 Specifications

    Specifications A.1 I600-4K8 specifications Notes The specifications in this document are preliminary Projector type 4K UHD 1-chip DLP digital projector Technology 0.8" DMD™ IR for NVG Resolution 3840 x 2400 (4K UHD) 1920 x 1200 (native) Brightness 8000 ISO lumen Brightness uniformity >90%...

  • Page 61: I600-4K10 Specifications

    Extendable up to 5 years Service: single swap Blend horizontal and vertical edge blending Supported when using of the optional 4x1.2 DP input board A.2 I600-4K10 specifications Notes The specifications in this document are preliminary Projector type 4K UHD 1-chip DLP digital projector Technology 0.8"...
  • Page 62 3840 x 2400 (4K UHD) 1920 x 1200 (native) Brightness 10000 ISO lumen Brightness uniformity >90% Contrast ratio Full field 1500:1 Barco DynaBlack® 10,000:1 Light source Blue laser phosphor with inorganic phosphor wheel Light source lifetime 20.000hrs Aspect ratio 16:10 Native Color space...

  • Page 63: I600-4K15 Specifications

    Extendable up to 5 years Service: single swap Blend horizontal and vertical edge blending Supported when using of the optional 4x1.2 DP input board A.3 I600-4K15 specifications Notes The specifications in this document are preliminary Projector type 4K UHD 1-chip DLP digital projector Technology 0.8"...
  • Page 64 Specifications Contrast ratio Full field 1500:1 Barco DynaBlack® 10,000:1 Light source Blue laser phosphor with inorganic phosphor wheel Light source lifetime 20.000hrs Aspect ratio 16:10 Native Color space REC 709 Orientation 360° rotation no restrictions Sealed DLP™ core 24/7 operation...

  • Page 65: Specifications Sdi Inputs

    12G-SDI follows the SMPTE ST-2082-1 and ST-2082-10 standards. SDI specifications Specification Value Color space YCbCr Color depth 10 bpc Chroma sampling 4:2:2 Audio not supported For future release • 3D support • Interlaced support • Segmented frame support R5917789 /02 I600...

  • Page 66: Specifications Hdmi Inputs

    Up to 1280 x 720 @60 Hz Up to 2048 x 1080 @50 Hz Single link 3G-SDI Level A Up to 2048 x 1080 @60 Hz Quad link 3G-SDI “Barco Single link 1920 x 1200 @50 Hz, @59.94 Hz and Link” @60 Hz Quad link...

  • Page 67: Specifications Hdbaset Inputs

    1920 x 2160 @60 Hz • 2048 x 2160 @50 Hz • 2048 x 2400 @60 Hz Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2160 @60 Hz R5917789 /02 I600...

  • Page 68: Specifications Displayport 1.2 Inputs

    1280 x 1080 @120 Hz • 1280 x 1600 @60 Hz For the full list of video timings, see Appendix Only 1x1 layout is supported on the Quad Combo input boards. The Quad DP1.2 input supports all layout configurations. R5917789 /02 I600...

  • Page 69: Specifications Sfp Inputs

    Up to 1920 x 1080 @25 Hz • Up to 1920 x 1080 @30 Hz • Up to 1280 x 720 @50 Hz • Up to 1280 x 720 @60 Hz For the full list of video timings, see Appendix R5917789 /02 I600...
  • Page 70 @60 Hz. 2048 x 1080 @50 Hz and @60 Hz 12G-SDI Single link 3840 x 2160 @50 Hz and @60 Hz 4096 x 2160 @50 Hz and @60 Hz 3840 x 2400 @50 Hz, @59.94 and @60 R5917789 /02 I600...

  • Page 71: B Dimensions

    Dimensions Projector outer dimensions ......................72 Mounting holes bottom plate......................73 R5917789 /02 I600...

  • Page 72: Projector Outer Dimensions

    Dimensions B.1 Projector outer dimensions Image B–1 All dimensions given in mm. R5917789 /02 I600...

  • Page 73: Mounting Holes Bottom Plate

    Dimensions B.2 Mounting holes bottom plate M8 (FIXATION POINTS 4X) 32,5 Ø 42 (FEET X4) 457,1 Image B–2 All dimensions given in mm. R5917789 /02 I600...
  • Page 74 Dimensions R5917789 /02 I600...

  • Page 75: C Video Timing Tables

    Overview video timings SDI Inputs ....................77 Overview video timings HDMI 2.0 inputs..................78 Overview video timings DisplayPort 1.2 inputs ................79 Overview video timings HDBaseT inputs ..................82 About this chapter This chapter contains the tables with video timings for video interfaces. R5917789 /02 I600...

  • Page 76: Overview Video Timings

    C.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.

  • Page 77: Overview Video Timings Sdi Inputs

    3G-SDI Single Link & Quad Link 1920 x 1080 3G-SDI Single Link & Quad Link 1920 x 1200 3G-SDI “Barco Link” Single Link & Quad Link 1920 x 1200 59.94 3G-SDI “Barco Link” Single Link & Quad Link 1920 x 1200 3G-SDI “Barco Link”...

  • Page 78: Overview Video Timings Hdmi 2.0 Inputs

    3G-SDI Single Link & Quad Link 3840 x 2160 12G-SDI Single Link 3840 x 2160 12G-SDI Single Link 3840 x 2400 12G-SDI “Barco Link Single Link Ultra” 3840 x 2400 59.94 12G-SDI “Barco Link Single Link Ultra” 3840 x 2400 12G-SDI “Barco Link...

  • Page 79: Overview Video Timings Displayport 1.2 Inputs

    4096 x 2160 C.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates R5917789 /02 I600...
  • Page 80 1920 x 1080 1920 x 1080 1920 x 1080 4 Quadrant mode (2 x 2 Active 3D layout) 1920 x 1200 1920 x 1200 10. Other layout modes are only available on Input boards that have multiple DP inputs. R5917789 /02 I600...
  • Page 81 Passive Stereo 3840 x 2400 3840 x 2400 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 11. Other layout modes are only available on Input boards that have multiple DP inputs. R5917789 /02 I600...

  • Page 82: Overview Video Timings Hdbaset Inputs

    1920 x 2160 1920 x 2160 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 2160 2048 x 2160 2560 x 1600 2560 x 1600 3840 x 2160 R5917789 /02 I600...
  • Page 83 Video timing tables Video timing Vertical refresh rate (Hz) (active pixels x active lines) 3840 x 2160 3840 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 R5917789 /02 I600...
  • Page 84 Video timing tables R5917789 /02 I600...

  • Page 85: D Regulatory

    Contact information........................86 Production information ........................86 Product compliance EU.........................86 Product compliance UK.........................87 Product compliance US.........................87 Product compliance Turkey ......................87 Product compliance EAC ......................88 Product compliance China......................88 Product compliance Taiwan ......................89 D.10 Trademark notice..........................91 D.11 Product privacy statement ......................91 R5917789 /02 I600...

  • Page 86: Contact Information

    Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. Manufacturer Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Registered office: Barco (Wuxi) Technology Co., Ltd.

  • Page 87: Product Compliance Uk

    Warning : This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. D.4 Product compliance UK UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom D.5 Product compliance US...

  • Page 88: Product Compliance Eac

    According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. 零件项目(名称) 有毒有害物质或元素...

  • Page 89: Product Compliance Taiwan

    Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...
  • Page 90 Regulatory 限用物質含有情況標示聲明書 (Declaration of the Presence Condition of the Restricted Substances Marking) 設備名稱：　投影機，　型號（型式）： I600-4K8, I600-4K10, I600-4K15 Equipment name: Projector, Type designation: I600-4K8, I600-4K10, I600-4K15 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead...

  • Page 91: Trademark Notice

    Users feature, or via a factory reset executed as administrator. Logs may contain user names and IP addresses and are subject to the retention policy, but can’t be deleted by the user. The user can send a request to dataprotection@barco.com. R5917789 /02...
  • Page 92 Regulatory R5917789 /02 I600...

  • Page 93: Glossary

    The light beam is considered (to be) unsafe for exposure if the distance from a person to the light source is less than the HD. R5917789 /02 I600...
  • Page 94 Glossary R5917789 /02 I600...

  • Page 95: Index

    Hazard Distance 16, 18 Address 86 Modifying optics 20 Control 50 Multi-projector 20 Projector stacks 20 Hazardous Chemicals 15 HDBaseT 51 HDBaseT inputs Dimensions 71 Specifications 67 Mounting holes 73 HDMI inputs Outer dimensions 72 Specifications 66 DisplayPort 1.2 inputs R5917789 /02 I600...
  • Page 96 LED behavior 53 Power on 43 SFP inputs Power On 44 Specifications 69 Privacy 91 Software update 56 Projector Software upgrade 56 Components 24 Source Orientation 24 Fiber 53 Pulse Prospector SFP 53 Connecting 26 Small Form-factor Pluggable 53 R5917789 /02 I600...
  • Page 97 Index Specifications 59 DisplayPort 1.2 inputs 68 HDBaseT inputs 67 HDMI inputs 66 I600-4K10 61 I600-4K15 63 I600-4K8 60 SDI inputs 65 SFP inputs 69 Standard source files 75 Start 23 Status 25 Switching Off 45 Switching On 44 Touch panel 29...
  • Page 98 Index R5917789 /02 I600...
  • Page 100 R5917789 /02 | 2024-09-19 www.barco.com...
