Page 1: Network Adapter

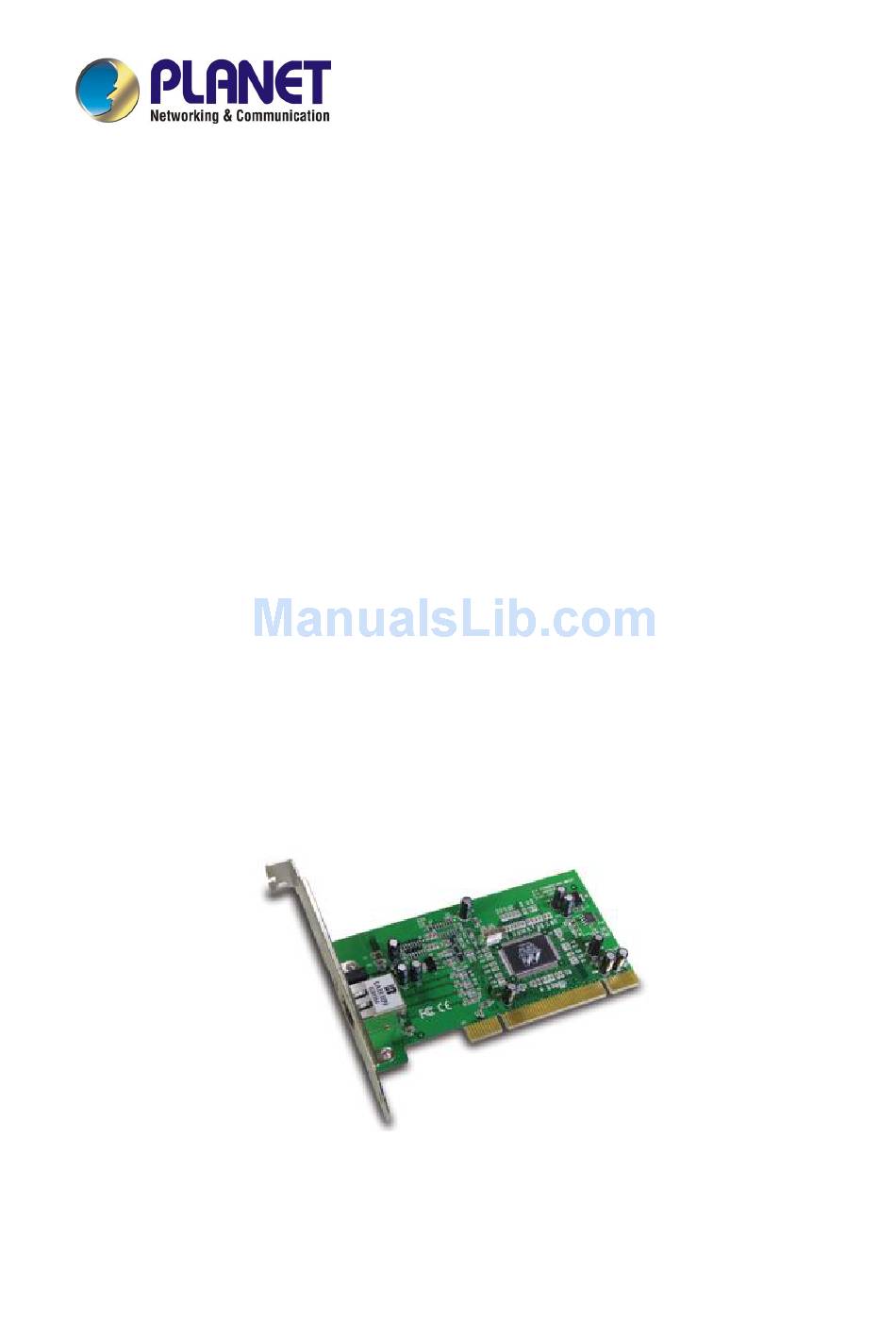

32-bit 10/100/1000Mbps Ethernet Network Adapter ENW-9606 User’s Manual Version 1.0... -
Page 2: Fcc Caution
Copyright Copyright 2003 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. -
Page 3: Table Of Contents
OCUMENTATIONS CHAPTER 2 HARDWARE INSTALLATION ................. 2 2.1 P ........................2 RODUCT ESCRIPTION 2.1.1 Overview..........................2 2.1.2 Features ..........................2 2.1.3 Front Panel And LEDs ......................2 2.2 ENW-9606 I .........................3 NSTALLATION CHAPTER 3 DRIVER INSTALLATION................. 4 3.1 I 2000 ....................4 NSTALLING RIVER INDOWS 3.2 I... -
Page 4: Chapter 1 Introduction
The ENW-9606 supports both current motherboards (32-bit/33MHz PCI) and also the new PCI interface (32-bit/66MHz) and operating systems of the next generation, future-proofing your investment. Lower TCO (Total Cost of Ownership) and with increased performance, the ENW-9606 is now the choice of data server or just right for your powerful desktop PCs. -
Page 5: Chapter 2 Hardware Installation
ACPI Power Management, compliant to ACPI 2.0 2.1.3 Front Panel And LEDs The faceplate of ENW-9606 has 2 LEDs: Link, and Act. Figure 2-1 shows the faceplate of ENW-9606. Table 2-1 explains the function and state of the LEDs. 10/100/1000Mbps RJ-45 Ethernet Port... -
Page 6: Enw-9606 Installation
Step 8: Power on the PC and refer to next chapter to install the driver of this adapter. Note: Please do not install the ENW-9606 in a shared PCI slot. Avoid any PCI slot next to an ISA slot because this is often a shared slot and does not support bus mastering. -
Page 7: Chapter 3 Driver Installation
Make sure the ENW-9606 has been successfully installed in your computer before you start to install the driver. If this is the first time you are installing the ENW-9606 into your computer, Window will automatically detect it and updates the hardware information database. To install the driver provided, follow these steps: Note: The following installation operates under Window 2000. - Page 8 You can click “Browse” to find the driver location. (Assume "E" is your CD-ROM drive, the driver can be found in E:\Drivers\Win2000). Please click “OK” to continue. Windows will show this screen to prompt you that it found a driver for the device you are installing, please click “Next”...
-
Page 9: Installing Driver To Windows Xp
Install ENW-9606 into your PC’s PCI slot. Power on the PC and insert Driver Disk into CD-ROM drive. Windows XP will detect ENW-9606 and ask you to install driver. Please select the second option and click “Next”. Please select “Include this location in the search” and then click “Browse” to find out ENW-9606 driver location to install driver. -
Page 10: Install Driver To Other Operating Systems
3.3 Install Driver To Other Operating Systems When you want to install ENW-9606 to other OS, you can refer to the Readme.txt in each driver folder and follow the installation to install ENW-9606 to the operating system you are using. -
Page 11: Chapter 4 Specifications
Chapter 4 Specifications 4.1 Cable Specifications Ethernet Type Cable Requirements Maximum Length 10BASE-T Category 3 or better, UTP or STP 328 ft (100M) 100BASE-TX Category 5 or better, UTP or STP 328 ft (100M) 1000BASE-T Category 5e or better, UTP or STP 328 ft (100M) Caution: Please do not use telephone cables. -
Page 12: Supported Os
4.5 Supported OS Drivers Support: Windows 98/Me/NT/2000/XP Linux Kernel 2.2.20, 2.4.20 Solaris 7 or higher Novell 5.x and 6.x... -
Page 13: Appendix Aadvanced Properties
Appendix A Advanced Properties The default settings of the adapter should work in most cases. However, if you experience any unusual circumstances during your installation, these settings may help you to trouble shoot the adapter. Do not change any of these settings without a thorough understanding of the specifics of your network. The following table briefly explains the function of each property.
