Summary of Contents for Planet ENW-9801

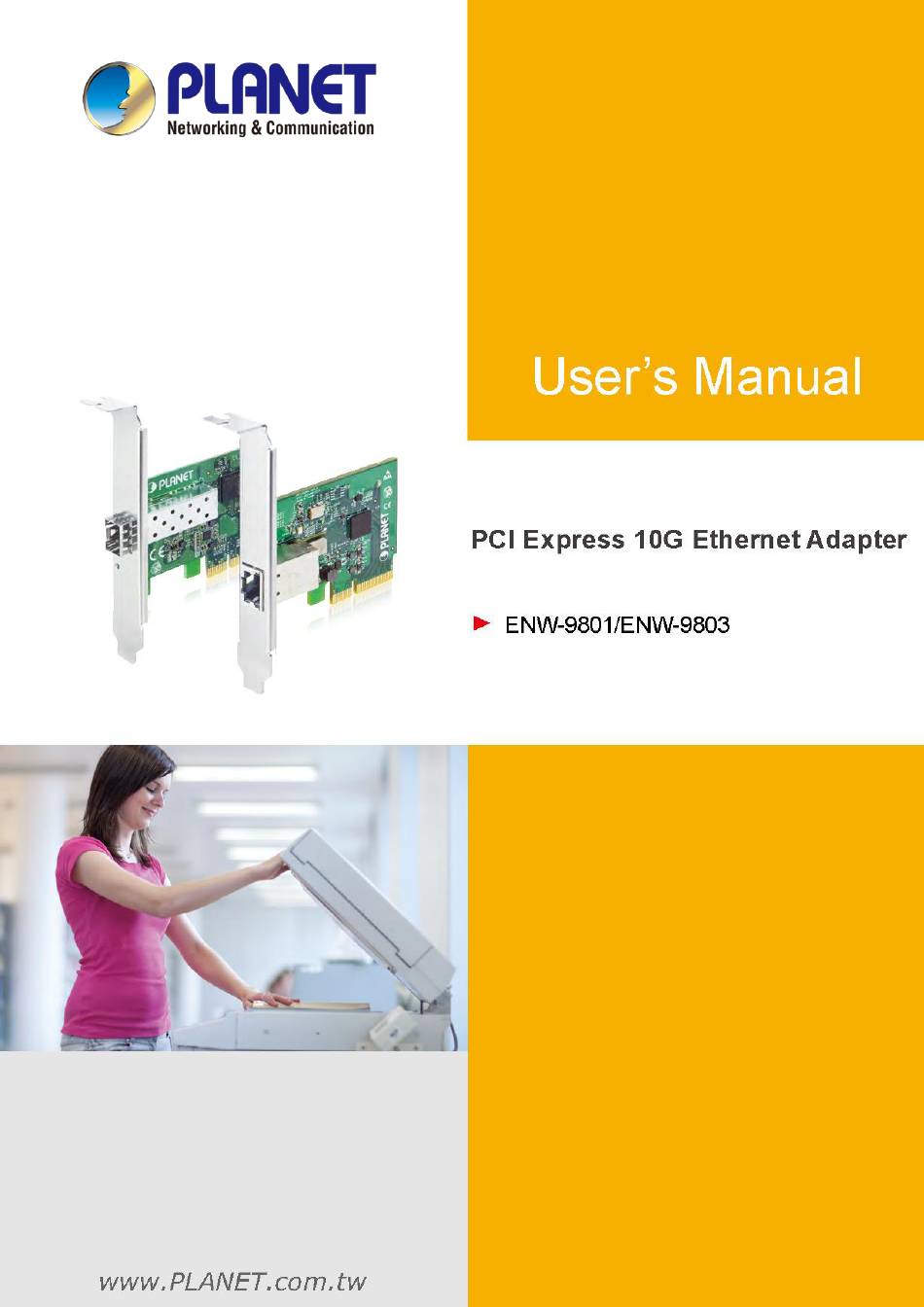

- Page 1 User Manual of ENW-9801 - 2 -...
- Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
-
Page 3: Table Of Contents
User Manual of ENW-9801 Table of Contents CHAPTER 1: INTRODUCTION ....................4 1.1 Package Contents .......................... 6 1.2 Features ............................7 1.3 Gathering Tools and Documentations .................... 7 CHAPTER 2: HARDWARE INSTALLATION ................8 2.1 LED Definition ..........................8 2.2 Hardware Installation ........................9 CHAPTER 3: DRIVER INSTALLATION .................. -
Page 4: Chapter 1: Introduction
Moreover, the ENW-9801 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it further optimizes throughput and wire-speed packet transfer performance without the risk of packet loss. - Page 5 User Manual of ENW-9801 10 Gigabit Performance Boosts Network Traffic The ENW-9801 is an optimal solution to Ethernet applications by providing low-power budgets and small form factor. It offers simple integration into any PCI Express x4 server slot via one SFP+ slot. The onboard controller featured on the ENW-9801 integrates embedded technology and a 10GbE MAC into a single chip that offers up to 10Gbps of network throughput.
-
Page 6: Package Contents
User Manual of ENW-9801 1.1 Package Contents Thank you for purchasing PLANET ENW-9801 PCI Express 10 Gigabit Ethernet adapter. It supports x4 PCI Express interfaces. The 10 Gigabit Ethernet adapter provides a highly cost-effective solution that can upgrade your existing Ethernet infrastructure to the 10 Gigabit network. -
Page 7: Features
Complies with Microsoft and Linux Platforms 1.3 Gathering Tools and Documentations To install the ENW-9801 PCI Express 10 Gigabit Ethernet adapter, you need the following items: A suitable screw driver Your operating system documentation ... -
Page 8: Chapter 2: Hardware Installation
Chapter 2: Hardware Installation 2.1 LED Definition Below are the pictures of the faceplates of the ENW-9801, consisting of two LEDs: Link Speed and Link/ACT. Table 1 explains the function and state of the LEDs. Figure 1: Long Profile Bracket of ENW-9801... -
Page 9: Hardware Installation
2.2 Hardware Installation System Requirement PCI-Express support ENW-9801: The Server/Workstation supports PCI Express v2.0 (5GT/s) and PCI Express (PCIe) x4 interface. Below are the different PCI Express Slots. The ENW-9801 is compatible with PCIe 2.0 x4 slots or larger. - Page 10 User Manual of ENW-9801 Hardware Installation Step 1: Please turn off your PC. Step 2: Remove any metal decorations from your hands and wrists. Step 3: Remove the cover from your PC. Step 4: Locate an empty PCI Express slot and remove the corresponding back plate. Save the screw for use in Step 6.
-
Page 11: Chapter 3: Driver Installation
2: This operation is under Win10 which it is similar to Win7/8/Windows Server 2008/Windows Server 2012/Windows Server 2016/Windows Server 2019. 1. After installing the ENW-9801 to your PC and booting it up, Windows 10 will detect it and you have to install driver. - 11 -... - Page 12 User Manual of ENW-9801 2. Please move and right-click the mouse button for Ethernet Controller item and select “Update Driver Software”. 3. Please select “Browse my computer for driver software” for the next step. - 12 -...
- Page 13 User Manual of ENW-9801 4. Please click “Browse” to specify the driver location to install. Click “Next” to continue. The driver is being installed. - 13 -...
- Page 14 User Manual of ENW-9801 5. Click the “Close” button to complete the driver installation. - 14 -...
-
Page 15: Chapter 4: Specifications
User Manual of ENW-9801 Chapter 4: Specifications ENW-9801 Product 10Gbps SFP+ PCI Express Server Adapter Hardware Specifications Hardware Version Attachment Interface PCI Express rev. 2.0 specification x4 Interface Media Interface SFP+ Connector Optical Module Options LRM, LR, SR Jumbo Frame... - Page 16 User Manual of ENW-9801 IEEE 1588 Precision Time Protocol IEEE 802.3az Energy Efficient Ethernet (EEE) Environment Temperature: 0 ~ 50 degrees C Operating Relative Humidity: 5 ~ 95% (non-condensing) Temperature: -10 ~ 85 degrees C Storage Relative Humidity: 5 ~ 95% (non-condensing) Package ...
-
Page 17: Chapter 5: Available 10Gbps Modules
User Manual of ENW-9801 Chapter 5: Available 10Gbps Modules MTB-RJ 1-Port 10GBASE-T SFP+ Copper Fiber Optic Module - 30m MTB-SR 1-Port 10GBASE-SR SFP+ Fiber Optic Module - 300m 1-Port 10GBASE-SR SFP+ Fiber Optic Module – 2km MTB-SR2 MTB-LR 1-Port 10GBASE-LR SFP+ Fiber Optic Module - 10km...
