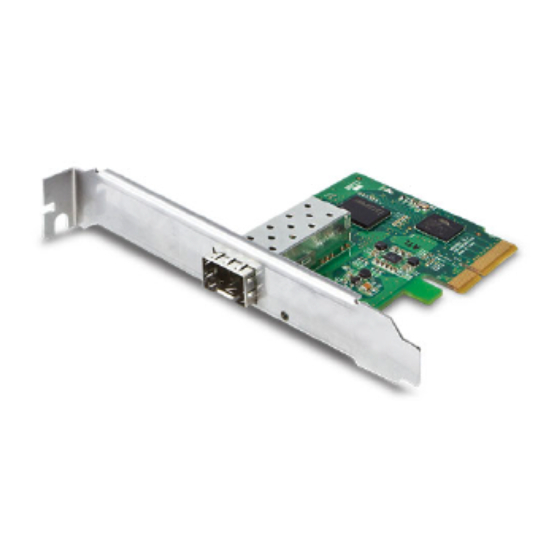

Planet ENW-9801 User Manual
Pci express 10g ethernet adapter
Hide thumbs
Also See for ENW-9801:
- User manual (20 pages) ,
- Installation manual (2 pages) ,
- Quick installation manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Planet ENW-9801
Summary of Contents for Planet ENW-9801

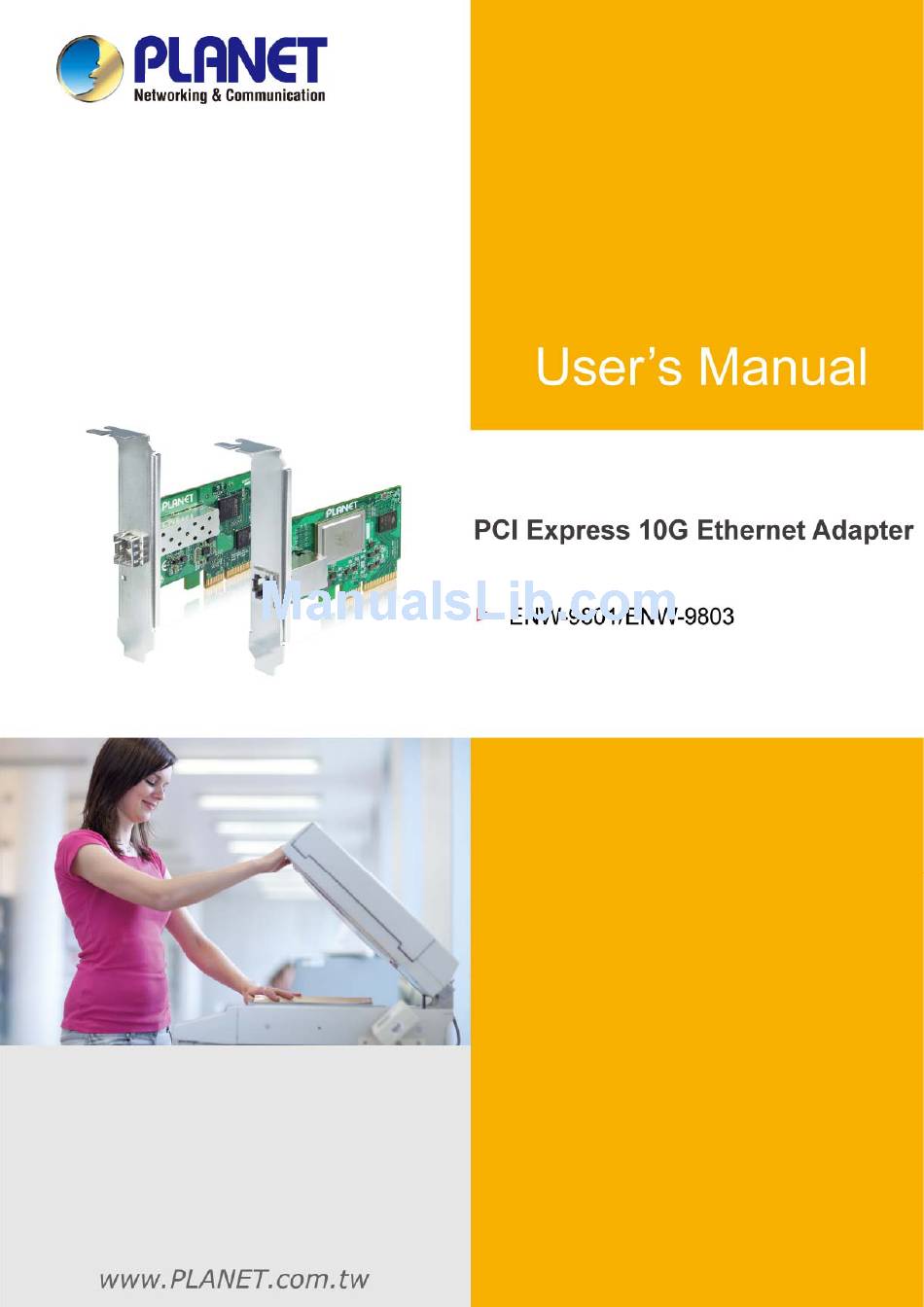

- Page 1 User Manual of ENW-9801 /ENW-9803 - 2 -...
- Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
- Page 3 User Manual of ENW-9801 / ENW-9803 Revision User’s Manual on PLANET 10Gbps PCI Express Server Adapter FOR MODEL: ENW-9801 and ENW-9803 REVISION: 2.1 (May 2014) Part No.: EM-ENW9801v2_ENW9803_v2.1 (2080-A14100-001) - 3 -...
-
Page 4: Table Of Contents
User Manual of ENW-9801 / ENW-9803 Table of Contents CHAPTER 1 INTRODUCTION....................5 1.1 Package Contents .......................... 7 1.2 Features ............................7 1.3 Gathering Tools and Documentations .................... 7 CHAPTER 2 HARDWARE INSTALLATION ................8 2.1 LED Definition ..........................8 2.2 Hardware Installation........................ -
Page 5: Chapter 1 Introduction
User Manual of ENW-9801 / ENW-9803 Chapter 1 Introduction Thank you for purchasing PLANET ENW-9801 / ENW-9803 PCI Express 10 Gigabit Ethernet adapter. It supports x4, PCI Express interface. The 10 Gigabit Ethernet adapter provides a highly cost-effective solution to upgrading to the 10 Gigabit network with your existing Ethernet infrastructures. - Page 6 User Manual of ENW-9801 / ENW-9803 Standard 802.1Q VLAN Support Moreover, the ENW-9801 / ENW-9803 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 16K jumbo frame ability and IEEE 802.3 flow control support, it further optimizes throughput and wire-speed packet transfer performance without risk of packet loss.
-
Page 7: Package Contents
IEEE 802.3x full-duplex flow control Complies with Microsoft and Linux platforms 1.3 Gathering Tools and Documentations To install the ENW-9801 / ENW-9803 10 Gigabit Ethernet adapter, you need the following items: A suitable screw driver Your operating system documentation ... -
Page 8: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation 2.1 LED Definition Below are the pictures of the faceplates of the ENW-9801, consisting of one LED: Link / ACT. Table 1 explains the function and state of the LED. Figure 1: Long Profile Bracket of ENW-9801... -
Page 9: Hardware Installation
User Manual of ENW-9801 / ENW-9803 Figure 4: Low Profile Bracket of ENW-9803 Color Description Orange Indicates the link is established at 10Gbps full duplex mode. Link Speed Indicates the link is established at 1000Mbps full duplex mode. Green Indicates the link is established at 100Mbps full duplex mode. - Page 10 User Manual of ENW-9801 / ENW-9803 Step 6: Secure the 10 Gigabit Ethernet adapter with the screw you saved in step 4. Step 7: Replace the PC cover. Step 8: Power on your PC and refer to the next section to install driver.
-
Page 11: Chapter 3 Driver Installation
Installation procedures are similar to those of the Windows 8 / Windows Server 2008 / Windows Server 2012. After installing the ENW-9801 / ENW-9803 on your PC and booting it up, Windows 7 will detect it and you have to install the driver. - Page 12 User Manual of ENW-9801 /ENW-9803 Please move and right-click the mouse button for Ethernet Controller item and select “Update Driver Software” Please select “Browse my computer for driver software” for the next step. - 12 -...
- Page 13 User Manual of ENW-9801 /ENW-9803 Insert the bundled CD into the CD-ROM driver. Please click “Browse” to specify the driver location to install. (Assume "E" is your CD-ROM drive, the driver can be found in E:\ DR-ENW-9801v2_ENW-9803 Driver). Click “Next” to continue.
- Page 14 User Manual of ENW-9801 /ENW-9803 The driver is installing… Click “Close” button to complete the driver installation. - 14 -...
- Page 15 User Manual of ENW-9801 / ENW-9803 For more details, please refer to the manual of our bundled CD-ROM. - 15 -...
-
Page 16: Chapter 4 Specifications
User Manual of ENW-9801 / ENW-9803 Chapter 4 Specifications Product ENW-9801 ENW-9803 Hardware Specifications Attachment Interface PCI Express rev. 2.0 specification x4 interface LRM, LR, SR Optical Module Options 1Mbit internal memory Memory Jumbo Frame 9K / 16K Bytes Link Speed:...
