Planet ENW-9605 Instruction Manual

PCI Gigabit Ethernet Adapter

Quick Installation Guide

– 1 –

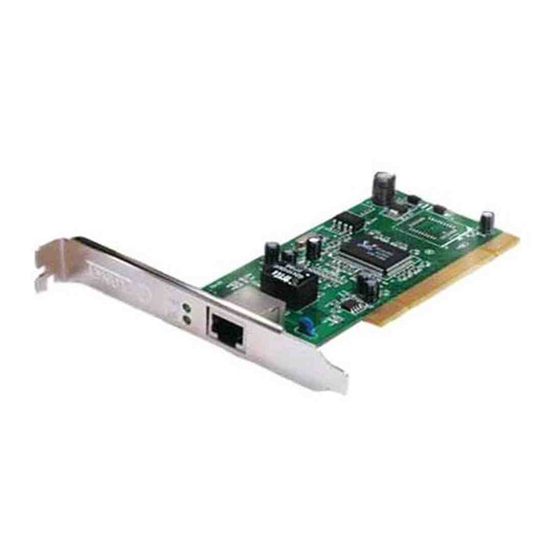

Thank you for purchasing PLANET PCI Gigabit Ethernet
adapter. It is a 10/100/1000Mbps Ethernet adapter for
PCI local bus-compliant PCs. Supports bus mastering
architecture and Auto-Negotiation for 10/100/1000Mbps
Ethernet connection. Provides a highly cost-effective
solution to upgrading to the Gigabit network with your
existing Ethernet infrastructures.

1. Package Content

PCI Gigabit Ethernet Adapter x 1
Quick Installation Guide x 1
CD Disk x 1

2. Hardware Installation

Step 1: Turn off the power of the PC.
Step 2: Remove any metal decorations from your
hands and wrists.
Version 1.0
Step 3: Remove the cover from your PC.
Step 4: Locate an empty, non-shared bus mastering
PCI slot and remove the corresponding back
plate. Save the screw for use in Step 6.
– 2 –

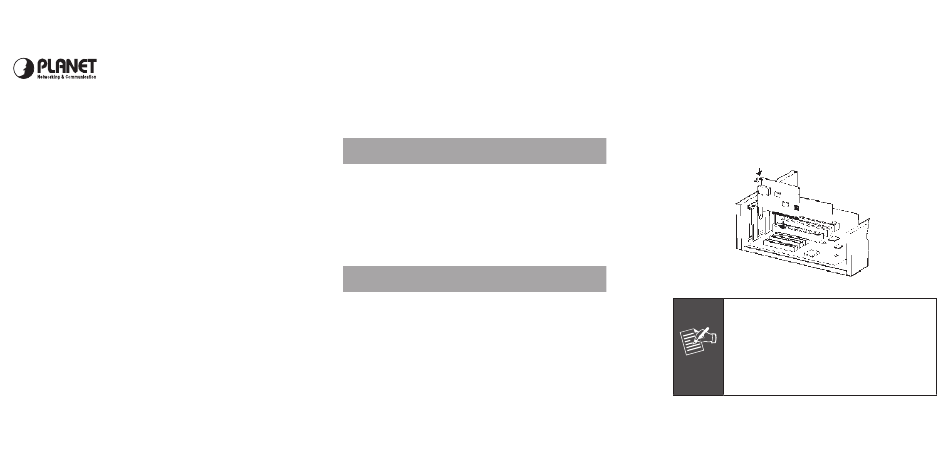

Step 5: Carefully insert the PCI Gigabit Ethernet
Adapter into the chosen slot and press firmly
with proper push to ensure it is fully seated in
the slot.
Step 6: Secure the PCI Gigabit Ethernet Adapter with
the screw you saved in step 4.
Step 7: Replace the PC cover.
Step 8: Power on your PC and refer to next section to
install driver.
Please do not install the PCI Gigabit
Ethernet adapter in a shared PCI slot.
Avoid any PCI slot next to an ISA slot
because this is often a shared slot
and does not support bus mastering.
Note
Please refer to the user's manual of the
motherboard for the information.
