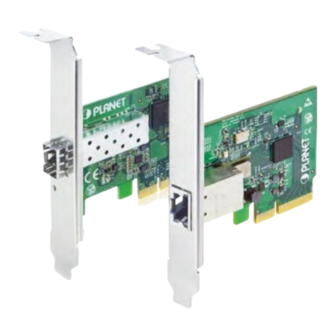

Planet ENW-9801 User Manual
Pci express 10g ethernet adapter
Hide thumbs
Also See for ENW-9801:
- User manual (20 pages) ,
- Installation manual (2 pages) ,
- Quick installation manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Planet ENW-9801
Summary of Contents for Planet ENW-9801

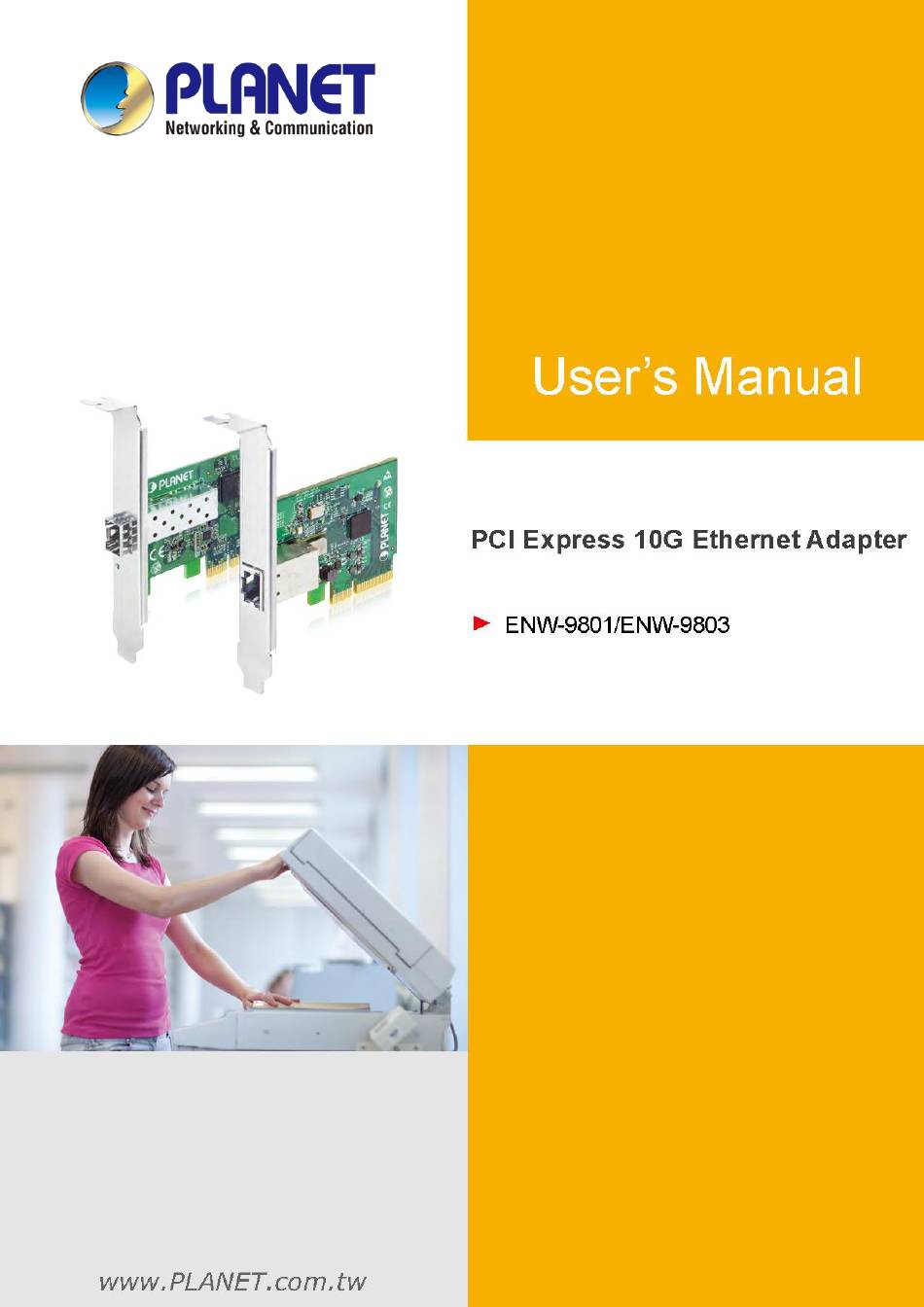

- Page 1 User Manual of ENW-9803 - 2 -...
- Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
-
Page 3: Table Of Contents
User Manual of ENW-9803 Table of Contents CHAPTER 1: INTRODUCTION ....................4 1.1 Package Contents .......................... 6 1.2 Features ............................7 1.3 Gathering Tools and Documentations .................... 7 CHAPTER 2: HARDWARE INSTALLATION ................8 2.1 LED Definition ..........................8 2.2 Hardware Installation ........................9 CHAPTER 3: DRIVER INSTALLATION .................. -
Page 4: Chapter 1: Introduction
User Manual of ENW-9803 Chapter 1: Introduction Enhanced from the current highly-praised version, PLANET ENW-9803 10GBASE-T PCI Express Server Adapter adopts Marvell AQtion LAN controller solution. It comes with PCI Express rev. 3.0 specification x4 interface and other advanced features as show below: ... - Page 5 The performance of throughput at rates up to 20Gbps is unbelievable, thus eliminating the bottleneck that exists with the current Gigabit network. PLANET ENW-9803 is designed to connect your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.
-
Page 6: Package Contents
User Manual of ENW-9803 1.1 Package Contents Thank you for purchasing PLANET ENW-9803 PCI Express 10 Gigabit Ethernet adapter. It supports x4 PCI Express interfaces. The 10 Gigabit Ethernet adapter provides a highly cost-effective solution that can upgrade your existing Ethernet infrastructure to the 10 Gigabit network. -
Page 7: Features
User Manual of ENW-9803 1.2 Features PCI Express rev. 3.0 specification x4 Interface 10Gbps throughput with 100-meter UTP cable Complies with IEEE 802.3an 10GBASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX Complies with IEEE P802.3bz (NBASE-T) 5GBASE-T and 2.5GBASE-T ... -
Page 8: Chapter 2: Hardware Installation
User Manual of ENW-9803 Chapter 2: Hardware Installation 2.1 LED Definition Below are the pictures of the faceplates of the ENW-9803, consisting of two LEDs: Link Speed and Link/ACT. Table 1 explains the function and state of the LEDs. Figure 1: Long Profile Bracket of ENW-9803 Figure 2: Low Profile Bracket of ENW-9803 Color Description... -
Page 9: Hardware Installation
User Manual of ENW-9803 2.2 Hardware Installation System Requirement PCI-Express support ENW-9803: The Server/Workstation supports PCI Express v3.0 (8GT/s) and PCI Express (PCIe) x4 interface. Below are the different PCI Express Slots. The ENW-9803 is compatible with PCIe 2.0 x4 slots or larger. Operating System Support: Windows Server 2008R2 64 bits Windows Server 2012R2 64 bits... - Page 10 User Manual of ENW-9803 Hardware Installation Step 1: Please turn off your PC. Step 2: Remove any metal decorations from your hands and wrists. Step 3: Remove the cover from your PC. Step 4: Locate an empty PCI Express slot and remove the corresponding back plate. Save the screw for use in Step 6.
-
Page 11: Chapter 3: Driver Installation
Before you begin the driver installation process, make sure you have the installation disks for your computer’s operation system. Installation on Windows 10 Before installing drivers of ENW-9803 server adapter, please visit PLANET ENW-9803 web pages to download the drivers for your operating system. https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=ENW-98&view=4#list 1: Window 10 and other Windows-based operating systems will detect server adapter and install driver automatically. - Page 12 User Manual of ENW-9803 2. Please move and right-click the mouse button for Ethernet Controller item and select “Update Driver Software”. 3. Please select “Browse my computer for driver software” for the next step. - 12 -...
- Page 13 User Manual of ENW-9803 4. Please click “Browse” to specify the driver location to install. Click “Next” to continue. The driver is being installed. - 13 -...
- Page 14 User Manual of ENW-9803 5.Click the “Close” button to complete the driver installation. - 14 -...
-
Page 15: Chapter 4: Specifications
User Manual of ENW-9803 Chapter 4: Specifications ENW-9803 Product 10GBASE-T PCI Express Server Adapter Hardware Specifications Hardware Version Attachment Interface PCI Express rev. 3.0 specification x4 interface Media Interface RJ45 connector Data Rate 10M/100M/1G/2.5G/5G/10Gbps Jumbo Frame 2K/4K/9K/16K Bytes 10G LNK Speed (Green)/100Mbps/1G/2.5G/5G LNK Speed (Amber) LED Indicators Dual Color LED LNK/ACT(Green) - Page 16 User Manual of ENW-9803 IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1GBASE-T Ethernet IEEE 802.3bz 2.5/5GBASE-T Ethernet Standards Compliance IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.1Q VLAN Tagging IEEE 802.3az Energy Efficient Ethernet (EEE) Environment Temperature: 0 ~ 50 degrees C Operating...
