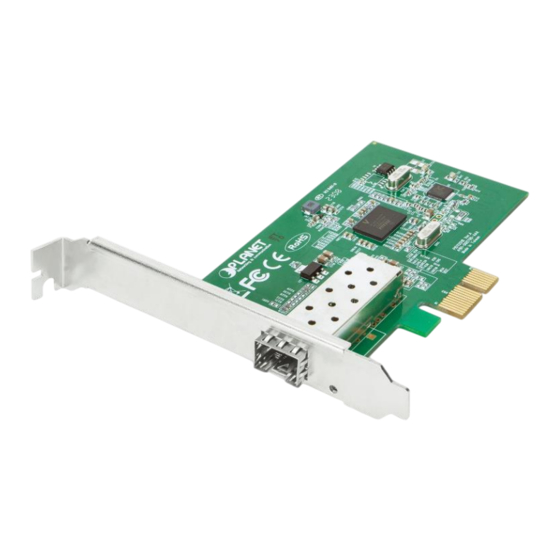

- Page 1 User Manual of ENW-9701 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter ENW-9701 - 1 -...
- Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred. Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET.
- Page 3 User Manual of ENW-9701 Revision User’s Manual of PLANET 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter FOR MODEL: ENW-9701 REVISION: 2.0 (May 2023) Part No.: EM-ENW-9701_v2.0 - 3 -...
-
Page 4: Table Of Contents
User Manual of ENW-9701 Table of Contents CHAPTER 1 INTRODUCTION ....................5 1.1 Package Contents ......................6 1.2 Features .......................... 6 1.3 Gathering Tools and Documentations ................6 CHAPTER 2 HARDWARE INSTALLATION ................7 2.1 LED Definition ......................... 7 2.2 Hardware Installation....................... 8 CHAPTER 3 DRIVER INSTALLATION .................. -
Page 5: Chapter 1 Introduction
ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server’s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software. -
Page 6: Package Contents
Low Power Consumption Windows Server, Win7/8/10/11, Linux, and MAC OS X Ready 1.3 Gathering Tools and Documentations To install the ENW-9701 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter, you will need the following items: A suitable screw driver Your operating system documentation ... -
Page 7: Chapter 2 Hardware Installation
User Manual of ENW-9701 Chapter 2 Hardware Installation 2.1 LED Definition The faceplate of the ENW-9701 shown below has a Link / ACT LED. Table 2-1 explains the function and state of the LED. Link / ACT LED Faceplate of ENW-9701... -
Page 8: Hardware Installation
User Manual of ENW-9701 2.2 Hardware Installation Step 1: Please turn off your PC. Step 2: Remove any metal decorations from your hands and wrists. Step 3: Remove the cover from your PC. Step 4: Locate an empty PCI Express slot and remove the corresponding back plate. Save the screw for use in Step 6. -
Page 9: Chapter 3 Driver Installation
User Manual of ENW-9701 Chapter 3 Driver Installation A device driver must be installed before your ENW-9701 can be used with your computer. This chapter describes how to install the driver for various operating systems. Before you begin the driver installation process, please visit PLANET ENW-9701 web pages to download the drivers for your operating system. -
Page 10: Installing Driver On Windows
Windows 8/10/11, Windows Server 2008/Windows Server 2012/Windows Server 2016/Windows Server 2019/Windows Server 2022. 1. After installing the ENW-9701 on your PC and booting it up, Windows 7 will detect it and you have to install the driver. - Page 11 3. Please select “Browse my computer for driver software” for the next step. 4. Please click “Browse” to specify the driver location to install. (Assume "E:\DR-ENW-9701 Gigabit Fiber Adapter" is the directory where driver files are located.) Click “Next” to continue.
- Page 12 User Manual of ENW-9701 The driver is installing… 5. Click the “Close” button to complete the driver installation. - 12 -...
-
Page 13: Chapter 4 Specifications
User Manual of ENW-9701 Chapter 4 Specifications ENW-9701 Product 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter Hardware Specifications PCI Express Host Bus Interface, 1 lane Attachment Interface PCI Express Rev 1.1 Media Interface SFP slot (LC Interface) SFP LC connector : Cabling Options 50/125μm &...
