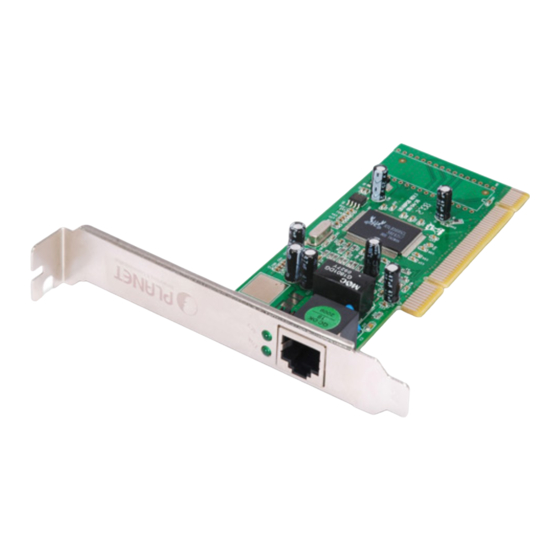

Planet ENW-9604 Quick Installation Manual

PCI Gigabit Ethernet Adapter
Quick Installation Guide
Thank you for purchasing PLANET PCI Gigabit Ethernet adapter. It is a 10/100/
1000Mbps Ethernet adapter for PCI local bus-compliant PCs. Supports bus
mastering architecture and Auto-Negotiation for 10/100/1000Mbps Ethernet
connection. The Gigabit Ethernet adapter provides a highly cost-effective solution
to upgrading to the Gigabit network with your existing Ethernet infrastructures.

Package Content

ENW-9604/9605/9605A x 1
Quick Installation Guide x 1
Drivers Diskette x 1

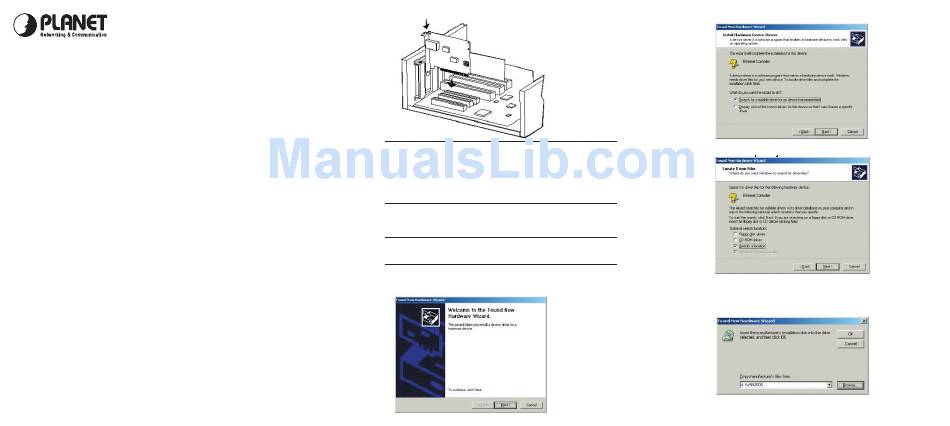

Hardware Installation

Step 1: Turn off the power of the PC.
Step 2: Remove any metal decorations from your hands and wrists.
Step 3: Remove the cover from your PC.
Step 4: Locate an empty, non-shared bus mastering PCI slot and remove the
corresponding back plate. Save the screw for use in Step 6.
Step 5: Carefully insert the PCI Gigabit Ethernet Adapter into the chosen
slot and press firmly with proper push to ensure it is fully seated
in the slot.
Step 6: Secure the PCI Gigabit Adapter with the screw you saved in step 4.
Step 7: Replace the PC cover.
Step 8: Power on your PC and refer to next section to install driver.
Version 1.0
Please do not install the PCI Gigabit Ethernet Adapter in
a shared PCI slot. Avoid any PCI slot next to an ISA slot

because this is often a shared slot and does not support
NOTE:
bus mastering. Please refer to the user's manual of the
motherboard for the information.

Installation on Windows 98/Me/2000

The following installation operates under Windows 2000.

NOTE:
Procedures will be similar for Windows 98/Me.
1. After insert ENW-9604/9605/9605A into your PC and boot up. Win-
dows will detect it and show a dialog box below, press "Next".
2. Please select the first option and click "Next" to continue.
3. Select "Specify a location" and click "Next".
4. Please click "Browse" to find the driver location. (Assume "A" is your
Floppy, the driver can be found in A:\Win2000). After find out the
driver, please click "OK" to continue.
