MODEL TYPE: YS1084
Acoustic Master Custom
A C O U S T I C - G U I T A R
A M P L I F I E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Acoustic Master Custom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Traynor Acoustic Master Custom

Summary of Contents for Traynor Acoustic Master Custom

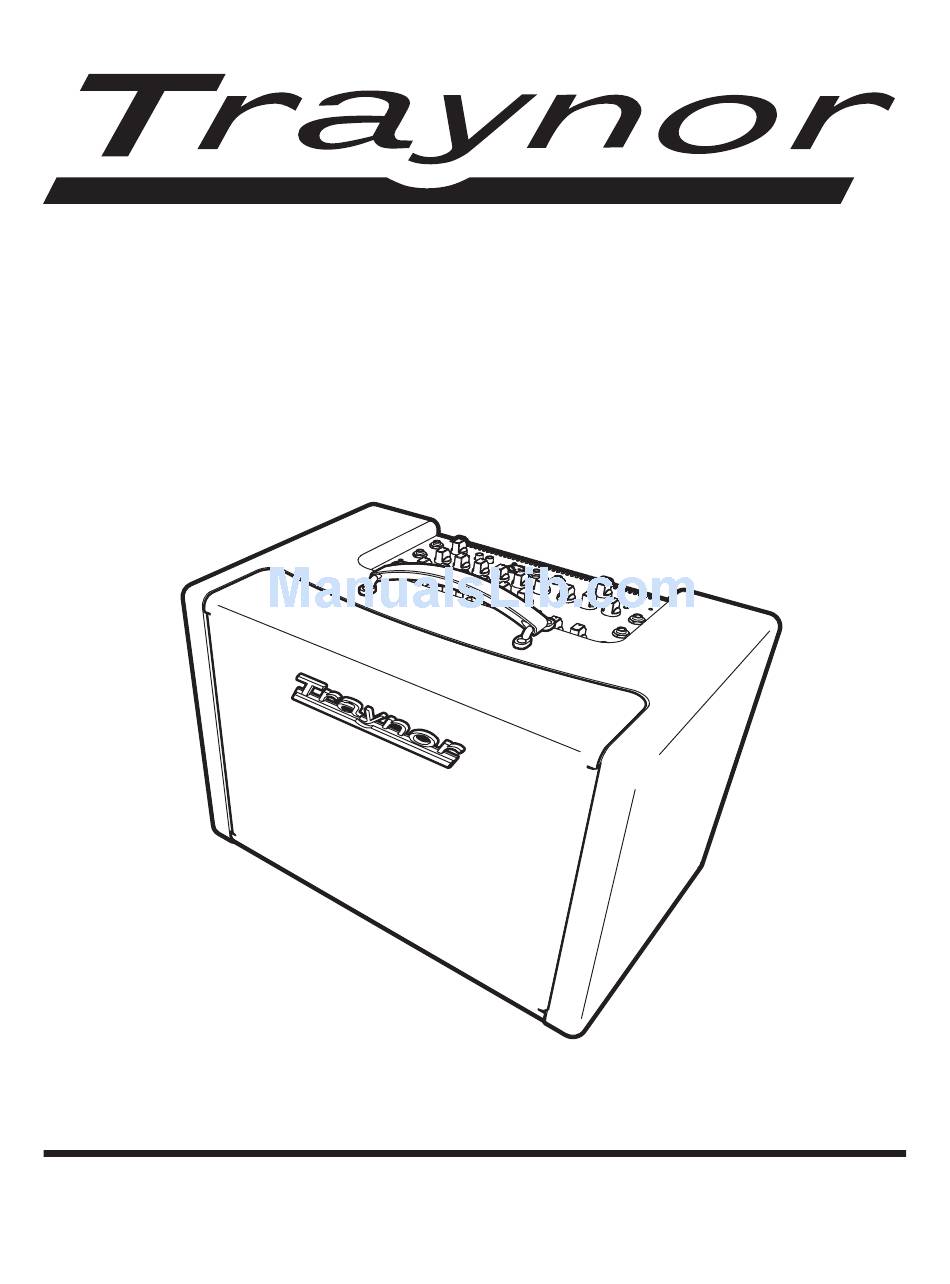

  • Page 1 MODEL TYPE: YS1084 Acoustic Master Custom A C O U S T I C - G U I T A R A M P L I F I E R...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.
  • Page 3 The compact size and light weight of the Acoustic Master Custom makes it easy to take anywhere. Active or passive pickups of your acoustic guitar, a microphone, and even line-level signals can all be used.

  • Page 4: Master Volume Control

    Effects RCA Input Line Out Aux Gain Footswitch Master Pre EFX Post-EFX Acoustic Master Lift Input Tip: Custom Ch 1-2 Ring: Ch 3 POWER Ch 1& 2 Effects Feedback Ch 1 Bass Lo-Mid Hi-Mid Treble Gain 1 Insert Select Modify Notch Input Ch 1...
  • Page 5 Acoustic Master Custom uses a DSP (Digital Signal Processor) to create 16 custom Traynor effects. The Mix control is used to blend in the amount of the original, clean signal with the wet signal while the Modify control alters the nature (parameter) of the selected effect.

  • Page 6: Master Volume

    This channel has been designed to be used with a line-level signal and optimized for stage monitoring but can also be used as a 4th input for instruments or other line-level signals. The audio signal from the Aux Input goes directly to the Acoustic Master Custom's amplifier even bypassing the Master Volume.
  • Page 7 Les dimensions compacte et le poids léger du Acoustic Master Custom le rend facile à transporter partout où vous le désirez. Vous pouvez brancher à l’amplificateur les sorties actives ou passives des micro de guitare acoustique, un microphone, et même tous les signaux de niveau ligne.
  • Page 8 Effects RCA Input Line Out Aux Gain Footswitch Master Pre EFX Post-EFX Acoustic Master Lift Input Tip: Ch 1-2 Custom Ring: Ch 3 POWER Ch 1& 2 Effects Feedback Ch 1 Bass Lo-Mid Hi-Mid Treble Gain 1 Insert Select Modify Notch Input Ch 1...
  • Page 9 Note: Un commutateur au pied optionnel peut être utilisé pour contourner les effets internes de l’Acoustic Master Custom. Utilisez un commutateur au pied à deux canaux tel que le Apex AFS2 pour permettre de contourner indépendamment les canaux 1 et 2 (partagé) et 3.
  • Page 10 9. Effets Numériques (Canal 3) Le canal 3 est équipé d’un processeur d’effet numérique entièrement indépendant des canaux 1 et 2 permettant l’utilisation sur deux canaux, de deux effets complètement différents . La commande Mix est utilisée pour y mélanger la quantité de signal original et dépourvue d’effet. Utilisez la commande Modify pour modifier l’effet sélectionné.

  • Page 11: Prise Pour Commutateur Au Pied

    18. Commande Master Volume La commande Master est utilisée pour augmenter ou réduire le niveau général de votre Acoustic Master Custom. Cette commande n’a aucun effet sur le niveau du signal de sortie ligne ou sur la boucle d’effet. 1/4-inch T.R.S.
  • Page 13 Specifications Model: Acoustic Master Custom Type: Acoustic Combo Amplifier Cabinet Program Power (Watts): Cabinet Impedance (ohms): Power @ min. impedance (Watts): Minimum Impedance (ohms): Burst Power - 2 cycle: Speaker Configuration - LF (Size / Power): 150 watt, 2-inch voice coil, 8-inch woofer...
  • Page 14 Specifications Modèle: Acoustic Master Custom Type: Amplificateur Combo Acoustique Puissance Programme de l’enceinte (Watts): Impédance de l’enceinte (ohms): Puissance @ impédance min. (Watts): Impédance Minimum (ohms): Suramplification brusque - 2 cycle: Configuration de haut-parleur- Graves (Dimension / Puissance) 150 watt, Bobine 2 pouces, woofer 8 pouces Configuration de haut-parleur- Aiguës...
  • Page 15 Acoustic Master Custom Digital Effects 1. Hall Reverb – A long, smooth reverb simulating the sound of a large concert hall. High frequencies are progressively rolled off as the signal cycles through the reverberator. The Modify control sets the decay time.
  • Page 16 Acoustic Master Custom Effets Numériques 1. Hall Reverb – Un reverb long et doux. Une simulation de la sonorité d’une grande salle de concert. Une pente de réduction des fréquences aiguës est introduite progressivement à mesure que le signal passe par l’unité de réverbération. La commande Modify ajuste le temps d’amortissement.

  • Page 17: Two Year Warranty

    Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge.
  • Page 18 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-AMCUSTOM-00-1v2 • February 18/2011...
