Traynor YCS100 Datasheet

Features:
Selectable 100-watt / 30-watt All-tube Output
·
· Three Independent Footswitchable Channels
Innovative One-button Voicing Circuitry
·
Master Volume, Global Presence and Resonance Controls
·
Vintage Sounding Long Accutronics Spring Reverb
·
DynaSound Speaker Compensated headphone and XLR DI Output
·
Rugged Plywood Cabinet Construction
·
Custom 4-button direct access footswitch with solo boost
·
Overview:
Designed to be the ultimate three channel
guitar head, the Traynor Custom Special
100's true three-channel architecture offers
full control of each and every channel.
Each channel on the this head has its own
individual gain and volume controls, a full
three band EQ, boost level, user selectable
one button voicing circuitry and its own effects return and reverb settings.
Powered by four EL34's the Traynor Custom Special 100 has two user switchable
power levels, a true 100-watt class-AB mode for club or concert hall, and a more
manageable 30-watt class-A mode, ideal for recording or rehearsal.
Four 12AX7A's are used in the pre-amp stage. To ensure maximum versatility, the
Custom Special 100 has an in-line pre-amp send / power amp return for in-line
effects, and a footswitchable side chain effects send with individual effects return
level controls for every channel.
The master section includes a Master Volume, Presence and Resonance controls. The
unique Resonance control actually controls the damping factor of the amplifier's
output stage, and allows the player to take full advantage of the cabinet's 'tone'.
When used with a high quality and responsive loudspeaker enclosure like the Traynor
YCS412, a player can easily 'dial in' the exact bass response from their head and
cabinet combination that they require.

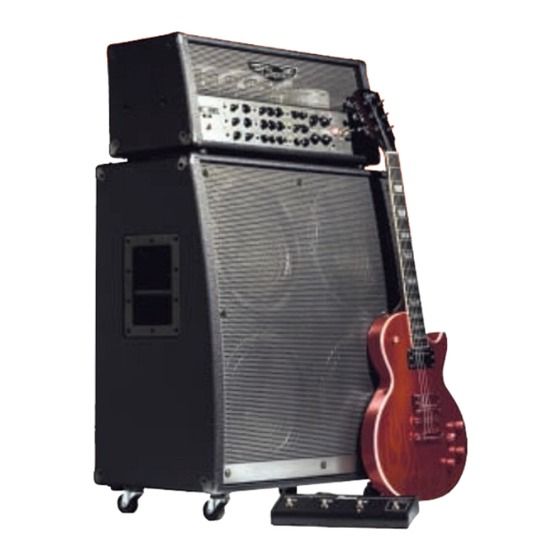

An XLR direct output with speaker compensation ensures the Traynor half-stack can
be easily fed to a live PA or recording console without having to mic the cabinet. The
headphone output has speaker compensation and its own level control, independent
of the amplifier's master volume making the Custom Special 100 ideal for recording
or rehearsal.
A solid plywood cabinet construction with all-metal chassis protects the Custom Special
100's electronic components, tubes and wiring, ensuring years of road-readiness
and unmatched reliability.
The four-button footswitch allows
instant access to any channel with a
single stomp as well as a one tap
overall master lead boost level that
kicks any channels up any channel for
solos.
t r a y n o r a m p s . c o m
YCS100
YCS100
100 Watt Tube Guitar Head
YCS100 SPECIFICATIONS:
Model YCS100
Type Tube Guitar Amplifier
Power @ min. impedance (Watts) 2-ohms (30-watt mode) 4-ohms (100-watt mode)
Input Channels 3
Channel 1 - inputs 1/4-inch phone
Channel 1 - controls Gain, Volume, Treble, Mid, Bass, Reverb, Effects
Channel 1 - switches Boost, Scoop, Modern
Channel 2 - controls Gain, Volume, Treble, Mid, Bass, Reverb, Effects
Channel 2 - switches Boost, Scoop, Modern
Channel 3 - controls Gain, Volume, Treble, Mid, Bass, Reverb, Effects
Channel 3 - switches Boost, Bright, Modern
Channel Switching Yes
Master Volume Control Yes
Main Tone Controls Resonance, Presence
Line Out (type / configuration) Speaker Compensated XLR Balanced
Effects Volume Seperate levels on each channel
Effects Loop / Location Yes / Rear
Effects Footswitch / Function Yes / Channel Select, Boost
Internal Reverb / Effects Accutronics Spring Reverb
External speaker output / location Rear (Dual selectable Impedences)
Headphone Jack Yes
Other Features All-tube design with four EL34EH, four 12AX7A tubes,
Standby Switch, Auto tube matching circuit,
DC filaments on preamp tubes
Dimensions (DWH, inches) 11.5 x 26.5 x 10.5
Dimensions (DWH, cm) 29.25 x 67.5 x 26.75
Weight (lbs / kg) 44 / 20
