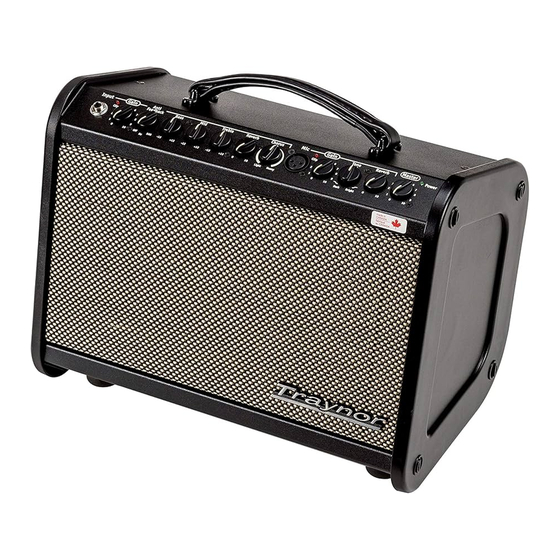

- Page 1 Acoustic Master Mini A C O U S T I C - G U I T A R A M P L I F I E R AMMINI...
-
Page 2: Important Safety Instructions - English / Français
Important Safety Instructions - English / Français I MP OR TA N T S A FE T Y I N ST R U C TI O N S This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”... -
Page 3: Table Of Contents
1. Canal 1 Prise d’Entrée ..........3 Table of Contents ..............ii 2. DEL Clip (Canal 1) ............3 Acoustic Master Mini ............1 3. Commande de Gain (Canal 1) ........3 Features ................1 4. Commande Anti-feedback (Canal 1) ......3 1. -
Page 4: Acoustic Master Mini
3. Gain Control (Ch 1) Use this control to increase the level of your signal in the preamp section of the Acoustic Master Mini. A nice, hot signal will result in the best overall performance from your amplifier, so set this control as high as you can without making the clip LED turn on a lot (little blinks are OK). -
Page 5: Gain Control (Ch 2)
In order to enhance the gigging abilities of the Acoustic Master Mini, we have implemented a “Variable High-Pass Notch Filter” (see image), which is labelled “Anti-Feedback.” This control introduces a deep notch at one frequency and simultaneously reduces the bass below the notch frequency. -
Page 6: Acoustic Master Mini
Mini. Nous vous remercions d’avoir choisi un amplificateur Traynor. En tant que musiciens, nous savons à quel point votre son est important et nous apprécions vraiment le fait que vous nous avez choisi pour partager le vôtre avec le monde. -
Page 7: Commande De Gain (Canal 2)
10. Commande de Gain (Canal 2) Comme le point 3. 11. Commande de Tonalité (Canal 2) Ce canal est équipé d’une commande de tonalité de style «tilt». Elle offre une réponse uniforme lorsque ajustée à 12 heures. Une augmentation du niveau de la commande produit simultanément une augmentation des hautes fréquences et une réduction des basses. -
Page 8: Specifications - English / Français
Specifications - English / Français Specifications Power @ min. impedance (watts) 65 Speaker Configuration - LF 6.5-inch Speaker Configuration - HF 1-inch Soft Dome Input Channels 2 Channel 1 - inputs 1/4 inch Unbalanced Channel 1 - controls Gain, Bass, Mid, Treble, Anti-Feedback, Reverb, Chorus Channel 2 - inputs Balanced XLR Channel 2 - controls Gain, Tone, Reverb Line Out (type / configuration) Balanced XLR... -
Page 10: Block Diagram
Block Diagram... -
Page 11: Warranty - English / Français
Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge. -
Page 12: Rear Page
WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Limited Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W 3Y8 CANADA 14305, USA Voice: 905-837-8481 Voice: 716-297-2920 Fax: 905-837-8746 Fax: 716-297-3689 Manual-Owners-AMMINI-00-1v5 • August 31, 2022...
