1 . 1 P a n e l E x p
1 . 1 P a n e l E x p

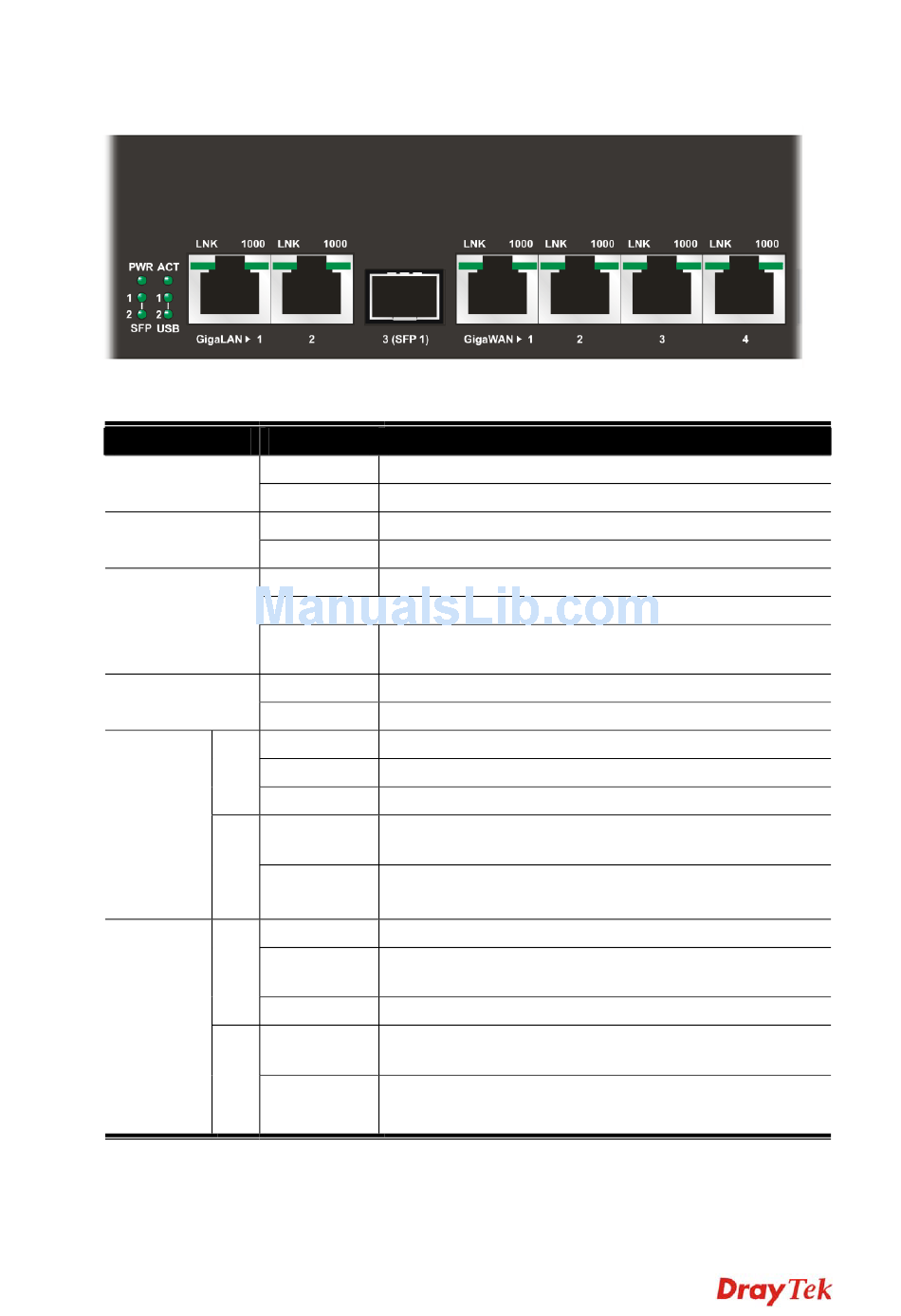

L E D E x p l a n a t i o
L E D E x p l a n a t i
LED
PWR
ACT
SFP
USB
LNK
GigaLAN1
/LAN 2)
1000
LNK
Giga
WAN1/2/3/4
1000
Vigor3900 Series Quick Start Guide
l a n a t i o n
l a n a t i o n
n
o n
Status Explanation
On The router is powered on.
Off The router is powered off.
On/Blinking The system is active.
Off The system is hanged.
On The fiber connection is established.
Blinking The data is transmitting.
Off No fiber connection is established or the system is
hanged.
On The USB device is installed and ready.
Off No USB device is installed.
On The Ethernet link is established on corresponding port.
Blinking The data is transmitting.
Off No Ethernet link is established.
On It means that a normal 1000 Mbps connection is through
its corresponding port.
Off It means that a normal 10/100 Mbps connection is
through its corresponding port.
On The Ethernet link is established.
Blinking The data transmission is done through the corresponding
port.
Off No Ethernet link is established.
On It means that a normal 1000Mbps connection is through
its corresponding port.
Off It means that a normal 10/100Mbps connection is through
its corresponding port.
