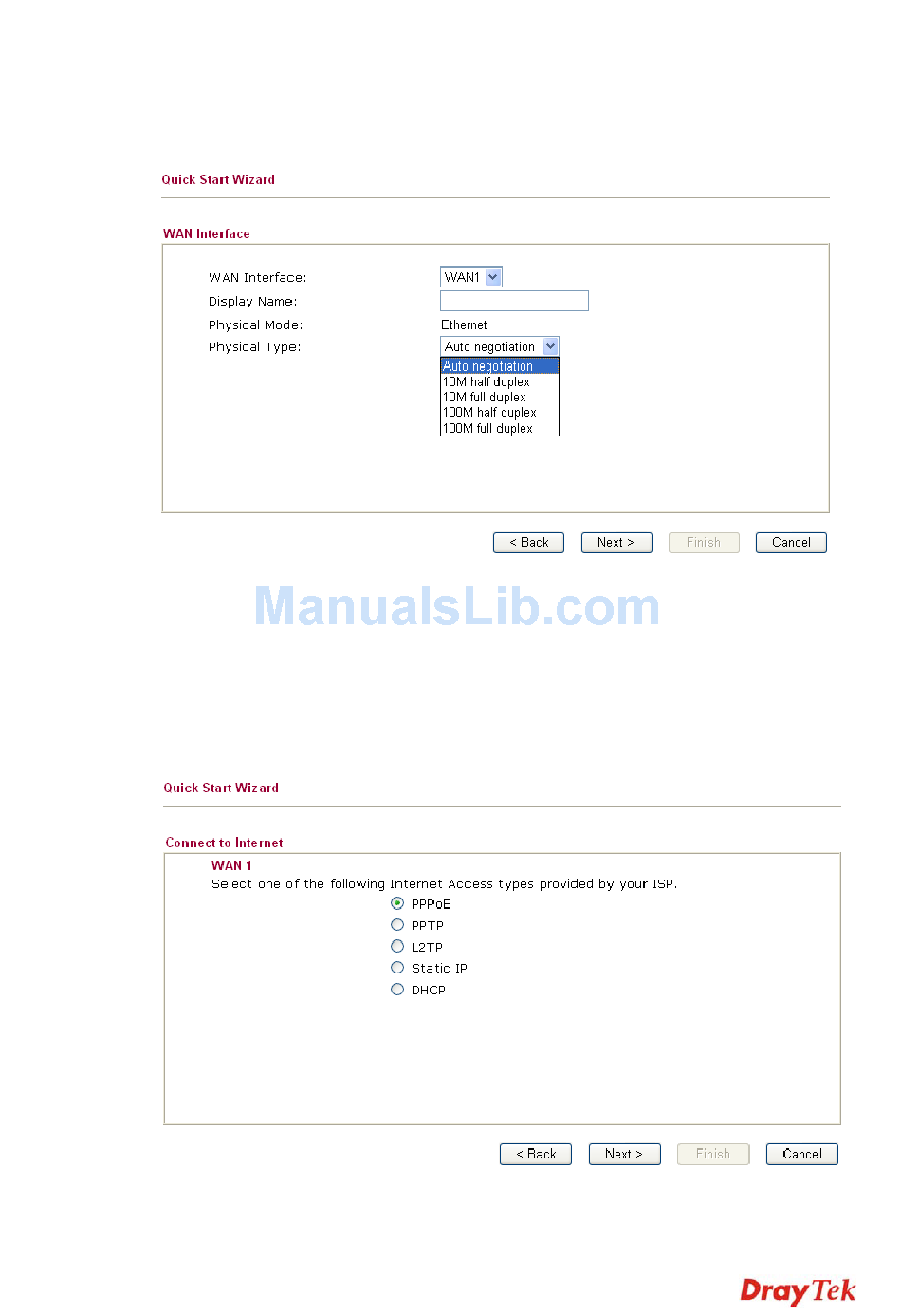

On the next page as shown below, please select the WAN interface that you use. If Ethernet
interface is used, please choose WAN1/2 (based on the physical hardware connection); if 3G
USB modem is used, please choose WAN3. Choose Auto negotiation as the physical type for
your router. Then click Next for next step.
WAN1/WAN2 and WAN3 will bring up different configuration page. Refer to the following
for detailed information.
2 . 3 . 1 F o r W A N 1 / W A N 2
2 . 3 . 1 F o r W A N 1 / W A N 2
Choose WAN1/WAN2 and click Next to display the following page.
Please select the appropriate Internet access type according to the information from your ISP.
For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then
click Next for next step.
