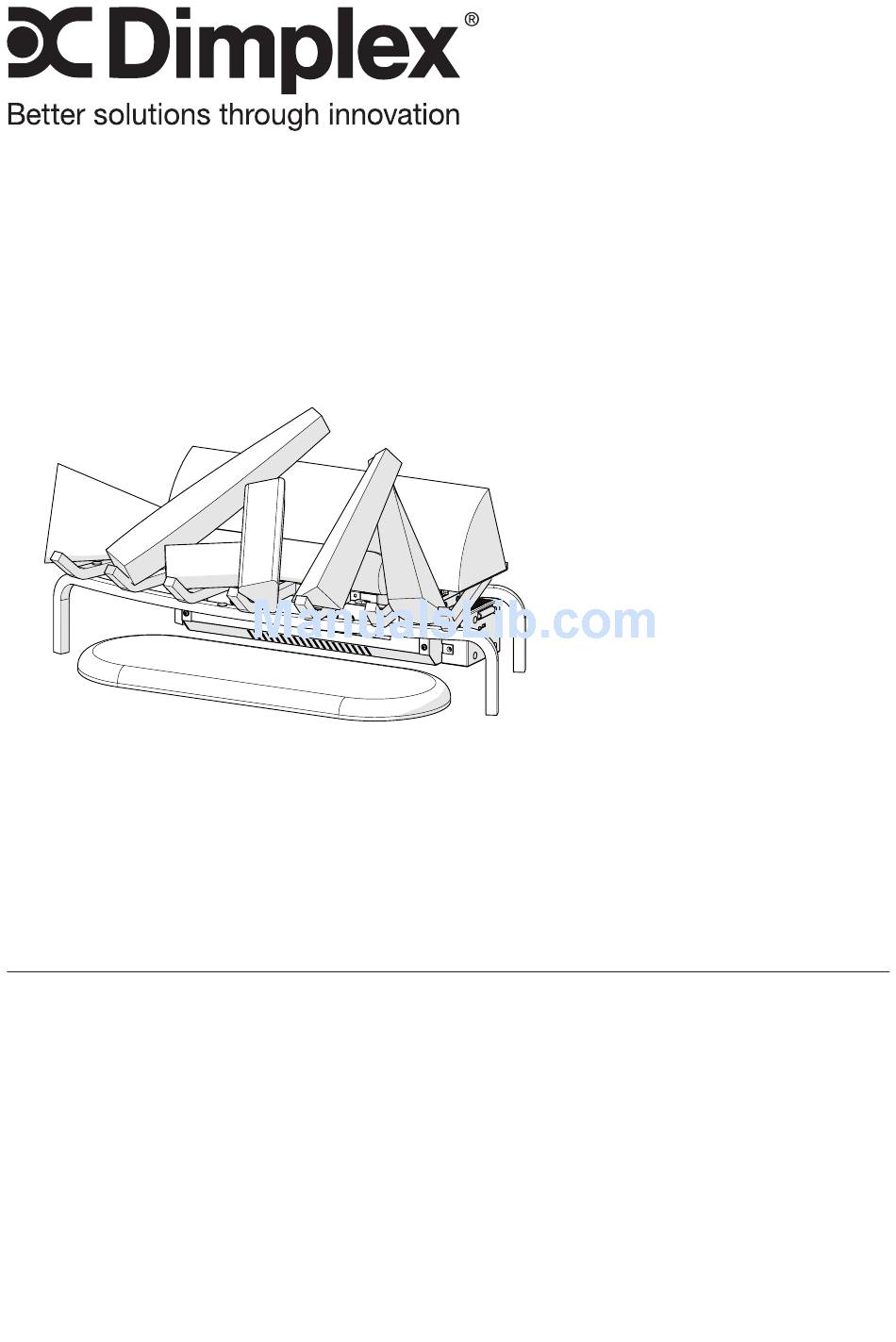

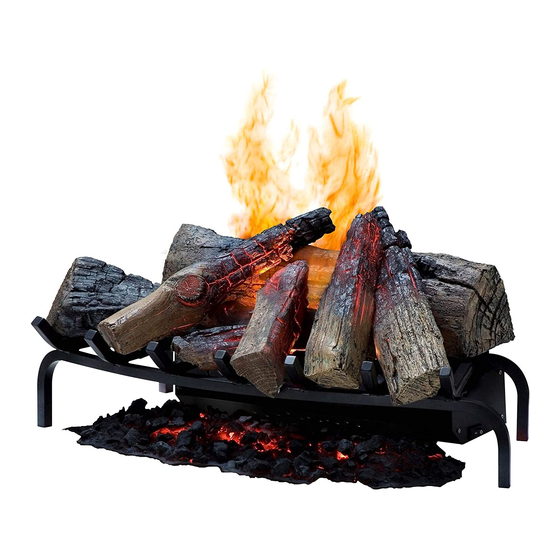

Owner's Manual
Model
DLGM29
7212240100R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLGM29 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dimplex DLGM29

Summary of Contents for Dimplex DLGM29

  • Page 1 For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7212240100R02...

  • Page 2: Table Of Contents

    CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. W ARNINg: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com...

  • Page 3: Welcome & Congratulations

    Welcome & Congratulations Thank you and congratulations for choosing to purchase an Log Grate from Dimplex, the world leader in electric fireplaces. Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty.

  • Page 4: Important Instructions

    Arrange cord away from traffic damage. area and where it will not be tripped over. ⑯ The Log Grate must not be located directly below a socket ⑦ To disconnect the unit, turn the outlet. controls off, then remove the plug www.dimplex.com...

  • Page 5: Save These Instructions

    IMPORTANT INSTRUCTIONS ⑰ The Log Grate must be NOTE: Changes or positioned so that the plug is modifications not expressly accessible. approved by the party responsible for compliance could void WARNINg: Remote control user's authority to operate the contains small batteries. equipment.
  • Page 6 Consult the dealer or an experienced radio/TV technician for help. operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. www.dimplex.com...

  • Page 7: Site Selection And Preparation

    Site Selection and Preparation This section provides instructions allow for approximately 2" for selecting a location and (5.1cm) of clearance behind preparing the site to install the the unit (from the frame to Log Grate. the back of mantel) and 7" (17.8cm) directly above the select a suitable location back log to allow for removal...
  • Page 8 NOTE: Completely assemble • Remove any packing the unit before filling with water. material. • Install transducer so that it is sitting level in the circular holding area in the Reservoir. www.dimplex.com...

  • Page 9: Log Grate Assembly

    Log grate Assembly CAUTION: Handle logs carefully, they are fragile and can easily crack or break, if dropped.
  • Page 10 NOTE: Each of these logs are hand made, and as such, the hook and loop pads on the logs and grate may not align perfectly, therefore, we have included additional pads should you need to re-position them. Wire Connectors Hook and Loop Pads www.dimplex.com...
  • Page 11 Log grate Assembly...
  • Page 12 Log grate Assembly www.dimplex.com...
  • Page 13 Log grate Assembly CAUTION: Ensure that the logs are placed so that they are not blocking the flame effect outlet.

  • Page 14: Log Grate Installation

    Distilled water 15 amp/ 120 volt outlet. or softened water be used in WARNINg: only use Dimplex the unit to prevent scaling of the approved 24V DC power supply, components. min. 2.7a.

  • Page 15: Operation

    Operation Figure 3 The manual controls for the Log 243 independent frequencies to Grate are located in the front right prevent interference with other side. (Figure 3) units. The frequency designation is indicated on the back of the A. On/Off Switch remote control.
  • Page 16 Insulator strip or the off button on the remote control, then back on to return Battery Cover to Level 1 - Logs and Light only operation. www.dimplex.com...

  • Page 17: Maintenance

    Maintenance empty and drain the unit of water, WARNINg: Disconnect power and dry all of the water containing before attempting any main- components. tenance or cleaning to reduce the risk of fire, electric shock It is recommended that all of the or damage to persons.

  • Page 18: Warranty

    What Dimplex will do in the event of a defect the purchaser assumes the entire defect cost of all necessary servicing or repair.
  • Page 19 Warranty Dimplex may, in lieu of repair or MaInTEnanCE, usE, oR InaBILITY To replacement, choose to refund the usE THE PRoDuCT, EVEn IF DIMPLEX purchase price for such product or oR ITs DIRECToRs, oFFICERs, oR part. aGEnTs HaVE BEEn aDVIsED oF THE PossIBILITY oF suCH LossEs, •...

  • Page 20: Replacement Parts

    Transducer ........3800040100RP Dimplex North America Limited 1367 Industrial Road Cambridge on Canada n1R 7G8 © 2012 Dimplex north america Limited www.dimplex.com...
