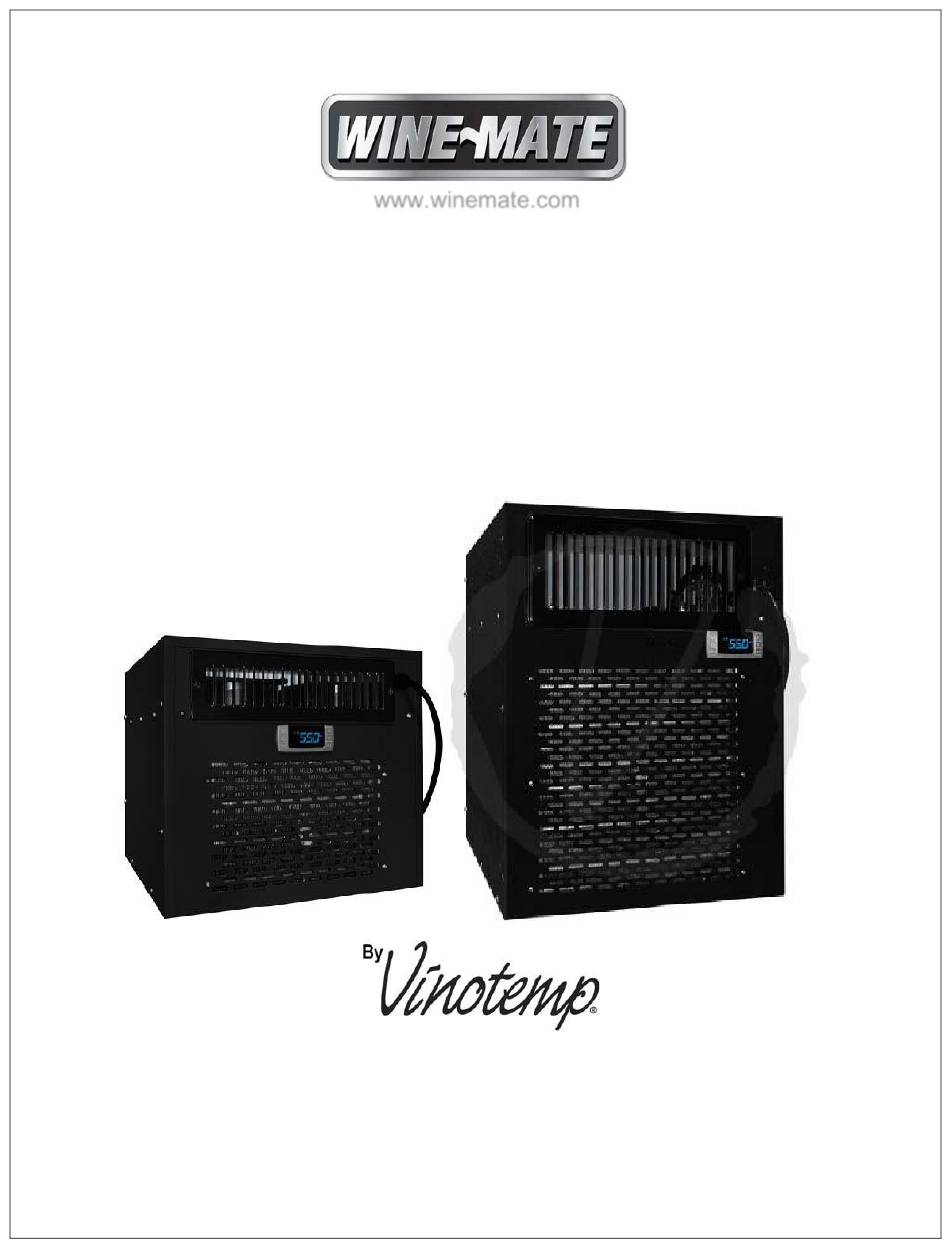

Page 1 Wine Cooling System WM-1500HZD, 2500HZD WM-3500HZD, WM-4500HZD 6500HZD, WM-8500HZD Installation, Use & Care Manual www.vinotemp.com Read and save these instructions...
Page 2 Important Safety Information NOTES: • Do not plug in until 24 hours after delivery. • Do not use a ground fault interrupter (GFI). • A dedicated 20 AMP circuit for WM-1500~2500HZD and 30 AMP for WM- 3500~8500HZD are required. WARNING To avoid the risk of electrical shock, property damage, personal injury, or death: •...
Page 3 ELECTRICAL SHOCK HAZARD • Disconnect electrical supply from appliance before servicing. • Replace all panels before operating. • Failure to do so could result in death or electrical shock.
Page 4: Table Of Contents
Table of Contents Features & Specifications..........3 Installation Instructions… ..........6 Temperature & Humidity… ..........16 Care Guide ................ 20 Troubleshooting… ............21 Electrical Diagrams… ............24 Customer Support… ............26 Warranty… ................. 27...
Page 5: Features & Specifications
Features and Specifications o HZD series cooling units are designed and used to provide a stable temperature between 50~65 °F for a properly insulated space. o The refrigerated space will maintain humidity ranges within 50~70% RH. o These temperature and humidity ranges are optimized for long term storage of wine.
Page 6 Fig. 1.2 WM-3500~8500HZD FEATURE DESCRIPTIONS Fig. 1.3 WM-1500~2500HZD DIMENSIONS...
Page 7 Fig. 1.4 WM-3500~8500HZD DIMENSIONS The specifications and dimensions are listed as follows: Model Cellar Size Dimensions Electrical Weight (lb) W”XD”XH” (cu ft) WM-1500HZD 14.25X16X13.25 115V/60HZ/4A WM-2500HZD 14.25X16X13.25 115V/60HZ/5A WM-3500HZD 14.25X21.25X19.75 115V/60Hz/6A WM-4500HZD 1000 14.25X21.25X19.75 115V/60Hz/9A WM-6500HZD 1500 17X28X22 115V/60Hz/14A 110 WM-8500HZD 2000 17X28X22...
Page 8: Installation Instructions
Installation Instructions WARNING • Always check wiring harness connections before initiating any test procedures. • Disconnect electric power from the appliance before performing any maintenance or repairs. • Voltage checks should be made by inserting meter proves beside the wires in the connector blocks with the electric power source on and the connector block plugged in.
Page 9 2. WM-1500~2500HZD cabinet installation • Cut a rectangular inside opening with the 1/4” clearance inwards to the width and height of the cooling unit. By not going through, leave 1/2” lip inside at the wall to place the gaskets (see Fig 2.1). •...
Page 10 Fig. 2.2 THREAD INSERT Fig. 2.3 REAR GASKET...
Page 11 Fig. 2.4 TOP EXHAUST GASKET Fig. 2.5 COOLING UNIT MOUNTING -10-...
Page 12 Fig. 2.6 SECURING BRACKET & SCREW -11-...
Page 13 Fig. 2.7 CABINET GRILLE -12-...
Page 14 3. WM-3500~8500HZD through-wall installation Fig. 2.8 THROUGH- WALL INSTALLATION • The cooling unit shall be mounted near the ceiling with equal distance from each side of the room. • Cut a rectangular opening at the wine room wall as illustrated. The dimensions of the opening shall be 1/4”...
Page 15 NOTE: The cooling unit can be installed with the front of the unit flush with the inside of the wall. Construct a shelf outside the room accordingly. Fig. 2.9 THROUGH-WALL INSTALLATION (OUTSIDE WALL FLUSH) Fig. 2.10 THROUGH-WALL INSTALLATION (INSIDE WALL FLUSH) -14-...
Page 16 Fig. 2.11 TOP EXHAUST GASKET Fig. 2.12 WALL GRILLE 4. Cellar Construction This is only a guide and shall be considered as minimum requirements. All interior walls and floors shall have a vapor barrier and a minimum of R13 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation.
Page 17 Doors shall be of a minimum size, insulated to at least R13 and tightly sealed with high quality weather stripping. Be sure to seal the bottom of the door and fill gap between the door’s frame and wall before installing the cap molding. In order to maintain 55 °F in the wine cellar, the ambient temperature surrounding the enclosure shall not exceed the temperature of the cellar by more than 25 °F.
Page 18: Temperature & Humidity
Temperature and Humidity 1. The controller Fig. 3.1 TEMPERATURE CONTROLLER 1) Keys SET: To display set-point; in programming mode it selects a parameter or confirms an operation. : To start a manual defrost. : To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value.
Page 19 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe Compressor switching to Con and CoF faulty Probe temperature ALU higher than the setting High temperature temperature; Outputs unchanged alarm Probe temperature ALL lower than the Low temperature alarm setting temperature;...
Page 20 6. Parameter Programming keys until the “°C” or “°F” LED starts flashing, 1) Press and hold the SET + then release the keys. 2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the keys. The first parameter Hy will be displayed. 3) Press up/down keys to scroll to the required parameter within 10 sec.
Page 21 In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be used to avoid frost. 9. How to adjust the humidity The parameter Fon is used to adjust the humidity in the wine cellar. Higher Fon results in higher relative humidity.
Page 22: Care Guide
Care Guide 1. Cleaning Condenser • Clean the condenser regularly at least every 6 months. • Condenser is located on the ambient air intake side of the cooling unit. • Use a condenser brush or a vacuum cleaner with an extended attachment to clean the condenser.
Page 23: Troubleshooting
Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes Response a. Power cord not plugged a. Check power cord 1. Unit not b. No power from supply b.
Page 24 opening high or not b. Cellar too large b. Check for excessive size cooling and c. Ambient temperature too high c. Check installation location running d. Exhaust restricted d. Leave minimum 3 feet clearance for the hot continually air exhaust side and leave minimum 1 foot clearance for the fresh air intake side e.
Page 25 12.Temperature a. Low temperature setting a. Raise the setting - 23 -...
Page 26 b. Low ambient temperature b. Move to another location c. Air probe fault c. Change a new one d. Temperature controller fault d. Change a new one a. Evaporator air flow restriction a. Check for fans and air flow 13.Evaporator b.
Page 27: Electrical Diagrams
Electrical Wiring Diagrams Fig. 6.1 WM-1500~2500HZD WIRING DIAGRAM Fig. 6.2 WM-1500~2500HZD WIRING DIAGRAM (ALARM CALL) - 25 -...
Page 28 Fig. 6.3 WM-3500~8500HZD WIRING DIAGRAM Fig. 6.4 WM-3500~8500HZD WIRING DIAGRAM (ALARM CALL) - 26 -...
Page 29: Customer Support
Customer Support If you need further assistance, please contact us at: Vinotemp International 732 South Racetrack Road Henderson, NV 89015 Tel: (800) 777-8466 Fax: (310) 886-3310 Email: info@vinotemp.com - 27 -...
Page 30: Warranty
BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
Page 31 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
