www.videolarm.com

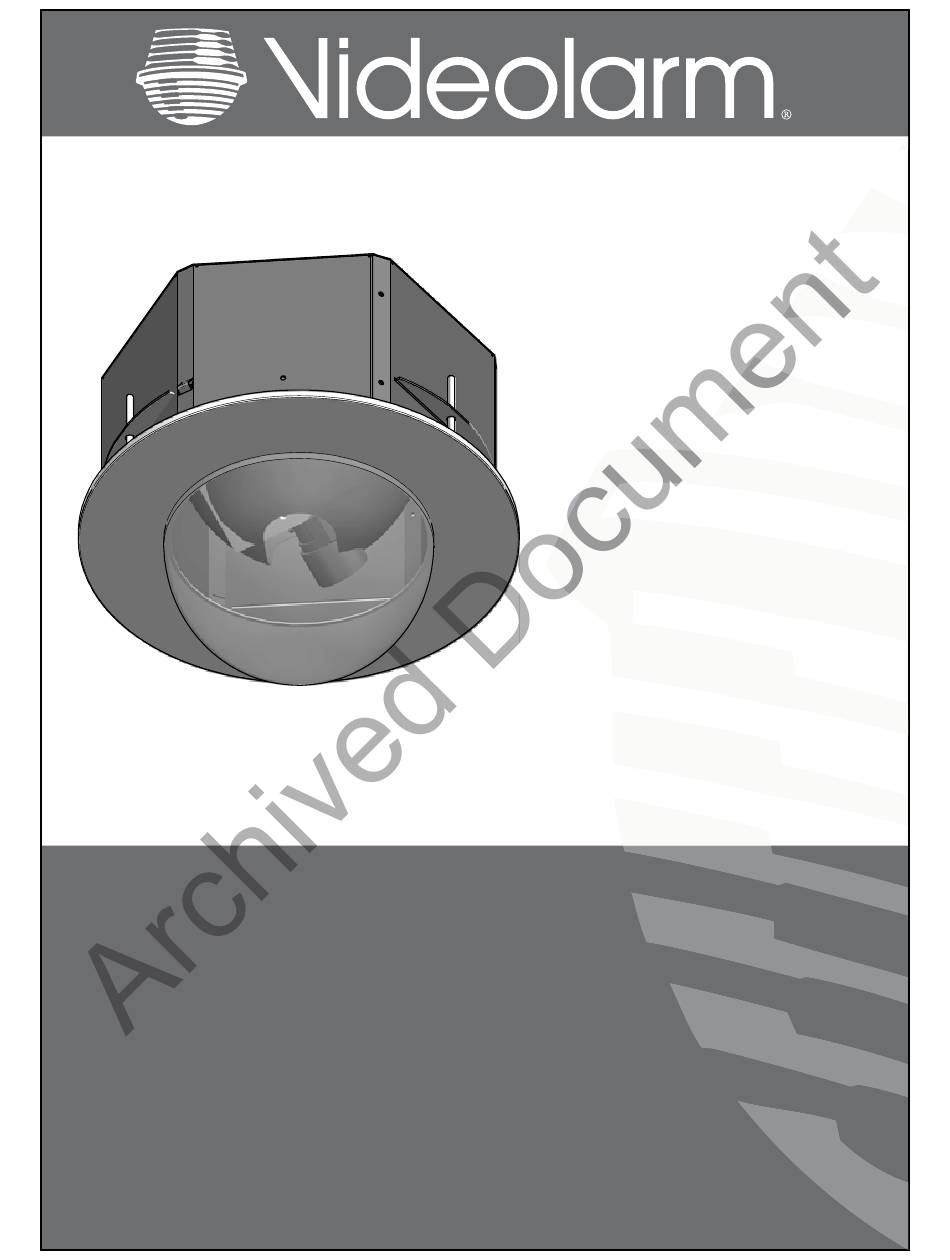

M R 7 T

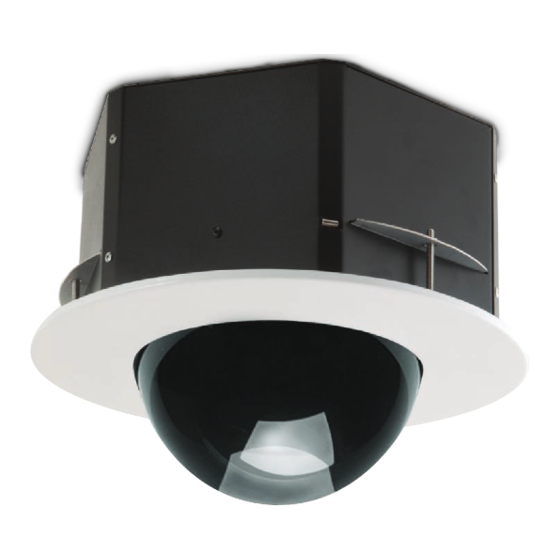

Indoor Dome Housing
Installation and Operation Instructions for the following models:
MR7T
7" Recessed Ceiling mount dome housing, tinted dome, plus (1) fixed camera
bracket and decorative trim ring
MR7TL
7" Recessed Ceiling mount dome housing, tinted dome, plus (1) fixed camera
bracket and decorative trim ring, includes liner; MCL 8"
MR7CL
7" Recessed Ceiling mount dome housing, clear dome, plus (1) fixed camera bracket
and decorative trim ring, includes liner; MCL 8"
B e fo r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e t h i s p r o d u c t ,
p l e a s e r e a d t h e s e i n s t r u c t i o n s c o m p l e t e l y.
81-IN5139R0
Advertisement
Table of Contents
Related Manuals for Moog Videolarm MR7T
Summary of Contents for Moog Videolarm MR7T
- Page 1 M R 7 T Indoor Dome Housing Installation and Operation Instructions for the following models: MR7T 7” Recessed Ceiling mount dome housing, tinted dome, plus (1) fixed camera bracket and decorative trim ring MR7TL 7” Recessed Ceiling mount dome housing, tinted dome, plus (1) fixed camera bracket and decorative trim ring, includes liner; MCL 8” MR7CL 7” Recessed Ceiling mount dome housing, clear dome, plus (1) fixed camera bracket and decorative trim ring, includes liner; MCL 8” B e fo r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e t h i s p r o d u c t , p l e a s e r e a d t h e s e i n s t r u c t i o n s c o m p l e t e l y.
-
Page 3: Limited Warranty
LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship, as follows: PRODUCT CATEGORY PARTS LABOR All Enclosures and Electronics Three (3) Years Three (3) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan Poles/PoleEvators Three (3) Years... -
Page 4: Electrical Specifications
Electrical Specifications Content of Box MR7T No power options provided. Power required for camera only. Power 24VAC Class 2 Power Supply Only English Tools Required: Phillips Head Screwdriver Ceiling Support Wires(18-24 Gauge Wire) Ningunas opciones de la energía proporcionaron. Energía requerida para la cámara fotográfica solamente. - Page 5 Using the provided template, mark the A box cutter or jigsaw can be used for ceiling tile for the cutout. cutting the circle. • Un cortador o un rompecabezas de la caja se • Con la plantilla proporcionada, cortar el azulejo del techo puede utilizar para cortar el círculo.
- Page 6 Support Arms Rotate Mounting Holes Support Arm Holes With the bottom flange pressed against the ceiling, Run electrical cable into the housing rotate support arms to the outside. Tighten the support through the conduit. arm screws. • Con el fondo el reborde presionó contra el techo, rota los brazos de •...
-
Page 7: Replacement Parts List
Replacement Parts List Part Number Description RPMR7010 HOUSING ASSEMBLY MR7T MR7TL RPMR7020 SUPPORT ARMS KIT MR7CL RPMR7030 CAMERA BRACKET KIT REPLACEMENT CAPSULE FOR MR7T RCMR7T HOUSING REPLACEMENT CAPSULE FOR MR7CL RCMR7C HOUSING, NO SILKSCREEN, LINER RPMR7050 WHITE TRIM RING ASSEMBLY...
