Moog Videolarm SPVC5164 Product Instructions

Specifi cation
Number
INSTRUCTIONS 5084
MODEL: Accessories
SPVC5164, SPV050
MODEL SPVCP5164
STANDARD ACCESSORIES (Sup plied)
1- SPVCP5164 Surge protector
1- Surge Protector Plate
1- 1/4"-20 Bolt, nut
2- Lock Washers
4- #6 Sheet Metal Screws
INSTRUCTIONS:
1. Mount Surge Protector Plate to the bottom of the Surge
Protector using the (4)#6 sheet metal screws provided.
NOTE: These screws are already installed in the bottom of
the surge protector. Remove them temporarily to
install mounting plate.
2. Connect the wires and coax cables to the Surge Pro tec tor.
3. Attach the wire lead to ground screw on the SPVCP5164
and attach the other end of the wire lead to ground on
the bolt.
INSTRUCTIONS FOR USE WITH VL22/39/35 HOUSING
1. Mount the Surge Protector Plate to the side of the P/T
mounting bracket using the 1/4-20 stud on the P/T
mounting bracket and the (1) 1/4"-20 bolt pro vid ed with
standard accessories.
NOTE : You will have to mount both heater strips to one side
of the pan/tilt bracket. Use fl at washers be tween
heaters to space apart.
2. Slide (1) Lock Washer on each bolt, then secure the bolt
with hex nuts.
3. Attach the wire lead to the ground screw on the SPVCP5164
and attach the other end of the wire lead to ground on
the bolt.
INSTRUCTIONS FOR USE WITH SS20I/VLSE16
1. Mount the surge protector to the inside wall of the housing.
Mounting studs are already provided for this ap pli ca tion.
2. Attach the wire lead to the ground screw on the SPVCP50
and attach the other end of the wire lead to the ground
bolt on the terminal block.

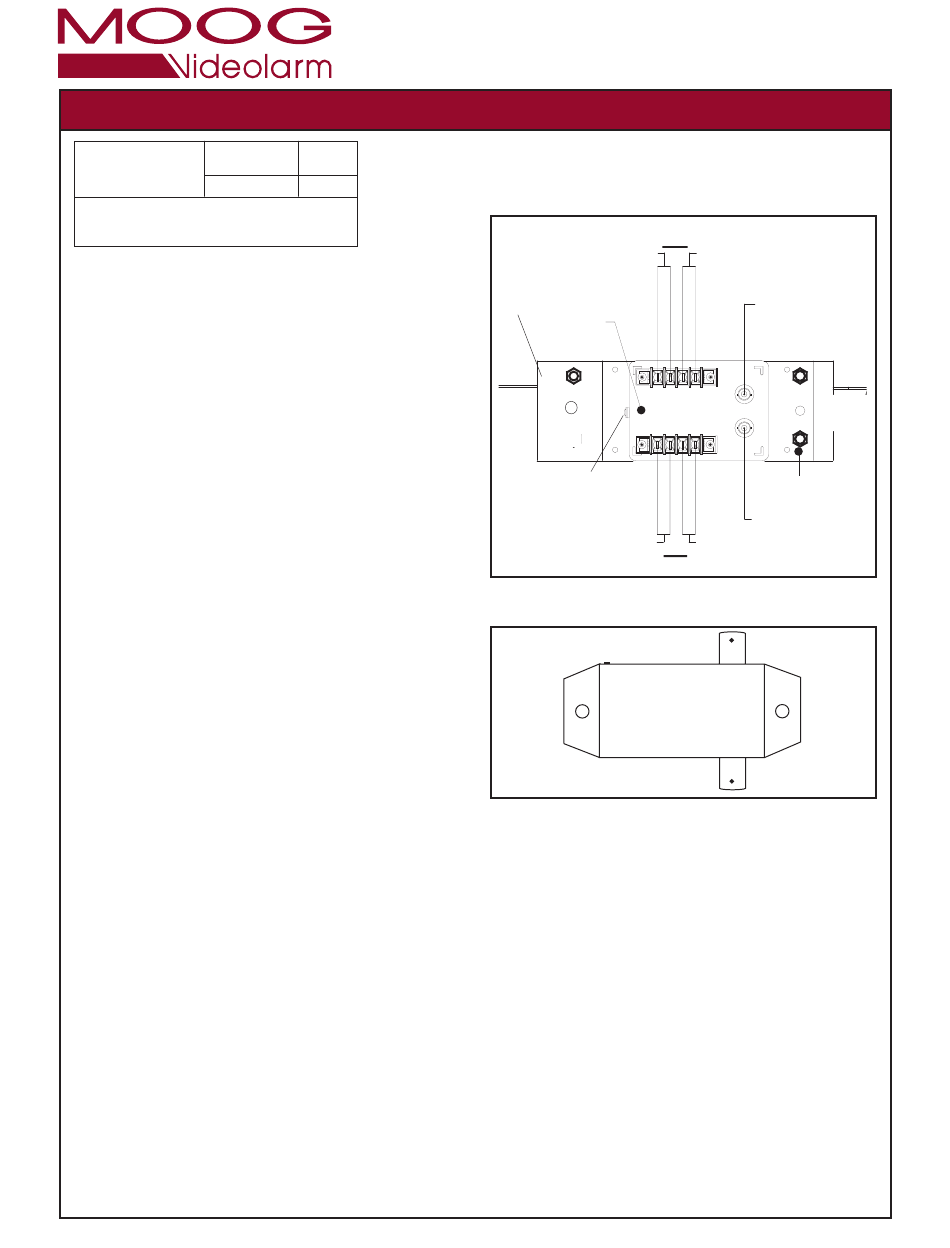

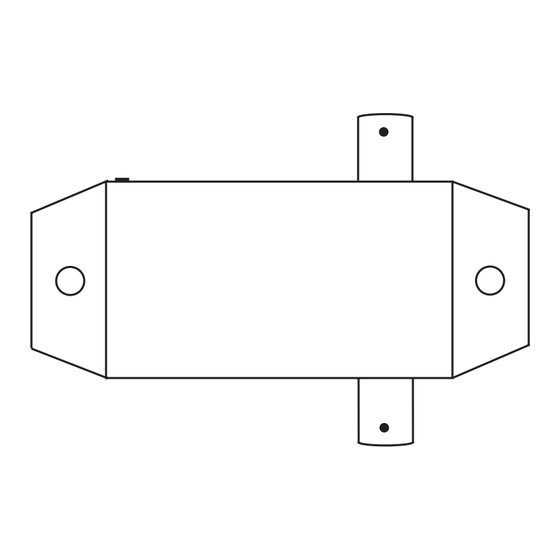

MODEL SPVO50
INSTRUCTIONS:
1. Connect SPVO50 in line with camera coax cable.
2. Attach the wire lead to the ground screw on the SPVO50
and attach the other end of the wire lead to ground on
the terminal block.
2525 Park Central Blvd. • Decatur, Ga 30035 • (770) 987-7550 • 800-554-1124 U.S. & Canada • www.videolarm.com • Fax 800-826-03
Cat a log
Section
3
REVISION DATE: May 16, 2003
PRODUCT INSTRUCTIONS
OUT
24VAC
(VL22/29/35)
P/T MOUNTING
SPVCP5164
GROUND
24VAC
SPVC5164
SPVO50
CONTROL
VIDEO OUT
P/T M O
SURGE PROTECTOR
PLATE
VIDEO IN
CONTROL
IN
