TC Electronic Finalizer User Manual page 11

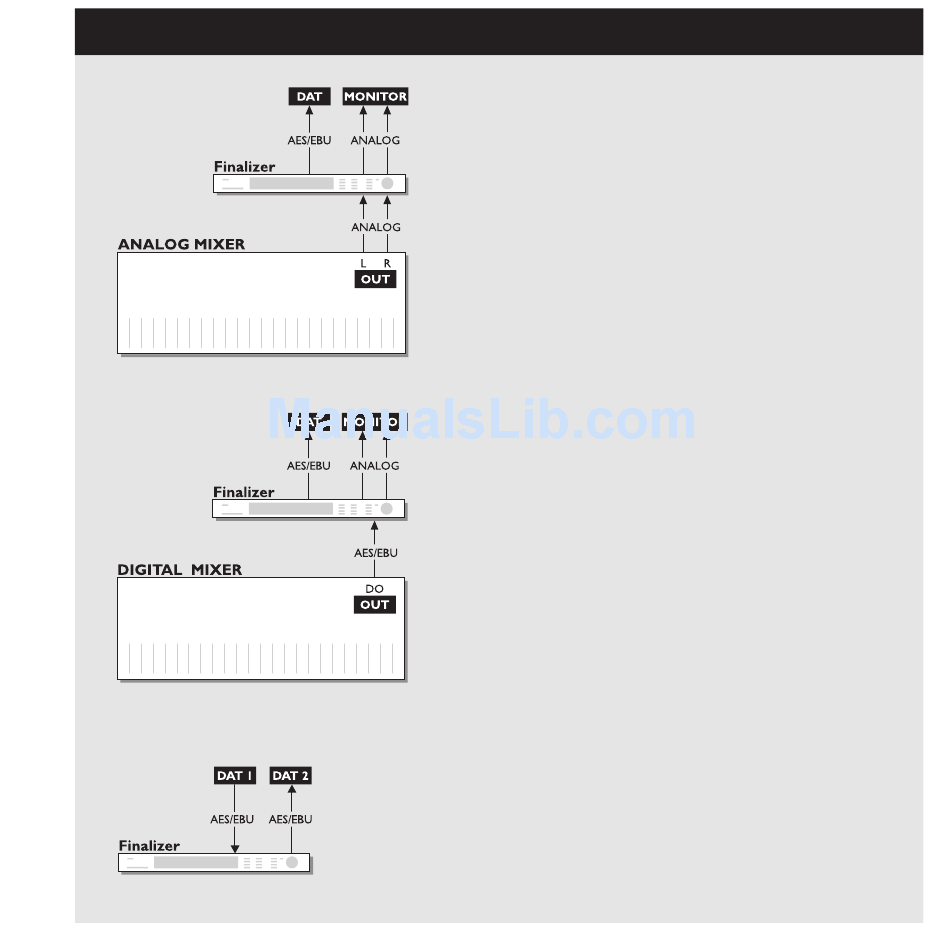

Example 1
Example 2
Example 3
Setup with an analog mixing console and a digital
recording device.
1. Connect the analog output of your mixer to the analog input of
the Finalizer.
2. Connect the digital output of the Finalizer to your
digital recording device.
3. Connect the analog output of the Finalizer to your
monitor system.
Setup with a digital mixing console and a digital
recording device
1. Connect the digital output of your mixer to the digital input of
the Finalizer.
2. Connect the digital output of the Finalizer to your
digital recording device.
3. Connect the analog output of the Finalizer to
your monitor system.
Mastering from DAT to DAT
1. Connect the digital output of DAT #1 to the digital input
of the Finalizer.
2. Connect the digital output of the Finalizer to the digital
input of DAT #2.
11
