Amana VTC Product Specifications
Vertical terminal for air conditioner and heat pump 3/4 ton through 2 tons
Hide thumbs
Also See for VTC:
- Installation instructions and owner's manual (9 pages) ,
- Installation instructions & owner's manual (8 pages) ,
- Product specifications (13 pages)
Advertisement

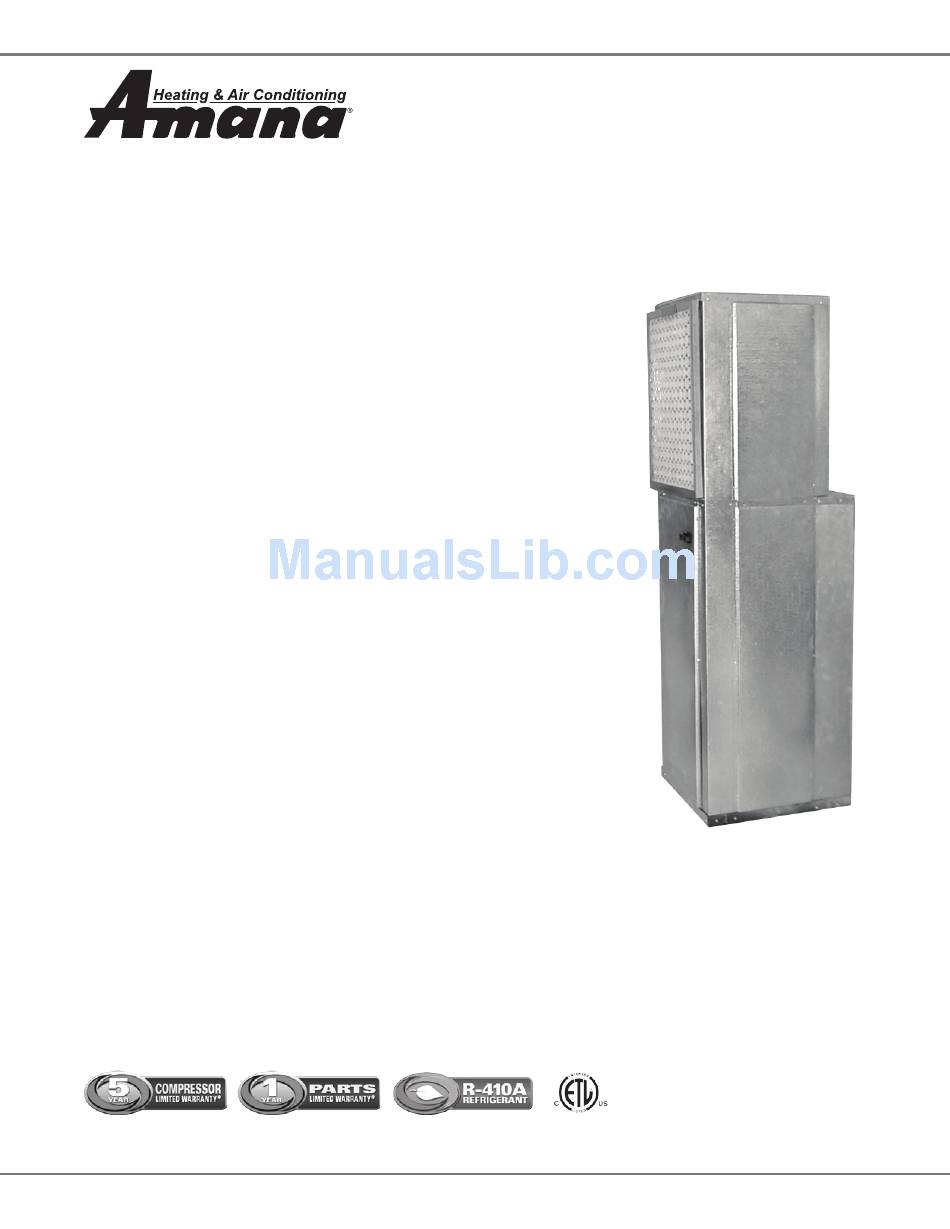

VTC / VTH
Vertical Terminal
Air Conditioner
and Heat Pump
Cooling: 8,900 - 23,100 BTU/h
Heat Pump: 8,500 - 22,400 BTU/h
Electric Heat: 5,100 - 34,100 BTU/h
Up to 3.0 COP
Product Features
• Chlorine-free R-410A refrigerant
• Evaporator coil freeze protection
• Compressor restart delay
• Low-ambient lock-out
• Adjustable fresh air damper
• Wall-mount thermostat
• Electrical disconnect
• Random unit restart
• Front desk control
• Fan on/off delay
• Adjustable fresh air damper
• Completed insulated cabinet for quiet operation
• "Ductable" to multiple rooms
• Full-length wall panels available (eliminates closet door)
¾ Ton through 2 Tons
* Complete warranty details available from your local dealer or at www.amana-ptac.com.
SS-VTAC
www.amana-ptac.com
2/10
Supersedes 5/08
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amana VTC
Summary of Contents for Amana VTC
- Page 1 • Adjustable fresh air damper • Completed insulated cabinet for quiet operation • "Ductable" to multiple rooms • Full-length wall panels available (eliminates closet door) ¾ Ton through 2 Tons * Complete warranty details available from your local dealer or at www.amana-ptac.com. SS-VTAC www.amana-ptac.com 2/10 Supersedes 5/08 Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
-
Page 2: Product Specifications
18 18000 BTU/h 3.0 kW 24 24000 BTU/h 4.0 kW 5.0 kW Rated Voltage 6.0 kW 230/208 V, 60 Hz, 1 Ph 8.0 kW 10 kW Major Design Series Original 2-Row Coils New SEER Req. 2006 3-Row Coils R-410A, 2010 www.amana-ptac.com SS-VTAC... -
Page 3: Cooling Performance Data
Product Specifications VTC Model Specifications—Cooling/Electric Heat Electrical Data (208/240v-1 Ph-60hz) Blower Electric Heat Data Condenser Data Min. Max. Data Ship Circuit Circuit Model Heating Evaporator Condenser Weight Amps Protection BTU/h Compressor Amps Motor Motor (lbs.) 240V 208V 240V 208V 240V 208V Amps... -
Page 4: Dimensional Data
Product Specifications VTC Model Specifications—Cooling/Electric Heat (cont.) Blower Data Motor CFM vs. External Static Pressure Model Speed¹ 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 Connection High VTC093E High VTC123E High VTC183E High 1,030 1,000 VTC243E Notes: (1) VTC12, 18- and 24-blower motors are factory-wired for medium (cooling) and low (heating) fan operation. VTC09 is low speed for both. -
Page 5: Performance Data
Important: • Heat pump does not operate simultaneously with electric heat. • Electrical data in the aEove taEle only applies to units manufactured after 8/1/2000 (data code G08). Contact factory for electrical data for units manu- factured prior to 8/1/2000. • Compressors in these models (after 8/1/2000) do not operate simultaneously with heater elements. • Models manufactured Eefore 8/1/2000 (excluding the VTH24-HP) did feature simultaneous operation and therefore had higher circuit ampacities. Performance Data Cooling Data Heating Data² Model BTU/h BTU/h WATTS VTH093E 8,900 8,500 VTH123E 11,400 11,500 1,001 VTH183E 17,400 16,700 1,582 VTH243E 22,600 22,400 1,967 ¹ Tested in accordance with ARI Standard 310/380-93 at 95°F DB/75°F WB outdoors and 80°F DB/67°F WB indoors. ² 47°F DB, 43°F WB Outdoor/70°F DB, 60°F WB Indoor SS-VTAC www.amana-ptac.com... - Page 6 Product Specifications Dimensional Data DUCT OPENING (C) 6-1/8 ELEMENT FILTER RETURN BLOWER MOTOR DISCONNECT ELECTRICAL CONDENSER OUTLET KNOCKOUT VOLTAGE 41-1/4 CONDENSER INLET 6½ 6½ VTC/VTH 09, 12, 18 10 3 VTC/VTH 24 www.amana-ptac.com SS-VTAC...
- Page 7 Wall Depth Sleeve Depth VWS95BA 5" - 8" Walls 26" VWS9812A 8" - 12" Walls 30" VWS91214A 12" - 15" Walls 33" Separate wall mounting bracket 20" Walls is shipped with "side install" wall sleeves. Architectural Grilles (Available in various colors) Model Wall Depth AGKV01CB Anodized Cluminum (Clear) AGKV01DB Dark Broze AGKV01TB Stonewood AGKV01WB White AGKV015B Custom Color Side Install Sleeve SS-VTAC www.amana-ptac.com...
- Page 8 Note: A solid door or panel with a side wall return air grille will result in lower sound levels. Part # “A” “B” N/LWP0187 87.00 Part # 84.00 N/LWPO187 www.amana-ptac.com SS-VTAC www.goodmanmfg.com SS-VTAC...
- Page 9 Thermostat Connection Fresh Air Vent Figure 5—Filter Bracket Detail Outdoor Air Ventilation Figure 6 One end of a 4” aluminum vent pipe is connected to the condenser venturi and the other end is connected to the side of the VTC/VTH cabinet. A mesh screen is installed inside the vent pipe, and a metal plate on the side of the cabinet covers the opening of the vent pipe. Up to 50 CFM of outside air is introduced into the equipment closet by removing the metal cover plate. The outside air then mixes with the return air and is pulled through the evaporator coil and into the supply duct. The cover plate can be re-installed to partially close the outside air opening if less than 50 CFM is desired. An external source of negative pressure (i.e., a bathroom fan) could...
-
Page 10: General Assembly
Product Specifications General Assembly Rough-In Dimensions 44”H x 21 5/8”W Approximate Fastener Locations Electrical Disconnect Architectural Grille Filter Sleeve Seals Rear Access Panel Wall Sleeve Drain 3/4” MPT Outside Electrical Service Knock-out www.amana-ptac.com SS-VTAC... -
Page 11: Installation
* For 8”-12” outside wall thickness, subtract “A: from 33” (C” = 33 - “A”) * For 12”-15” outside wall thickness, subtract “A” from 36” (C” = 36 - “A”) Side Installation—Closet Dimensions Instructions: Wall Sleeve Wall Sleeve Outside Wall To find the minimum closet depth (dimension “C”), use the following method: Determine dimension “A”, which is the total finished wall thickness. 27" min. * For 5”-8” outside wall thickness, subtract “A: from 39” min. UNIT 30" (C” = 39 - “A”) min. * For 8”-12” outside wall thickness, subtract “A: from 43” (C” = 43 - “A”) * For 12”-15” outside wall thickness, subtract “A” from 46” 12" min. 12" min. (C” = 46 - “A”) SS-VTAC www.amana-ptac.com... -
Page 12: Guide Specifications
Unit Chassis — Each unit must be slide-out design, ready for be capable of a free return at the unit or a ducted return. installation into closet space. Unit must fit into closet space not to exceed 24” x 24” with overhead duct connections Warranty — Limited One-Year Warranty; Second- through designed to .25 ESP. Unit must be tested for conformance to Fifth-Year Limited Replacement Compressor Warranty. Full ASTME water infiltration specification ASTME 331-86, which warranty details are available at www.amana-hac.com. ensures no water infiltration when tested at 8" rain per hour at 63 mph wind for 15 min. Wall Sleeve — The wall sleeve must be of industry-accepted dimensions: from 21” [d] to 28” [d] (dependent upon wall Filter — Filter provided with the unit. Installer must width, from 5” to 15”) x 22” [w] x 44” [h] and constructed of provide for easy accessibility. insulated galvanized steel for corrosion resistance. Sleeve must be shipped with weather-resistant rear closure panel installed. Heat Pumps — E ach u nit m ust i nclude a c hangeover t hermostat that senses an outside coil switch-over temperature of 25°F,...
