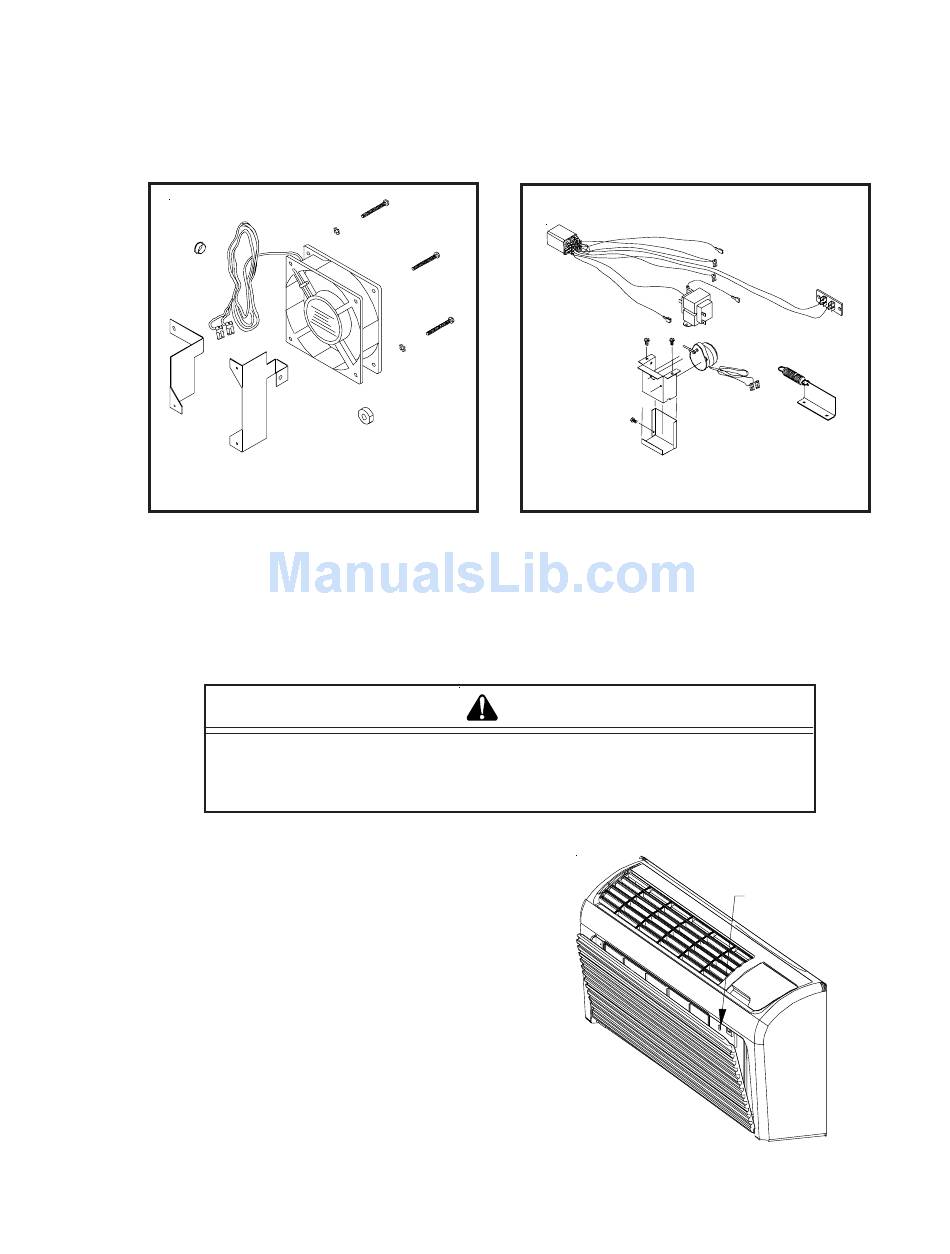

POWER VENT & DOOR KIT
This specially designed fan delivers up to
approximately 95 CFM of fresh air through the
vent while the fan is operating.
Disconnect electrical power source before installing these kits.
Failure to do so may result in injury or death from electrical shock.
The unit "OFF" switch does not disconnect all power to the unit.

Preparation

1. Disconnect power to the unit by unplugging the power cord
at the wall outlet or subbase, or disconnect power at the
fuse box or circuit breaker.
2. If the cabinet front is screwed to the chassis, remove the
screw located behind the inlet grille. Pull the inlet grille
forward from the top of the grille to access screw.
3. Remove cabinet front from chassis by tilting the bottom of
the front forward, lifting slightly up and forward.
4. Remove the PTAC chassis from the wallsleeve. Position
the chassis so the back can be easily accessed.
Part No. 11114202
Printed in USA
I
NSTALLATION
Power Vent Kit
PTAC
I
NSTRUCTIONS
Automatically opens and closes the vent door
depending on fan operation - opens when fan is
operating, closes when fan is not operating.
WARNING
Motor shown exploded
Power Door Kit
FRONT MOUNTING
HOLE
Figure 1
January 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER VENT & DOOR KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amana POWER VENT & DOOR KIT

  • Page 1 PTAC POWER VENT & DOOR KIT NSTALLATION NSTRUCTIONS Motor shown exploded Power Vent Kit Power Door Kit This specially designed fan delivers up to Automatically opens and closes the vent door approximately 95 CFM of fresh air through the depending on fan operation - opens when fan is vent while the fan is operating.
  • Page 2 6. Remove the vent door from the slots in the partition panel by Power Vent Kit Installation lifting the vent door up and carefully pull the door hinges out 1. Remove the shipping screw (if installed) from the vent door. of the slots.
  • Page 3 10). Power Door Kit Installation 7. Snap the provided 1/2” plastic grommet into the hole in the 1. Attach the strike plate to the top of the vent door using the top sheet metal condenser wing (Figure 11). two #8 screws provided (Figure 8). Plastic Grommet Condenser...
  • Page 4 WIRING INSTRUCTIONS 1. To gain access inside the control panel, remove the control knobs and escutcheon, remove the three screws holding the panel in position, and tilt control panel forward, being careful Vent Switch Knockout not to pinch any wires (Figure 13). SCREW SCREW SCREW...
  • Page 5 1ST STAGE 1ST STAGE REMOTE THERMOSTAT OPERATION WIRING DIAGRAM WIRING DIAGRAM ANTICIPATOR ANTICIPATOR 20494401 REV 1 CURRENT: .1 HEAT PUMP W/AUXILIARY COOLING UNIT 2ND STAGE ELECTRIC HEAT W/ELECTRIC HEAT ANTICIPATOR CURRENT: .1 CONNECT CONNECT POWER FUNCTION FUNCTION VENT R TO: R TO: MOTOR * FOR A HEAT PUMP...
  • Page 6 REMOTE THERMOSTAT OPERATION 1ST STAGE WIRING DIAGRAM WIRING DIAGRAM ANTICIPATOR 20504001 REV 0 CURRENT: .1 COOLING UNIT HEAT PUMP W/AUXILIARY 2ND STAGE W/ELECTRIC HEAT ELECTRIC HEAT ANTICIPATOR CURRENT: .1 CONNECT CONNECT FUNCTION FUNCTION R TO: R TO: POWER VENT ----- ----- MOTOR MUFFIN...
