December 1999
Air Conditioner/Heat Pump

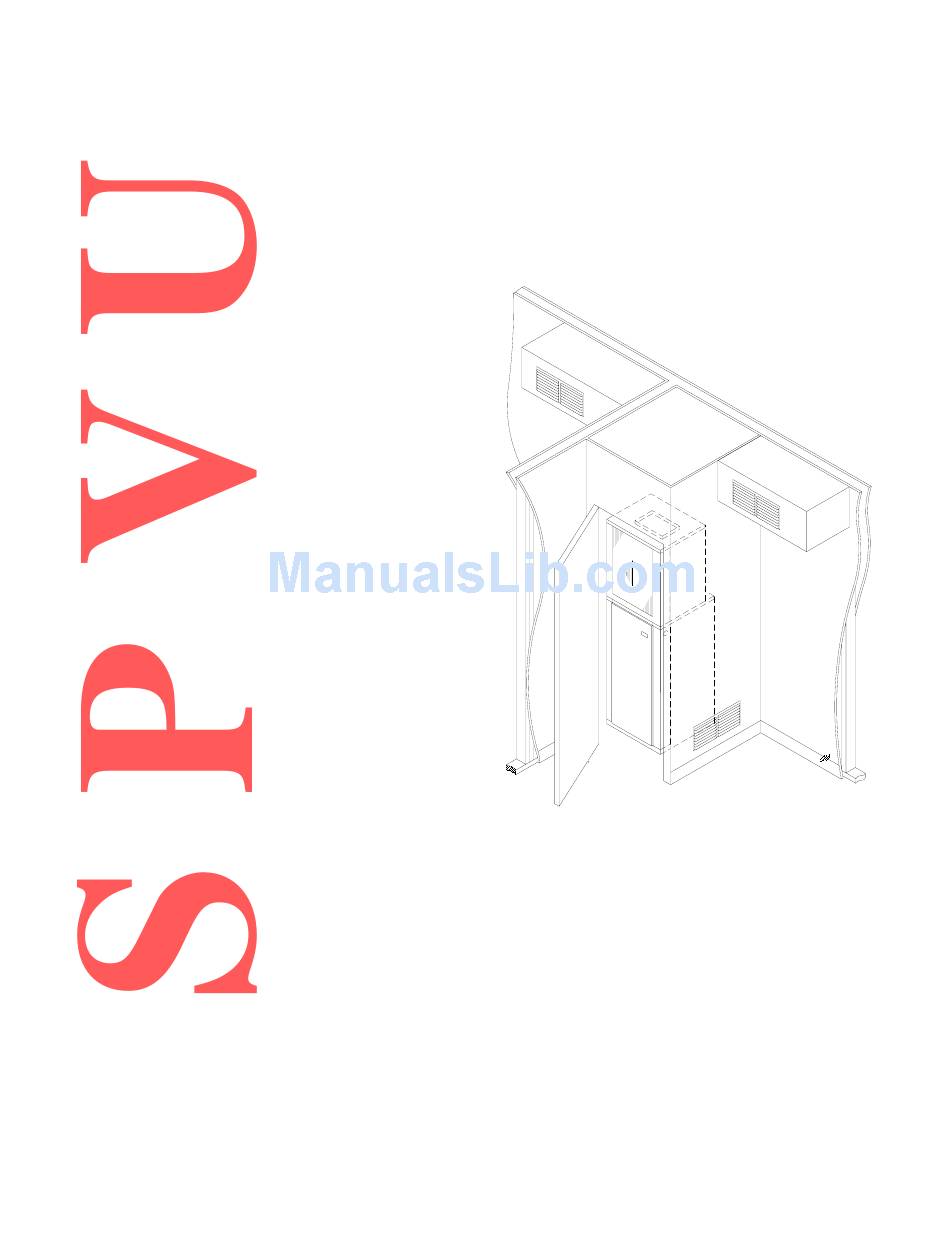

The Single Package Vertical Unit is a compact, through the wall pack-
aged HVAC system that can be ducted to individual rooms. It's slim 20" wide
design uses minimal floor space and installs in a closet having an exterior wall.
Conditioned air from a single unit can be ducted to multiple rooms. Each unit
is controlled by a standard wall thermostat.
These instructions give information relative to the SPVU unit only. Refer
to Wall Sleeve and Grille installation instructions for those components. The
manufacturer assumes no responsibility for equipment installed in violation of
any code requirements. For other related equipment refer to the proper
instructions.
Single Package Vertical
Installation Instructions
and Owner's Manual
VTC/VTH Series
20292301
Advertisement
Table of Contents
Related Manuals for Amana VTC Series
Summary of Contents for Amana VTC Series
- Page 1 Single Package Vertical Air Conditioner/Heat Pump Installation Instructions and Owner’s Manual VTC/VTH Series The Single Package Vertical Unit is a compact, through the wall pack- aged HVAC system that can be ducted to individual rooms. It’s slim 20” wide design uses minimal floor space and installs in a closet having an exterior wall. Conditioned air from a single unit can be ducted to multiple rooms.
-
Page 2: Table Of Contents
Contents Unit Features ............... 3 Unit Location ............... 3 Transportation Damage ..........3 Unit Accessories ............3 Installation Instructions ..........4 Wiring ................5 Operating Instructions ..........6 System Checks ............7 Care and Cleaning ............8 Obtaining Service ............8 Wiring Diagram ............ -
Page 3: Unit Features
1. Make notation on delivery receipt of any visible dam- Unit Features age to shipment or container. 2. Notify carrier promptly and request an inspection. 3. In case of concealed damage, carrier must be notified This unit has many features which are different than those as soon as possible—preferably within 5 days. -
Page 4: Installation Instructions
• Ensure a minimum clearance of three (3) inches around Installation Instructions the unit for adequate airflow. • Ensure the condensate drain is unobstructed and leak- free. To ensure that the unit operates safely and efficiently, it must be installed, operated and maintained according to NOTE: The wall sleeve has a 3/4 NPT nipple located in the these installation and operating instructions and all local bottom for connection to the drain. -
Page 5: Wiring
UNIT INSTALLATION 1. Lift the unit onto the base of the sleeve and slide the unit forward until it is 1/2” away from the top inside edge of the sleeve to engage the seal. Ensure the unit is completely seated on all four sides against the wall sleeve seals. -
Page 6: Operating Instructions
The unit comes with a factory-supplied quick disconnect, Operating Instructions however, the contractor is responsible for providing over current protection on the branch circuit. Refer to the unit wiring diagram for single point electrical connection. Operation of the unit is automatic and will provide heating These units are provided with a Class 2 transformer for 24 and cooling depending on the setting of the thermostat. -
Page 7: System Checks
System Checks COOLING/ELECTRIC HEAT UNITS POINT CHECK ACTION Set thermostat system switch to OFF position. None. Unit does not come on. Set fan switch to ON. Indoor blower operates after random reset timer cycle is complete. Set fan switch to AUTO Indoor blower de-energizes. -
Page 8: Care And Cleaning
Care and Cleaning Obtaining Service PERIODIC MAINTENANCE Clean the outdoor coil of foreign material such as lint, dust, In the unlikely event this unit requires repair or servicing leaves or other obstructions as necessary. beyond what is covered in this manual, contact an autho- rized service organization. -
Page 9: Wiring Diagram
Wiring Diagram EVAP. COND. MOTOR MOTOR COMPRESSOR HEATER 1 CAP OFF ANY UNUSED SPEED TAPS BLUE COND EVAP EVAP COMP HTR2 HTR1 A FACTORY SUPPLIED JUMPER IS PLACED BETWEEN FD AND RC AND MUST BE REMOVED WHEN INSTALLING THE FRONT DESK SWITCH. 208-240V-1PH-60HZ DISCONNECT OUTDOOR COIL...
