COMBINATION DRAIN KIT (DK9001D)
Description
This kit is used to control condensate from the unit. Conden-
sate water drains from the chassis into the sleeve during
normal heat pump operation and during times of high
humidity when the unit is in cooling operation. The drain kit
allows the condensate from the outdoor and indoor coils to
be routed to a suitable area. It can be installed for either
outdoor or indoor use. For outdoor use, the condensate can
be drained from either the right- or left-hand side of the wall
sleeve. Local codes will determine the proper condensate
disposal. For indoor use, the drain components must be
installed on the bottom of the wall sleeve and connected to
a drain system inside the building.
NOTE: This drain kit serves only as a link between the unit
and field-supplied condensate drain system. Installing the
kit without connecting it to a drainage system will result in
inadequate condensate removal, possible leakage and
corrosion.
ALGAECIDE: Most algaecide products will cause damage
to the unit basepan or coils and should not be used. Contact
your sales representative for the recommended algaecide
pan treatment for your unit.
The drain components for outdoor use must be installed
before the wall sleeve condenser grille.
1. Remove the rear enclosure panel and the sleeve stiff-
ener. These items can be removed from the inside of
the building.
2. Insert the 1/2" drain fitting in the opening of the outdoor
drain fitting gasket and plate. Secure this assembly into
the holes located on the rear of the wall sleeve using
two of the outdoor mounting screws provided.
3. Place the remaining outdoor gasket on the outside
blank-off plate and secure the assembly to the left rear
of wall sleeve with the two mounting screws provided.
Unit chassis installed immediately
Install the condenser grille to wall sleeve with hardware
provided. See condenser grille installation instructions.
Unit chassis installed later
Replace the rear enclosure panel in the wall sleeve to
protect the inside of the building from weather damage.
The installation and servicing of the equipment should be done by
Part No. A3494906 (1)
PTAC
I
NSTALLATION
For outdoor or indoor sleeve drainage
Installation for Outdoor Use
qualified experienced technicians.
I
NSTRUCTIONS
Indoor
Mtg. Screws
Qty: 2
Outdoor
Drain Fitting
Plate

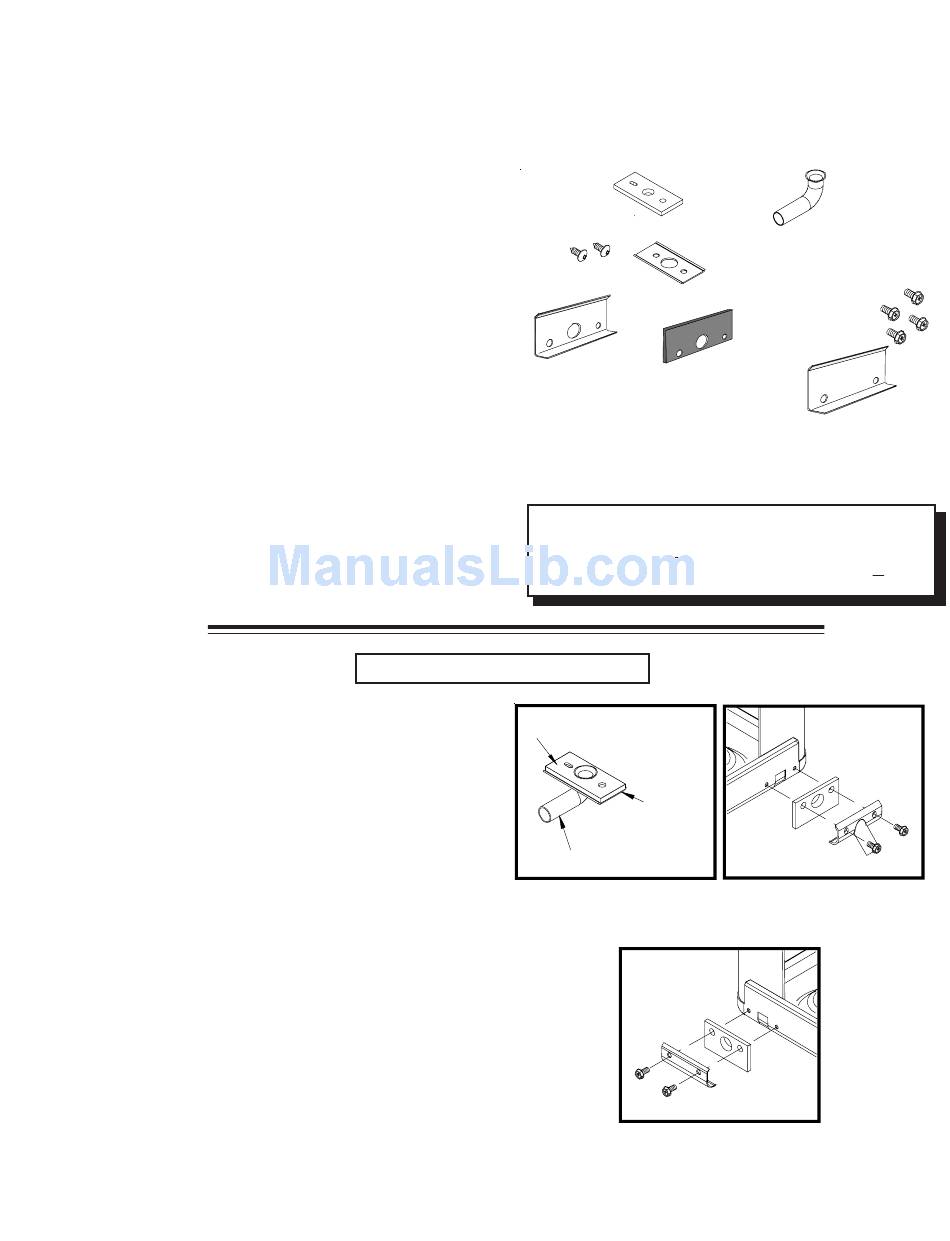

Drain Kit Components
USE ONLY WS900B WALL SLEEVES WITH DK9001D.
DO NOT INSTALL THIS DRAIN KIT ON WS900D WALL
SLEEVES!
Outdoor Drain
Fitting Gasket
Outdoor
Drain Fitting
Plate
1/2" Drain Fitting
Outdoor Drain Fitting
Left Blank-Off
Indoor
Drain Fitting
Drain
Gasket
Fitting
Indoor
Outdoor
Drain Fitting
Mtg. Screws
Plate
Qty: 4
Outdoor
Drain Fitting
Gasket
Qty: 2
Outdoor
Blank-Off Plate
NOTE
September 2003
