Amana SUBBASE KIT Installation Instructions

PTAC SUBBASE KIT I
ATTENTION INSTALLING PERSONNEL: As a professional installer you have an obligation to know the product better than the
customer. This includes all safety precautions and related items. Prior to actual installation, thoroughly familiarize yourself with this
Instruction Manual. Pay special attention to all safety warnings. Remember, it is your responsibility to install the product safely and
to know it well enough to be able to instruct a customer in its safe use. Most dealers have a list of specific good safety
practices...follow them. The precautions listed in this Installation Manual are intended as supplemental to existing practices.
However, if there is a direct conflict between existing practices and the content of this manual, the precautions listed herein take
precedence.
The subbase may be installed on the wall sleeve before or after installing the wall sleeve. The subbase is prewired. Electrical
connections can be made on the left side after the access cover is removed. A grounding screw is provided.
NOTE: The wall sleeve must be installed a minimum of 3¼ inches above a finished floor and a minimum of 2¾ inches from a
finished wall.
To avoid the risk of property damage, personal injury or death

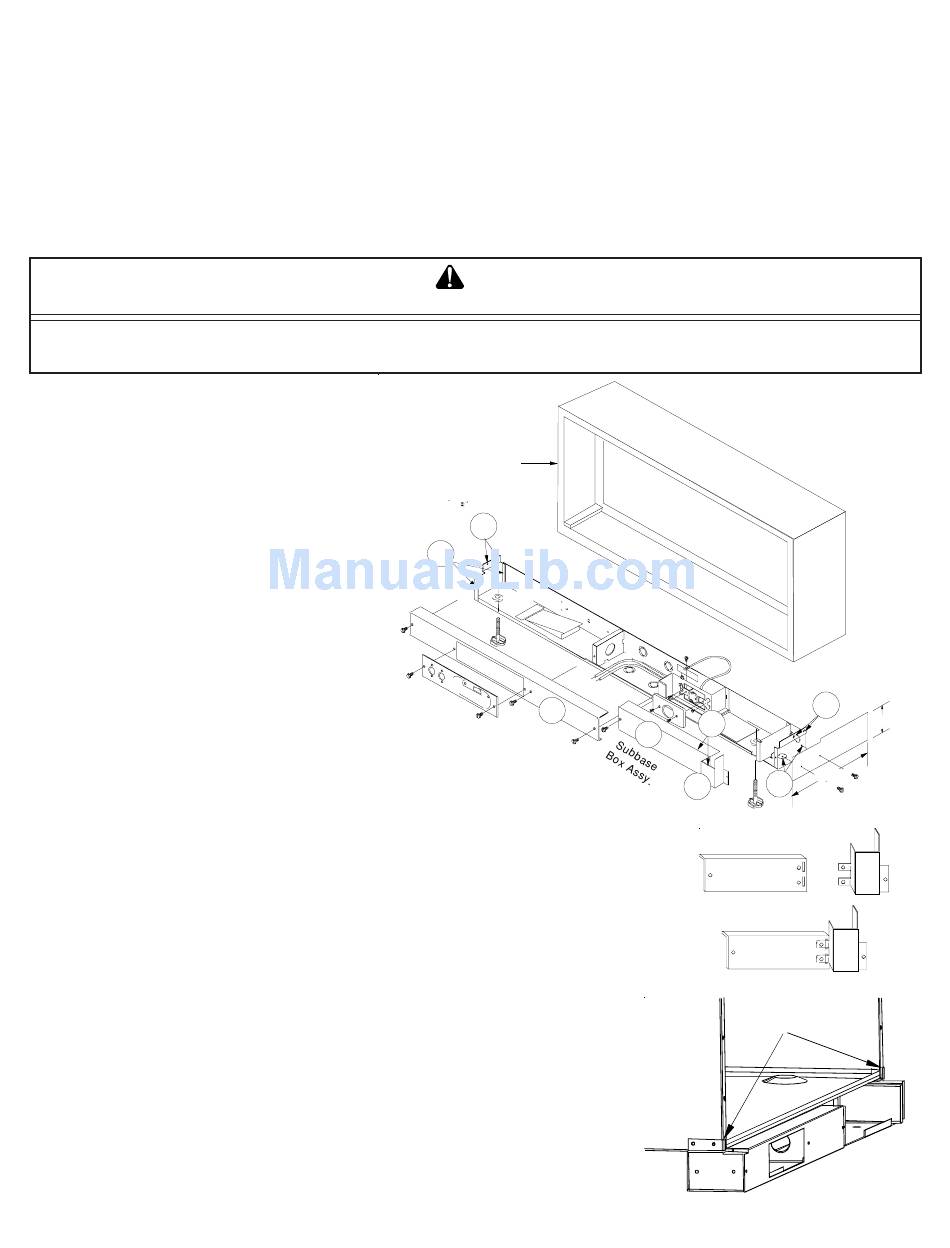

Subbase Assembly
Part/Location Identification
A Left Front Cover
B Right Front Panel
C Front Cord Panel
D Wall Sleeve Hole Location
E Skirting Hole Location
Z Right Front Cover Assembly
IMPORTANT NOTE: To avoid equipment dam-
age, use copper conductors only.
The installation and servicing of this equipment must be performed by
NOTE:
qualified, experienced technicians only.
1. Remove (B) and (C) from the subbase and join together using two metal screws
provided. This assembly now becomes the right front cover (Z) of the subbase.
2. Position subbase under the front of the wall sleeve. Locate by aligning flanges
on the subbase to the wall sleeve.
When positioned correctly, the subbase will extend 1-7/16" past the front of the
wall sleeve.
3. Drill four 1/8-inch holes in wall sleeve to line up with holes in subbase (D). Mount
subbase to wall sleeve with four sheet metal screws provided with kit (D).
4. Remove the left front cover from the subbase (A).
5. Position skirting on each side of wall sleeve to prevent the entry of foreign mate-
rials. Trim skirting to desired length. Attach skirting with four sheet metal screws
provided with kit (E).
6. Wire subbase for appropriate voltage (seeWiring Diagram).
NOTE: The proper subbase must be ordered to obtain the correct electrical re-
ceptacle (see NEMA Plug Configurations).
7. After wiring is complete, mount covers A and Z to the subbase with provided
screws.
8. When installing optional accessories to the subbase, refer to each installation
instruction for that accessory.
Part No. 11113807
Printed in USA
NSTALLATION
WARNING
PERSONAL RISK HAZARD
due to electrical shock, disconnect
before working on this product
Wall
Sleeve
D
E
Cover
Wiring
Access
I
NSTRUCTIONS
.
A
Z
B
C
Low Voltage
Compartment
the electrical power
IMPORTANT NOTE: Sub-
base should extend 1-7/16"
past wall sleeve flange. .
D
3"
11-3/4"
E
C
+
B
=
Z
LOCATE FLANGE ON SUBBASE
AGAINST WALL SLEEVE FLANGE.
January 2005
