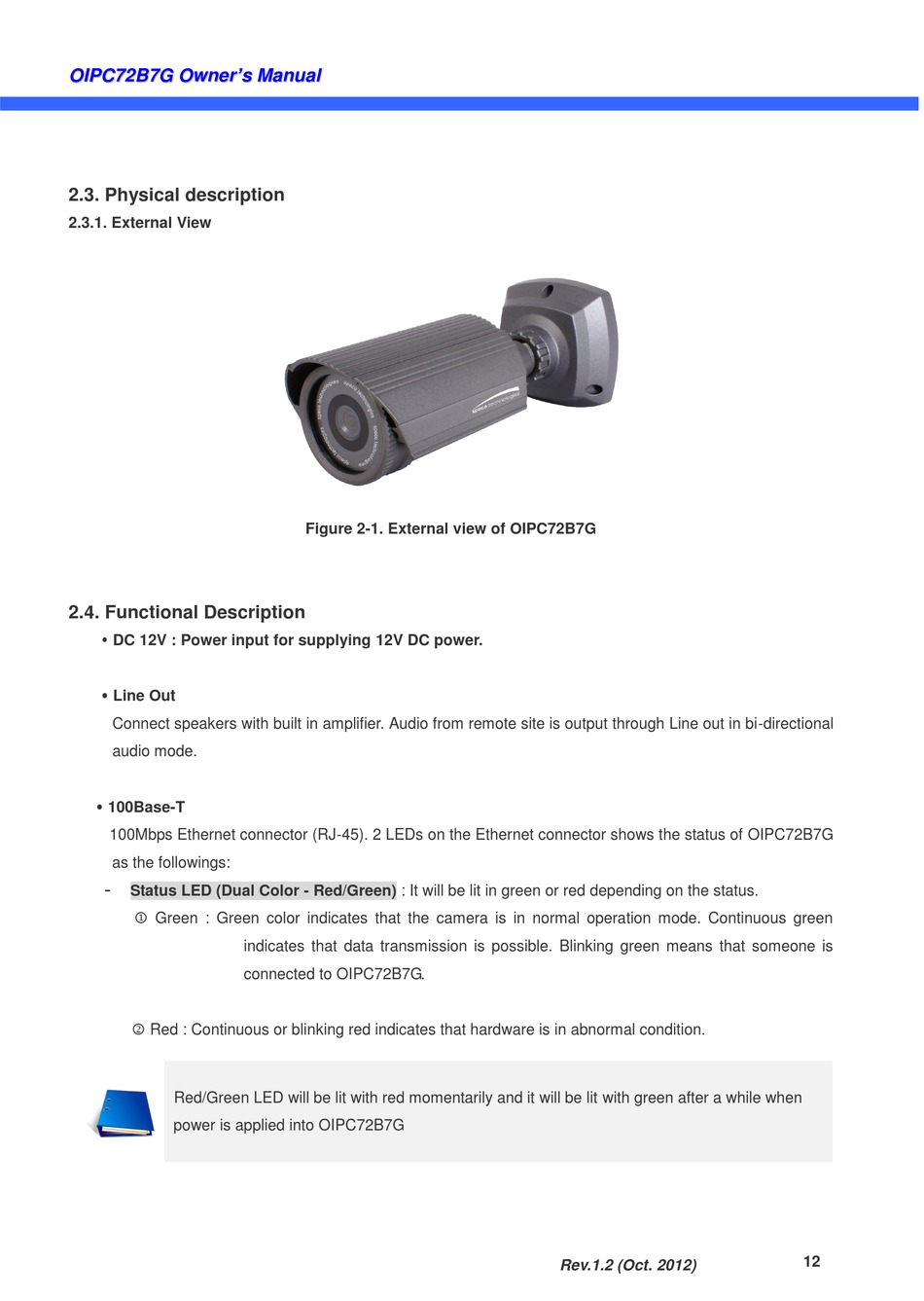

2.3. Physical description

2.3.1. External View

2.4. Functional Description

 DC 12V : Power input for supplying 12V DC power.
 Line Out
Connect speakers with built in amplifier. Audio from remote site is output through Line out in bi-directional
audio mode.
 100Base-T
100Mbps Ethernet connector (RJ-45). 2 LEDs on the Ethernet connector shows the status of OIPC72B7G
as the followings:
-
Status LED (Dual Color - Red/Green) : It will be lit in green or red depending on the status.
 Green : Green color indicates that the camera is in normal operation mode. Continuous green
 Red : Continuous or blinking red indicates that hardware is in abnormal condition.
Red/Green LED will be lit with red momentarily and it will be lit with green after a while when
power is applied into OIPC72B7G
M a n u a l
M a n u a l
Figure 2-1. External view of OIPC72B7G
indicates that data transmission is possible. Blinking green means that someone is
connected to OIPC72B7G.
Rev.1.2 (Oct. 2012)
