Summary of Contents for Speco O8D7M

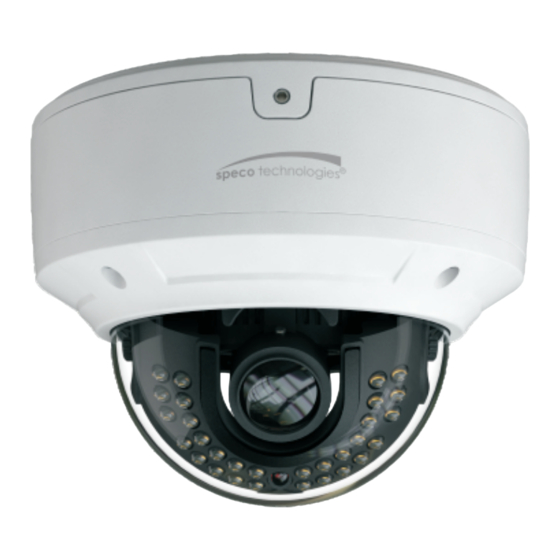

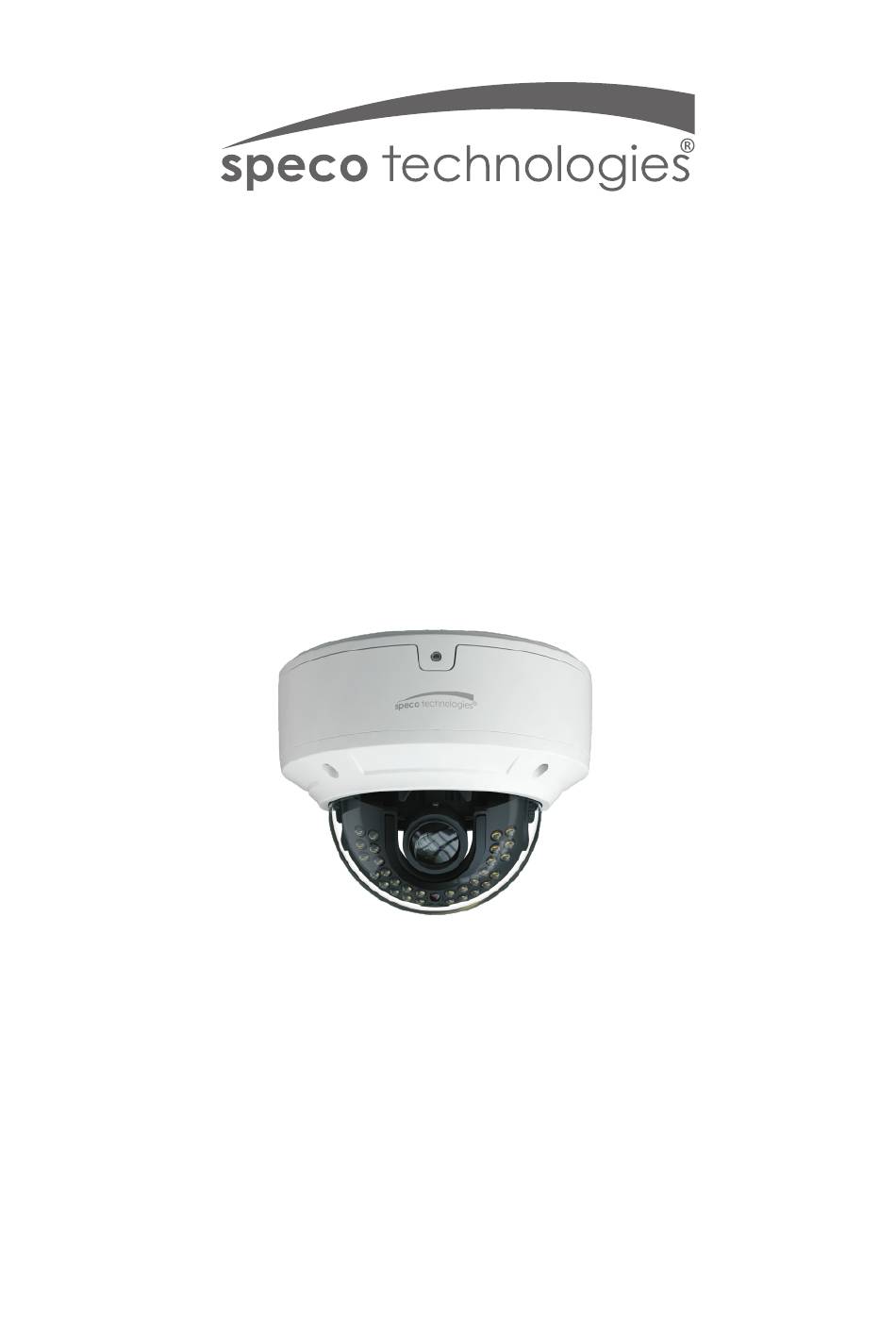

- Page 1 Quick Start Guide O8D7M...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Camera Quick start guide 4 tapping screws PA 4×25 Drill template ×4 Plastic plug CVBS&DC Screwdriver Junction box IN cables Overview Overview Ethernet connector MIC input (3.5mm) Line out (3.5mm) Analog output (BNC) Alarm input/output DC power connector Lock screw Microphone Micro SD card slot 10 Reset hole...
-
Page 5: Connecting Network Cable
1--ALM-COM 2--ALM-OPEN 3--ALM-INA 4--ALM-GND DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ①... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the upper cover of the junction box. Then install junction box onto the wall by using the screws provided. Upper Cover ②... - Page 7 ③ Loosen the screws to open the lower dome and then loosen the lock screw to remove the mounting base. Lock Screw Mounting Base Lower Dome ④ Install the mounting base onto the junction box. Then connect the cables and fix the dome to the mounting base with the lock screw.
- Page 8 ⑤Three-axis Adjustment-Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle. Tilt 0°~77° Pan 0°~360° Rotation 0°~360° ⑥ Install the lower dome back to the camera and fix it with the screws. Web Operation and Login IP Scanner can search for the device on the local network.
- Page 9 5C:F2:07:24:68:9A O8D7M ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
