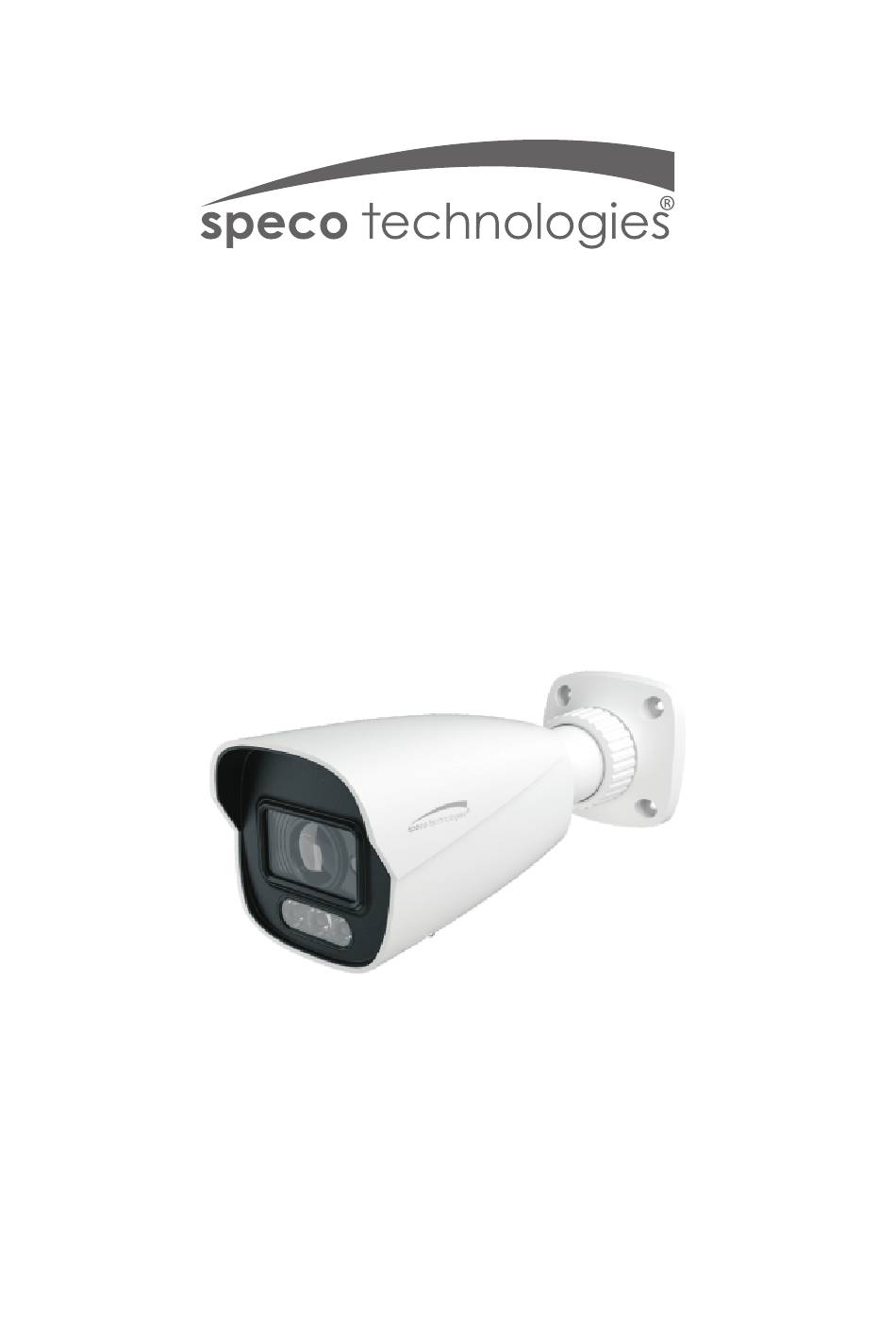

- Page 1 Quick Start Guide O4BDD1...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.

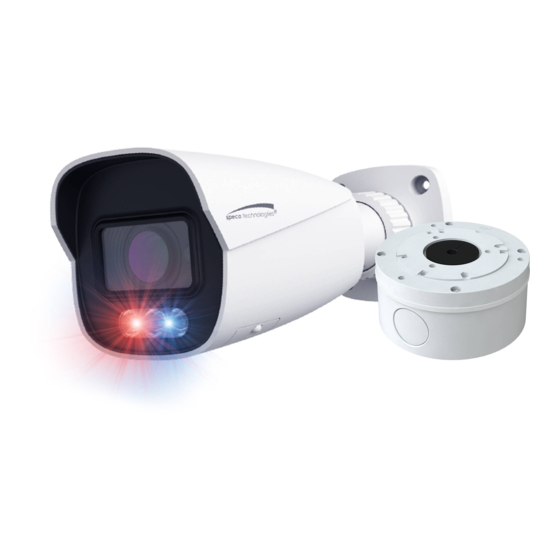

- Page 4 Camera Quick start guide Drill Template 4 tapping screws × 4 Plastic plug Rubber plug Junction box 1 machine screw Overview Overview Ethernet connector Fixed ring Mounting base Audio input connector Micro SD card slot Alarm input/output Power connector Reset Speaker...
-
Page 5: Connecting Network Cable
1--ALARM-COM 2--ALARM_OPEN 3--ALARM_INA 4--ALARM_GND DC12V * 1 It is recommended to install the water-proof connector for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ①... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover ②... - Page 7 Rubber plug ④ Connect the cables and then i nstall the camera onto the junction box as shown below. ⑤ Bracket Adjustment-Loosen the fixed ring to adjust the view angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation.
- Page 8 Fixed Ring Pan 360° Tilt 90° Web Operation and Login IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ②...
- Page 9 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins if prompted.
