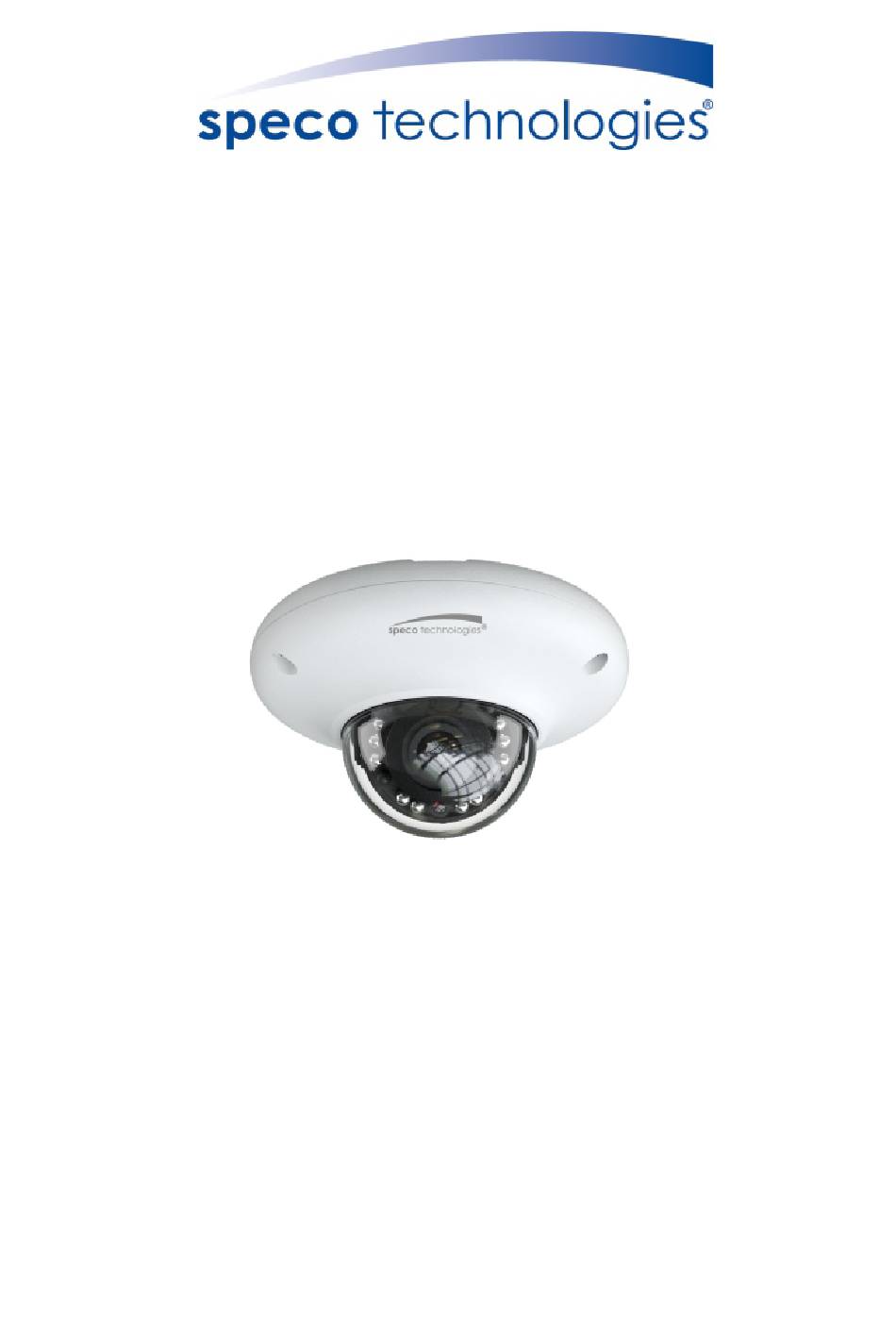

  • Page 1 Quick Start Guide O4MD3...
  • Page 2 Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■...
  • Page 3 Camera Quick start guide 2 tapping screws PA 4×25 Screwdriver ×2 Plastic plug Wall mounting bracket Drill template Overview Overview Ethernet connector DC power connector Micro SD card slot CVBS connector Reset MIC in connector...
  • Page 4 DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②...
  • Page 5 Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and bracket. ① Loosen the lock screw of the bracket and then remove the mounting base from the bracket. Mounting base Lock screw ②...
  • Page 6 ④ Fix the mounting base of the bracket onto the wall with the screws. ⑤ Connect the cables. Then attach the bracket onto the mounting base and fasten them with the lock screw. ⑥Adjust the camera to obtain an optimum angle . Before adjustment, preview the image of the camera on a monitor.
  • Page 7 ⑦ Install the lower dome back to the camera with the screws. Web Operation and Login IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network.
  • Page 8 O4MD3 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
