A
E
PPENDIX
R
B
I
ETAINING
RACKET
NSTALLATION
The CF Scan Card comes with a retaining bracket designed to secure it into the Socket
SoMo handheld computer.
Note: Removing the screws and card slot cover of the SoMo to install the retaining bracket
will not void the existing warranty on a SoMo device.

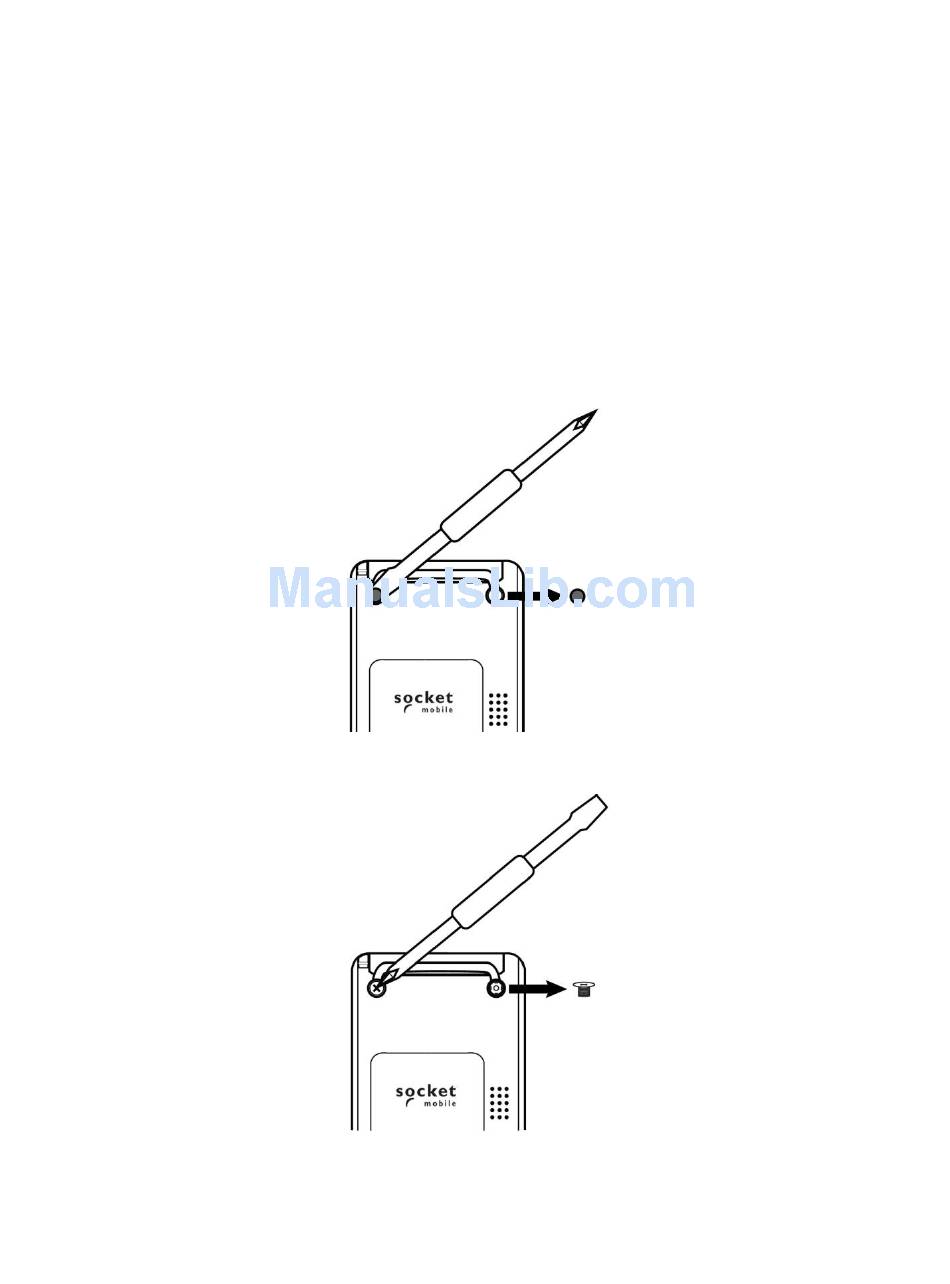

1. Remove the card slot cover built into the SoMo. Use a flat head screwdriver to pry off
the two rubber screw caps on the back of the SoMo.
2. Use a Phillips screwdriver to remove the two screws.
32 | A
F: R
B
I
PPENDIX
ETAINING
RACKET
NSTALLATION
