LX WIRELESS MICROPHONE SYSTEM COMPONENTS
Your LX Wireless Microphone System features a MARCAD
ty receiver operating in the VHF band between 169 and 240 MHz. Up to 12 LX wireless
systems can be operated simultaneously in a single installation. Each LX system in-
cludes:
• LX1 Body-Pack Transmitter, with your choice of instrument cable or micro-
phone,
or
• LX2 Hand-Held Microphone-Transmitter with your choice of interchangeable
microphone heads:
- SM58
- BETA 58
- SM87 supercardioid condenser microphone
- BETA 87 supercardioid premium condenser microphone
and one of the following half-rack size receivers:
• LX3 Receiver
or
• LX4 Diversity Receiver
- Both single and dual rack-mounting hardware
- One antenna (LX3 systems) or two antennas (LX4 systems)
- One of the following ac power adapters: PS40, PS40E, or PS40UK.
®
cardioid dynamic microphone
®
supercardioid premium dynamic microphone
LX3
RF
LX4
RF A

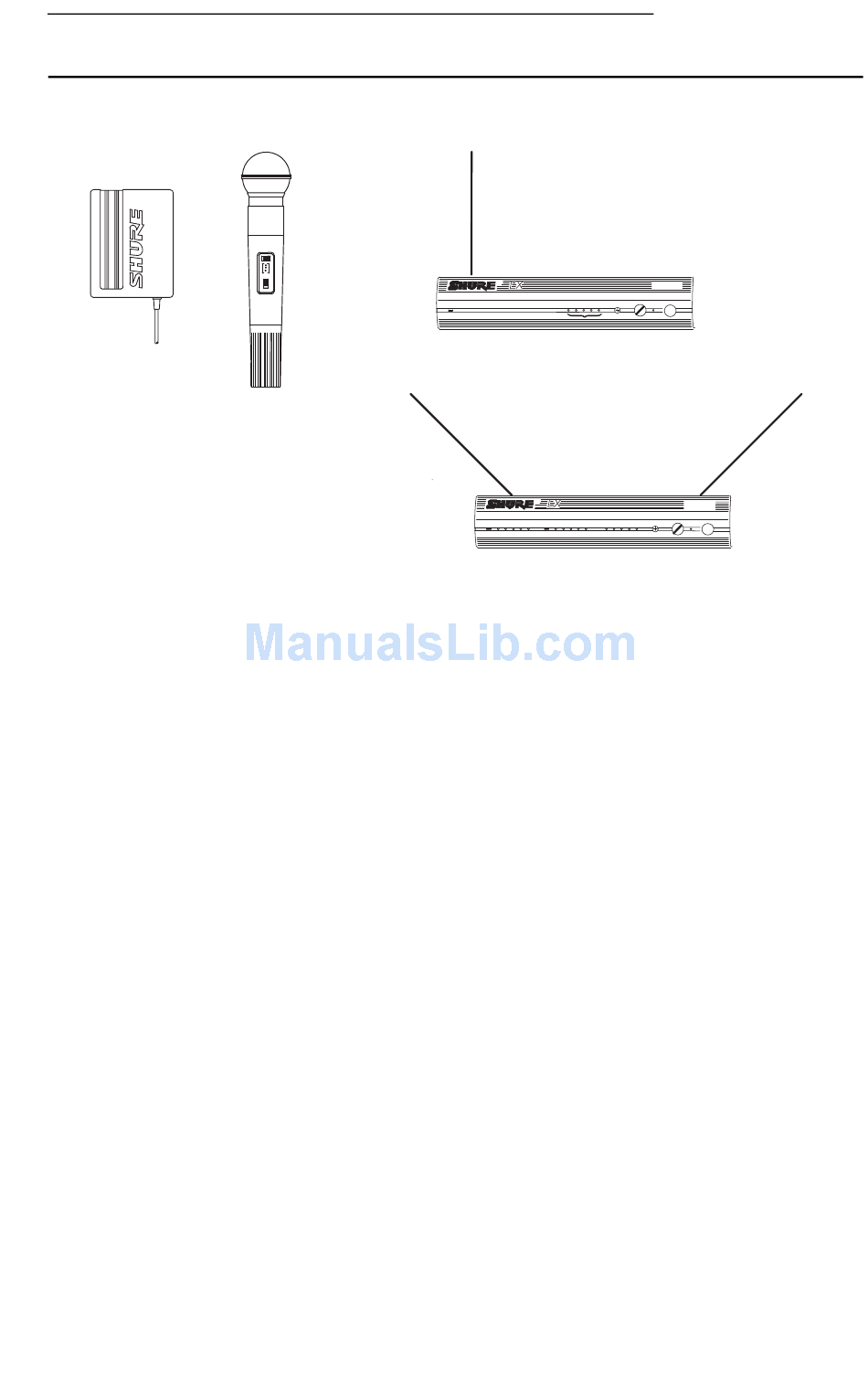

FIGURE 1
LX Wireless System
WIRELESS
RECEIVER
SQUELCH LEVEL POWER
AUDIO
MARCAD
DIVERSITY
SQUELCH LEVEL POWER
RF B AUDIO
®
fixed frequency diversi-
