Page 1: Instruction Manual

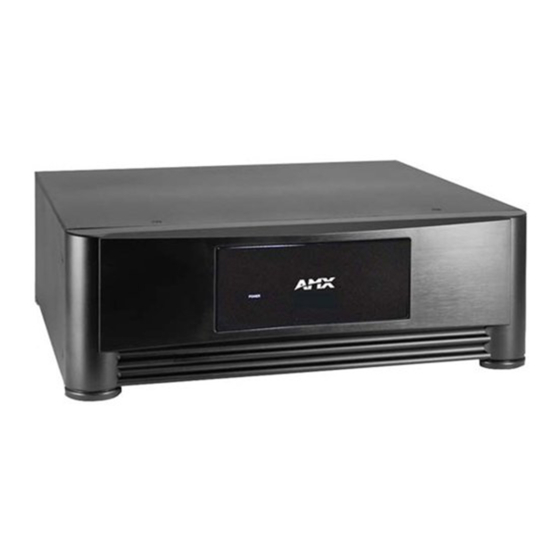

PLB-AS8 8 x 8 Stereo Audio Switcher L a n d m a r k P r o d u c t s... - Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
-
Page 3: Safety Instructions
Safety Instructions Safety Instructions There are no user-serviceable parts inside the PLB-AS8. Opening the PLB-AS8 may void your warranty and expose you to dangerous voltages. 1. Read Instructions - Read all of the safety and operating instructions before operating the product. - Page 4 (FIG. 1). Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information regarding proper grounding of the mast and supporting structure, grounding of the lead-in wire to the antenna discharge unit, size of grounding PLB-AS8 8 x 8 Stereo Audio Switcher...
- Page 5 23. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 24. Heat - The product should be situated away from heat sources, such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. PLB-AS8 8 x 8 Stereo Audio Switcher...
- Page 6 Safety Instructions PLB-AS8 8 x 8 Stereo Audio Switcher...
-
Page 7: Table Of Contents
Connection and Power-Up Procedure................2 PHASTLink Ports ......................3 Line-Level Inputs ....................... 3 Line-Level Outputs ......................3 Note on Intercoms ......................3 PHASTLink Cable Information ................5 Building a Double 120-ohm Terminator................6 PhastLink Connections...................... 7 PLB-AS8 8 x 8 Stereo Audio Switcher... - Page 8 Table of Contents PLB-AS8 8 x 8 Stereo Audio Switcher...
-
Page 9: Product Information
Each PLB-AS8 Audio Switch provides 8 audio zones. Intercom capabilities are limited to one Audio Switch, with a maximum of 8 intercom zones (out). Landmark software does not limit the number of Audio Switches in a system, although switching all zones on multiple Audio Switches will slow down the switch response time. -
Page 10: Plb-As8 Specifications
2. Plug the PLB-AS8 power cord into a properly matching and grounded 115 or 230 VAC outlet. 3. Turn the PLB-AS8 on. The power switch is located at the right side of the rear panel. On power-up, 8 "zone-active" LEDs display at the center of the front panel. -
Page 11: Phastlink Ports
Product Information PHASTLink Ports There are two PHASTLink ports on the left side of the rear panel of the PLB-AS8. Usually you will use only one, but the second port allows you to daisy chain the Audio Switch to other PHASTLink devices, such as additional Landmark Audio Switches or Audio Amplifiers. - Page 12 Product Information PLB-AS8 8 x 8 Stereo Audio Switcher...
-
Page 13: Phastlink Cable Information
PHASTLink Cable Information PHASTLink Cable Information This section contains information that you will need to make PHASTLink cables, plus general information on connecting PHASTLink devices. PHASTLink cables are used to connect all PHASTLink-compatible devices, including keypads, dimmers, J-box IR devices, amplifiers, audio switches, etc. PHASTLink uses a standard 10BaseT connection (i.e. -
Page 14: Building A Double 120-Ohm Terminator
PHASTLink Cable Information To other PHASTLink devices (up to 500 mA total, or 10 devices - whichever comes first) Up to 15 PHASTLink connections to a PLB-CF10 Cardframe - up to 500 mA per port (add PHAST hubs for more connections). PLB-CF10 Cardframe FIG. -
Page 15: Phastlink Connections
PHASTLink Cable Information PhastLink Connections FIG. 5 shows how PHASTLink and HubLink ports are connected in a Landmark system. PLB-CF10 CardFrame HubLink PLH-RPT Hub HubLink PHASTLink Device PHASTLink Device Terminate the unused port PLH-MIC Hub HubLink PHASTLink PHASTLink Terminate the unused port FIG. - Page 16 DALLAS, TEXAS • LOS ANGELES, CALIFORNIA • MEXICO CITY, MEXICO • ONTARIO, CANADA • PHILADELPHIA, PENNSYLVANIA • SHANGHAI, CHINA • SINGAPORE • TAMPA, FLORIDA • WESTERLO, BELGIUM • YORK, ENGLAND 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
