AMX NXA-PDU-1508-8 Installation Manual

Overview

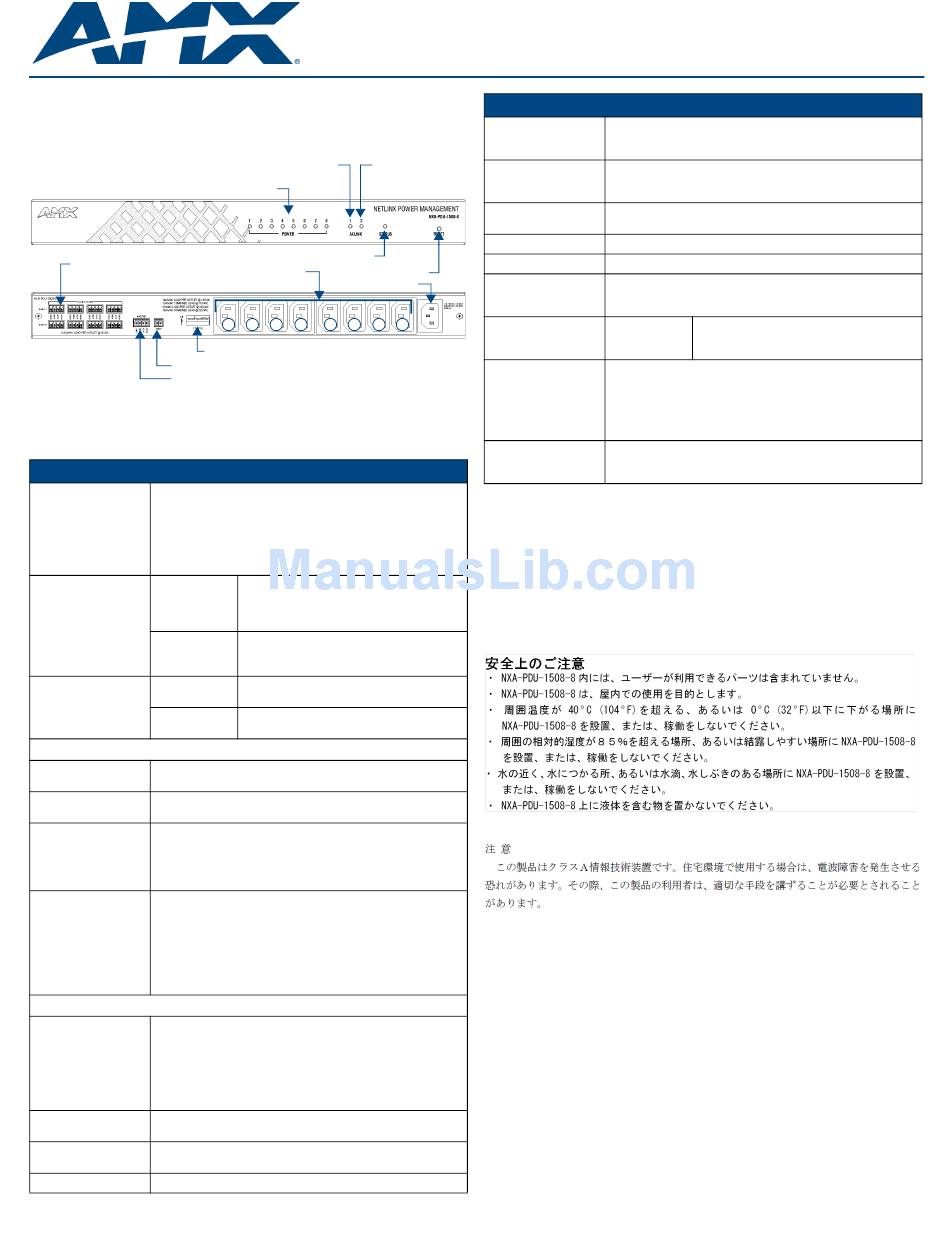

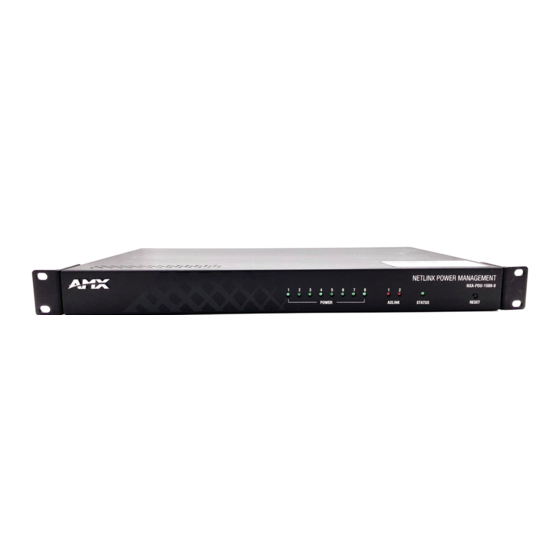

The NXA-PDU-1508-8 Power Distribution Unit (FG673-01) provides switching of mains
power to each of eight ACRMS 2020 power outlets. The two built-in AxLink bus strips provide
connectivity (AxLink data / power) for up to eight AxLink connections.
POWER (Output 1-8 Status) LEDs
AXLINK POWER Connectors
top = BANK 1 (1-4)
bottom = BANK 2 (5-8)
CONFIG DIP Switch
TEMP (RTS) Input Connector
MASTER AxLink Connector (to NetLinx Master Controller)
FIG. 1
NXA-PDU-1508-8
Note: AMX recommends no more than 4 PDUs per master, due to AxLink addressing and
bus traffic.
Product Specifications
NXA-PDU-1508-8 Specifications
Power: • Powered via 110-220 VAC, 50/60Hz mains power on an
IEC-320 C-14 connector
Note: The PDU auto-
• Required voltage = 110 to 220 VAC, 50/60Hz
senses the voltage of the
• Total Combined Current (including AxLink):
supplied power.
10A at 220V-240V
12A at 110V-120V
• Idle power draw: 1.0W max
AC Current: • 110-120VAC:
• 220-240VAC:
Overcurrent • 110-120VAC:
Notification:
• 220-240VAC:
Front Panel Components:
POWER LEDs Eight green LEDs illuminate to indicate that the associated Power
(1-8): Outlet (#1 - #8) is in use.
AXLINK Power Status Two red LEDs illuminate to indicate when the associated AxLink Bus
LEDs: Strips (Bank 1 or Bank 2) on the PDU are in use.
AXLINK STATUS LED: Green LED illuminates to indicate AxLink communication activity
between the PDU and the NetLinx Master:
• ON - power, no master connection
• OFF - no power
• Blink - powered, communicating with master
RESET pushbutton: The RESET pushbutton serves as a momentary reset switch for the
MASTER AxLink power connection, as well as a reset switch for the
PDU itself:
• Press/hold for 3 seconds: Resets the MASTER AxLink power
connection (minimum 0.5 second toggle). Note: A master powered
externally from the PDU will not be reset by the RESET pushbutton.
• Press/hold for 17 seconds: Resets the PDU (similar to a full power-
cycle of the unit).
Rear Panel Components:
AXLINK POWER A 13.5VDC, 6.5A power supply is provided for AxLink power.
connectors (8):
Eight 3.5mm (4-pin) AxLink captive-wire connectors provide power
and data for up to eight AxLink connections.
• AxLink power is switched in two banks of four outputs each.
BANK 1 contains AxLink connectors 1-4
BANK 2 contains AxLink connectors 5-8
• The PDU provides up to 6.5A total across all AxLink outputs.
MASTER connector 3.5mm Phoenix (4-pin) AxLink connector provides connectivity to the
NetLinx Master (always on).
TEMP (RTS) input: 3.5mm Phoenix (2 pin) connector provides connection to a Remote
Temperature Sensor (RTS).
CONFIG DIP Switch: Eight-position DIP switch sets the AxLink device address.
NXA-PDU-1508-8
AxLink BANK 1 AxLink BANK 2
Power Status LED Power Status LED
AxLink STATUS LED
Power Outlets 1-8 RESET pushbutton
Power Inlet
8 7 6 5 4 3 2 1
Input: 15A Regulatory Derated Input Current
(North America)12A @ 110 VAC
10A Max Load Per Outlet @ 110VAC
12A Max Combined Load @ 110VAC
Input: 10A @ 220 VAC
8A Max Load Per Outlet @ 220VAC
10A Max Combined Load @ 220VAC
Single Outlet: 10A
Overall: 12A
Single Outlet: 8A
Overall: 10A
Power Distribution Unit (110V/220V)
NXA-PDU-1508-8 Specifications (Cont.)
Power Outlets (8): • Connector Type: IEC C-13, 12A/10A
• Maximum allowable current on a single high-voltage output:
10A@110VAC / 8A@220VAC
Power Inlet (1): • Connector Type: IEC C-14, 12A/10A
110-120VAC: 12A Input
220-240VAC: 10A Input
Dimensions (HWD): • 1 3/16" x 17" x 9 11/16" (2.97cm x 43.18cm x 24.54 cm)
• 1 RU
Weight: 9 lbs (4.08 kg)
Enclosure: Steel, black powder coated finish
Environmental: • Operating Environment: 0°C - 40°C (32°F - 104°F)
• Storage Environment: -10°C - 60°C (14°F - 140°F)
• Relative Humidity: 5% - 85%, non-condensing
Certifications: • CE
• CB Scheme
• UL
Included Accessories: • Power Cord, NEMA 5-15P TO C13, 15A, 14/3, 6' (64-0673-01)
Note: See Power Cord Requirements below for details.
• ENV-VST-TSO, Temperature Sensor (FG2050-22)
• (2) Removable mounting brackets
• (9) 4-pin, 3.5mm captive-wire connectors (41-5047)
• (1) 2-pin captive-wire connector (41-5026)
Other AMX Equipment: • ENV-VST-TSF, Flush Mount Temperature Sensor (FG2050-21)
• CC-C13-C14: C13 to C14 Power Cable (FG10-673-01)
• CC-C14-NEMA: C14 to NEMA Power Cable (FG10-673-02)
SAFETY INSTRUCTIONS
• There are NO user serviceable parts within the NXA-PDU-1508-8.
• The NXA-PDU-1508-8 is intended for indoor use only.
• DO NOT install or operate the NXA-PDU-1508-8 in an area where the ambient
temperature exceeds 40ºC (104ºF) or falls below 0ºC (32ºF).
• DO NOT install or operate the NXA-PDU-1508-8 in an area in which the ambient
relative humidity exceeds 85% or an area that is prone to condensation.
• DO NOT install or operate the NXA-PDU-1508-8 near water or in a location which may
be prone to water seepage, dripping or splashing.
• DO NOT place objects containing liquids on the NXA-PDU-1508-8.
FIG. 2
SAFETY INSTRUCTIONS
FIG. 3
CLASS A NOTIFICATION
Power Cord Requirements
The NXA-PDU-1508-8 ships with a power cord, except to those countries which prohibit the
shipment of the power cord selected. When selecting a power cord for use in Japan, please
consider the following:
The NXA-PDU-1508-8 requires a type VCTF or HVCTF and 1.25 or 2.0 sq.mm jacketed
power cord with connectors and plugs that are 125V-12A or 125V-15A rated should be used.
Rack-Mounting
Note: For safety, the PDU should be installed near the socket-outlet providing power (which
must be easily accessible by the PDU's power cord).
Before rack mounting the PDU, pay particular attention to the following factors:
• Temperature: Since the temperature within a rack assembly may be higher than the
ambient room temperature, check that the rack-environment temperature is within the
specified operating temperature range.
• Mechanical Loading: Do not place any equipment on top of a rack-mounted unit.
• Circuit Overloading: Be sure that the supply circuit to the rack assembly is not
overloaded.
• Grounding: Rack-mounted equipment should be properly grounded. Particular
attention should be given to supply connections other than direct connections to the
mains.
Installation Guide
• FCC
• CSA
• C-Tick
