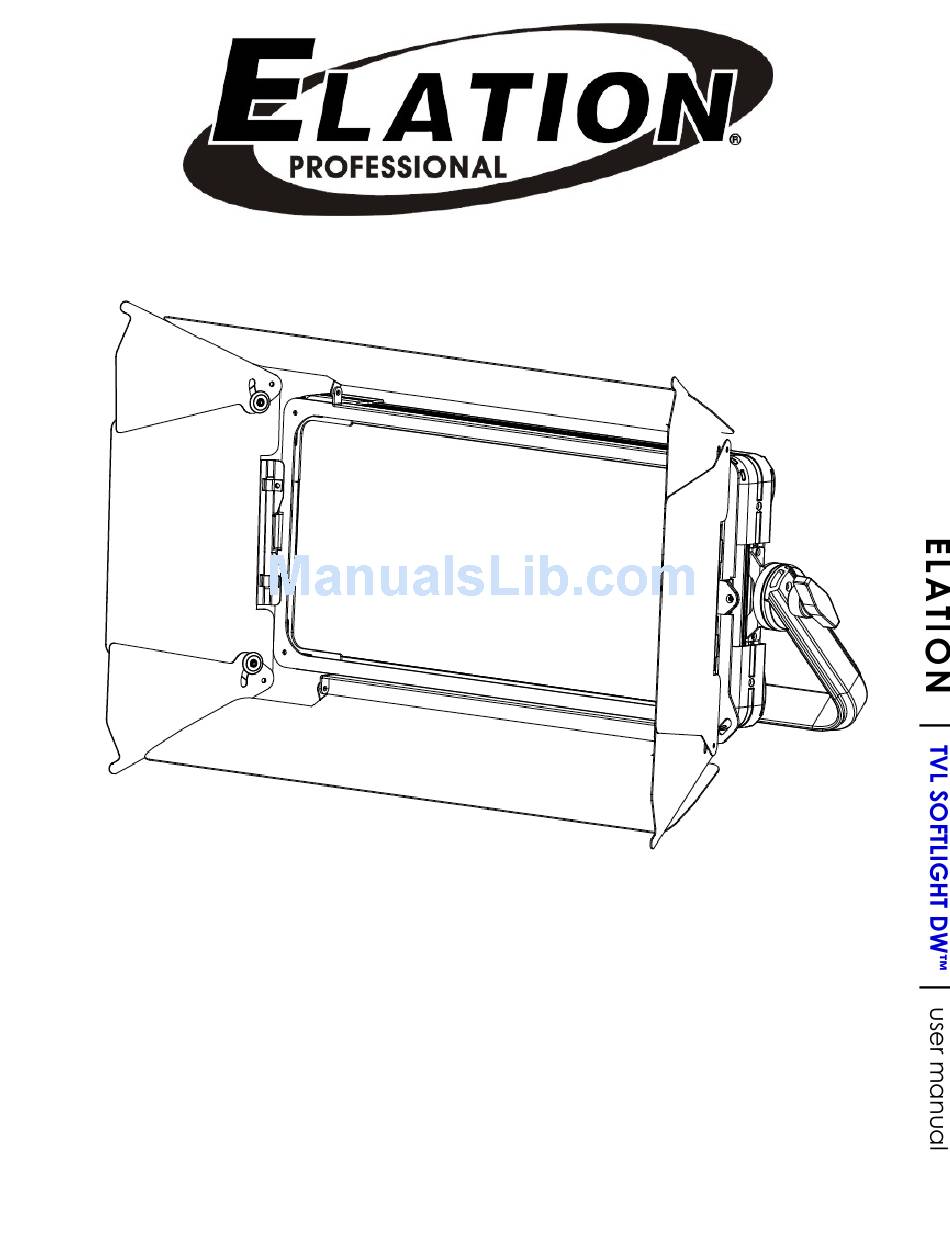

- Page 1 TVL SOFTLIGHT DW™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions and Guidelines Fixture Overview Barn Door Installation Fixture Installation Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories TVL SOFTLIGHT DW™ User Manual... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS Barn Door Barn Door Safety Cable Fixture Safety Cable powerCON TRUE1 Cable TVL SOFTLIGHT DW™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions And Guidelines
INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! TVL SOFTLIGHT DW™ User Manual... - Page 8 Use the original packaging and materials to transport the fixture in for service. L E D L I F E The average LED Life (hours) may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming. TVL SOFTLIGHT DW™ User Manual...
-
Page 9: Fixture Overview
LCD Menu Function Display MENU, UP, DOWN, ENTER Buttons DIMMER Dial (manual control) COLOR TEMPERATURE DIAL (manual control) powerCON TRUE1 IN FUSE (T5A) BATTERY Connection - NOT SUPPORTED AT THIS TIME 5pin DMX IN/OUT etherCON (RJ45) IN TVL SOFTLIGHT DW™ User Manual... -
Page 10: Barn Door Installation
4. Secure each screw by hand first turning clockwise. 5. Tighten each screw with a screwdriver. DO NOT OVER TIGHTEN SCREWS! MAKE SURE BARN DOOR IS COMPLETELY SECURED TO FIXTURE BEFORE INSTALLING! ATTACH INCLUDED BARN DOOR SAFETY CABLE TO FIXTURE BEFORE INSTALLING! TVL SOFTLIGHT DW™ User Manual... -
Page 11: Fixture Installation
10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. TVL SOFTLIGHT DW™ User Manual... - Page 12 ALWAYS ATTACH A SAFETY CABLE TO THE BARN DOOR AND TO THE FIXTURE WHENEVER INSTALLING THIS IN A SUSPENDED ENVIRONMENT TO ENSURE THE BARN DOOR AND/OR THE FIXTURE WILL NOT DROP IF THERE IS A HARDWARE FAILURE. TVL SOFTLIGHT DW™ User Manual...
- Page 13 Cable. The fixture provides a built-in rigging point for a Safety Safety Cable on the back of the fixture as illustrated below. Be sure to only use the designated rigging point for the safety cable. SAFETY CABLE RIGGING POINT TVL SOFTLIGHT DW™ User Manual...
-
Page 14: Fixture Menu
MENU button 5 seconds to access the menu options once again The DIMMER and COLOR TEMPERATURE control dials are disabled by default. To enable, press and hold the ENTER button down for 3 seconds. TVL SOFTLIGHT DW™ User Manual... - Page 15 Control Cool White 0 - 255 Fixture Time 0 (hours) Fixture ≥CPU-A V 1.1 B 1.0 Fixture Information Information Firmware Version ≥CPU-B V 1.1 B 1.0 Factory No, Yes Reset to factory default settings Setting TVL SOFTLIGHT DW™ User Manual...
-
Page 16: Dmx Channel Functions And Values
LED ON MASTER DIMMER INTENSITY 0-255 Intensity 0 to 100% MASTER DIMMER INTENSITY FINE 0-255 Dimmer Intensity FINE Adjustment DIMMER CURVES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THRATRE 101-255 DEFAULT to UNIT CURVE SETTING TVL SOFTLIGHT DW™ User Manual... -
Page 17: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 18: Technical Specifications
Max Ambient Temperature 104°F (40°C) APPROVALS / RATINGS CE | RoHs | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. TVL SOFTLIGHT DW™ User Manual... - Page 19 . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA 6.6 ft 9.8 ft 13.1 ft 16.4 ft 130° Beam 28.5 13.00 42.7 17.2 56.4 21.5 70.5 Diameter COOL WHITE TVL SOFTLIGHT DW™ User Manual...
-
Page 20: Dimensional Drawings
. e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. TVL SOFTLIGHT DW™ User Manual... -
Page 21: Optional Accessories
NARROW CLAMP Heavy Duty Wrap Around Clamp SCABLE60 24” (610mm) 60 lbs. (27 kg) Rated Safety Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT005 5' (1.5m) CAT6 etherCON Cable Additional Cable Lengths Available TVL SOFTLIGHT DW™ User Manual...
